Gedore 8250-200 JC HD Combination Pliers
SKU: GED6707310B
6707310B
DESCRIPTION
Specifications
Shipping & Delivery
Gedore 8250-200 JC HD Combination Pliers
-
Acc. to DIN ISO 5746
-
For heavy continuous use
-
High leverage for easier work
-
Induction hardened precision cutting edges, extra long, cutting edge hardness 62 - 64 HRC
-
For round and flat material
-
For all wires, also hard wire/piano wire, 1.6 mm
-
GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
-
JC = chrome-plated, with 2-component handle covers
-
Forceps means 35% less effort
-
Gripping surface with file-cut for a particularly effective hold
-
Roughly toothed gripping surfaces for securely holding screws, pipes etc.
Discover the Gedore 8250-200 JC HD Combination Pliers at Mektronics Australia – your trusted source for quality tools and equipment!
Dimensions and weights
-
Total width [mm]: 53 mm
-
Total height [mm]: 23 mm
-
Total length [mm]: 200 mm
-
Nominal width [mm]: 53 mm
-
Nominal height [mm]: 23 mm
-
Nominal length [mm]: 200 mm
-
Net weight [kg]: 0,36 kg
Technical characteristics
-
Design non-sparking: No
-
Standard: DIN ISO 5746
-
Jaw shape [mm]: flat jaws
-

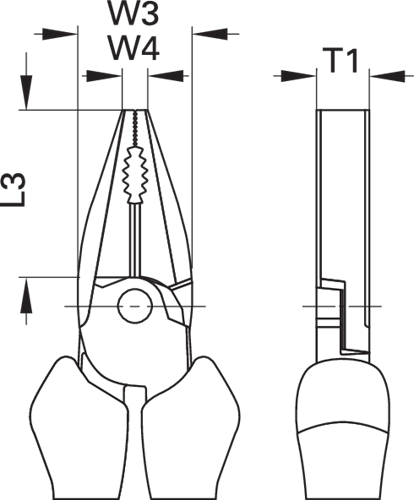

Jaw length L3 [mm]: 39,5 mm
-
Bevel: with
-
Joint types: inserted joint
-
Handle design: 2C
-
Handle colour: blue
-
Hardening process: Induction hardened
-
Width of head 1 [mm]: 27,0 mm
-
Head thickness [mm] T1: 12,4 mm
-
Material: Heat-treated steel
-
Compliance: compliant
-
Blade shape: with facet
-
Hardness of cutting edge: 62 - 64 HRC
-
Cutting values: Piano wire: 2,2 mm / 11 AWG Hard wire: 2,8 mm / 9 AWG Medium hard wire: 3,8 mm / 7 AWG Soft wire: 6 mm / 3 AWG Cu cable, multi wire cross section: 25 mm² Multi-wire cable Ø: 13 mm
-
Width of centres W4 [mm]: 6,5 mm
