Gedore 1B 1.1/16" Imperial Combination Spanner
SKU: GED600660C
600660C
DESCRIPTION
Specifications
Shipping & Delivery
Gedore 1B 1.1/16" Imperial Combination Spanner
-
Design in accordance with DIN 3113, form B, ISO 3318, ISO 7738
-
With same size each end
-
Chrome-vanadium steel 31CrV3, chrome-plated
-
Satin non-glare finish
-
Carefully forged and professionally machined
-
Ring: cranked and 10° angled, with UD profile for gentle power transmission, from SW 1.3/8" 12-edge ring
-
Jaw: ground precisely to exact nominal size for optimum contact areas
-
Slim ribbed open end for added strength guarantees maximum torques
-
Overloading indicated by deformation
-
The offset ring ensures a better grip on deep-seated or inset nuts or bolts
-
Top-grade industrial quality for the hardest of continuous use
Discover the Gedore 1B 1.1/16" Imperial Combination Spanner at Mektronics Australia – your trusted source for quality tools and equipment!
-

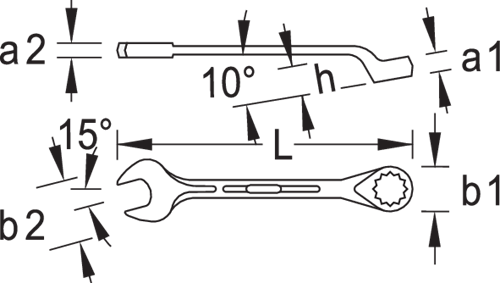

Width of head 1 [mm]: 39,0 mm
-
Width of head 2 [mm]: 58 mm
-
Head height 1 [mm]: 17,5 mm
-
Head height 2 [mm]: 10,5 mm
-
Height of offset 1: 33 mm
-
Material: 31CrV3
-
Mouth position 1: 15°
-
Surface: chrome-plated
-
Ring profile: UNIT-DRIVE
-
Ring offset: 10°
-
Width across flats 1 [AF]: 1.1/16"
Dimensions & Weights
-
Total width [mm]: 55 mm
-
Total height [mm]: 33 mm
-
Total length [mm]: 351 mm
-
Weight: 1,230 lbs
-
Nominal width [mm]: 55 mm
-
Nominal height [mm]: 33 mm
-
Nominal length [mm]: 352 mm
-
Net weight [kg]: 0,559 kg
