Image for Illustrative Purposes Only

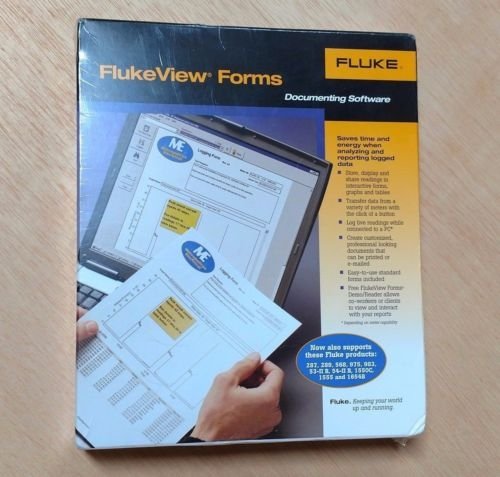

Flukeview Forms Software Upgrade - No Cable
SKU: FLUFVF-UG
FVF-UG
Features
Specifications
Shipping & Delivery
Expand the power of the world's most rugged, accurate handheld test tools with FlukeView® Forms Documenting Software.
To address the increasing demands for reporting and documentation, Fluke presents FlukeView Forms documenting software. FlukeView Forms increases the power of your Fluke tool by enabling you to document, store and analyze individual readings or series of measurements, then convert them into professional-looking documents.
Several versions of the product are available, depending upon the type of cable needed to download data from your instrument and depending upon the data reporting capability you need. FlukeView Forms offers two levels of capability: FlukeView Forms Basic, and FlukeView Forms plus Designer. FlukeView Forms Basic can be used alone to download measurement data and create reports that can be saved and printed. FlukeView Forms plus Designer allows a user to edit an existing form or create a new form to customize the report to individual needs. A common edit might add a company logo and title. See the [Features] tab on this page for more information.
| Capabilities | FlukeView® Forms Basic | FlukeView® Forms plus Designer |
| Transfer data points from your meter to your PC | X | X |
| Number of standard forms | 2 | 9 |
| Able to modify standard forms | No | Yes |
| Includes FlukeView® Forms Designer for customizing forms | No | Yes |
| Number of multiple meters whose data can be viewed simultaneously | 1 | 8 |
| Number of concurrently running instances of FlukeView Forms allowed | 1 | 4 |
| Ability to change company name on report | No | Yes |
| Supports multi-page forms | No | Yes |
FlukeView Forms supports the following test tools:
-
Fluke 1550B MegOhmMeter
-
Fluke 1653 / 1653B / 1654B / 1652C Electrical Installation Tester
-
Fluke 180 series
-
Fluke 287 and 289
-
Fluke 45
-
Fluke 53-II B and 54-II B
-
Fluke 568 IR Thermometer
-
Fluke 789 ProcessMeter
-
Fluke 8808A
-
Fluke 8845A/8846A
-
Fluke 89-IV and 87-IV
-
Fluke 975 AirMeter Test Tool
-
Fluke 983 Particle Counter
The ability of FlukeView Forms to support multiple instruments enables the user to install and learn only one software application in order to use these multiple tools fully.
Select the appropriate model number below based upon your requirements:
| Model Number | Overview | Cable | Application Level |
| FVF-UG | Software only upgrade, from FVF Basic to FlukeView Forms plus Designer** | No Cable included | FlukeView Forms plus Designer |
| FVF-SC2 | Fluke 280 Series, 53-II B and 54-II B, 789, 1550B, 1653, 180 Series* | USB / IR | |
| FVF-SC4 | Fluke 8808A, 8845A, 8846A, 45* | USB / Serial | |
| FVF-BASIC | Fluke 280 Series, 789, 1550B, 1653, 180 Series* | USB / IR | FlukeView Forms BASIC |
| FVF-SC5 | Software only** | No Cable included |
* Obsolete
** For all instruments listed in table
You can expand the power of your Fluke Test Tools by upgrading from FlukeView Forms Basic with the FlukeView® Forms Software Upgrade.
With the FlukeView® Forms Software Upgrade you can:
Instantly review and compare data from up to 6 different meters on the same document - providing analysis capabilities that a meter alone can't provide.
Use the array of Upgraded analysis and reporting forms to display your data in tables, graphs or helpful diagrams;even leave notes on the forms to draw attention to a particular event.
Or use the FlukeView® Forms plus Designer to customize your reports or add your company logo.
Discover the Flukeview Forms Software Upgrade - No Cable at Mektronics Australia – your trusted source for quality tools and equipment!
|
Operating system for FlukeView Forms |
Windows 2000, Windows XP, Windows Vista or Windows 7 |
|
Minimum PC Hardware |
Pentium class or better microprocessor |
Administrator Privileges required to install software on Windows 2000, XP, or Windows Vista
|
Size |
203 x 100 x 50 mm |
|
Weight |
545 g |
