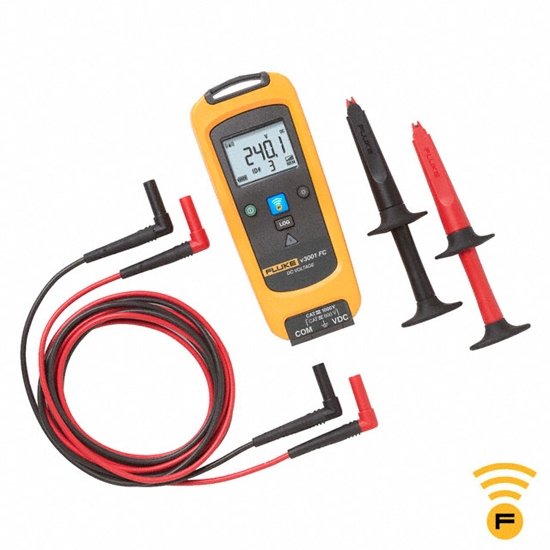

Image for Illustrative Purposes Only
Fluke v3001 FC Wireless DC Voltage Module
SKU: FLUFLK-V3001FC
FLK-V3001FC
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Fluke v3001 FC Wireless DC Voltage Module
All the facts, right in the field. The is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.
Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the v3001 FC wireless DC voltage module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.
Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
Don't get bogged down while isolating intermittent electrical faults
Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected. We've solved that problem with Fluke Connect – leave your remote modules connected to log measurements and walk away to address other issues. You can then download the data for further analysis.
Work safely near electrical panels while wearing less PPE
Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in. With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.
Picture having the ability to access live readings without being exposed to the live panel. It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more v3001 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.
Discover the Fluke v3001 FC Wireless DC Voltage Module at Mektronics Australia – your trusted source for quality tools and equipment!
The is fully functional DC voltage meter that wirelessly relays DC voltage measurements to other Fluke Connect® enabled master units, listed below:
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
With the you can:
- Measure up to 1000 VDC
- Use as a standalone meter or as part of the system
- Use the logging function for recording and saving up to 65,000 readings
- Fluke v3001 Voltage Module
- TL222 Test Leads
- AC220 Alligator Clips
- Magnetic hanging strap
| Voltage Specifications | ||
| Function | ||
| mV DC | Range¹ / resolution | 600.0 mV / 0.1 mV |
| Accuracy | 0.09% + 3 | |
| VDC | Range¹ / resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | 0.09% + 3 | |
| Range¹ / resolution | 1000 V / 1 V | |
| Accuracy | 0.15% + 2 | |
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).All ranges are autoranging. Accuracy is specified from the range obtained by autoranging, from 18°C to 28°C. | ||
| General Specifications | ||
| LCD w/ backlight | 3 ½ digits, 6000 counts, 4/sec update rate | |
| Battery type | 2 AA Alkaline batteries, NEDA 15A, IEC LR6 | |
| Log rate/interval | Adjustable by PC from 1 sec to 1 hr, default 1 min | |
| Battery life | 400 hours minimum | |
| Memory | Record up to 65,000 readings | |
| RF communications | 2.4 GHz ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m | |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Temperature coefficient | 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) | |
| Relative humidity | 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C), 0% to 45% (40°C to 50°C) |
|
| EMC | IEC 61236–1, Portable | |
| Safety compliance | IEC 61010–1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2 | |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE | |
| Ingress Protection (IP) rating | IP42 | |
| Size (H x W x D) | 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in) | |
| Weight | 0.255 kg (9 oz) | |
| Warranty | Three years | |
| Not compatible with Fluke CNX test tools | ||
