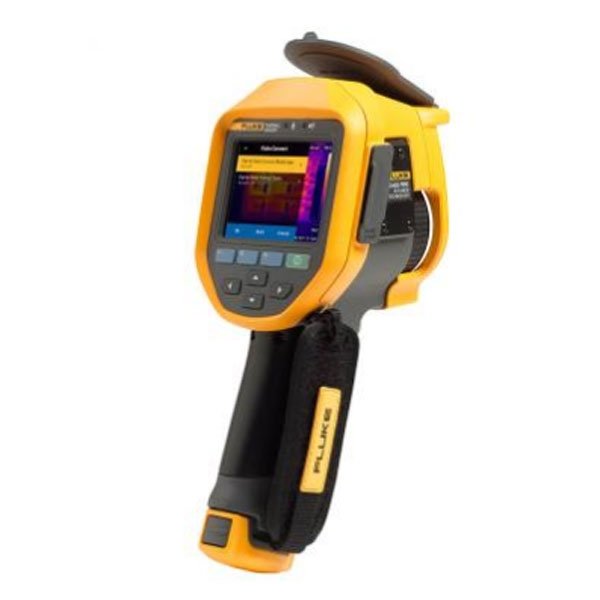

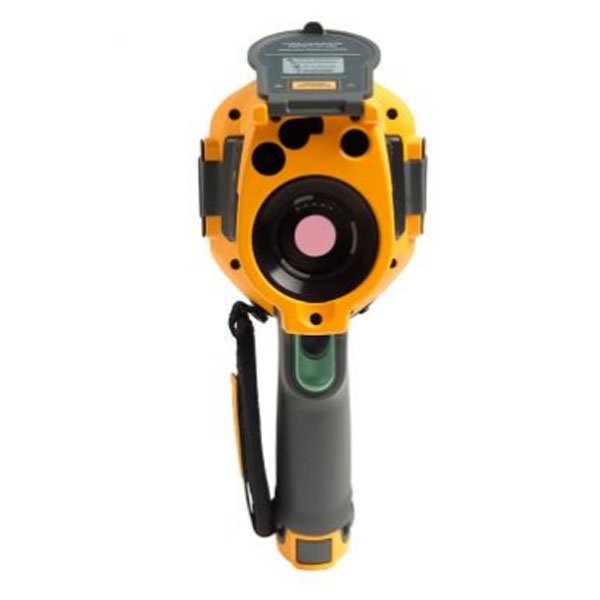

Fluke Ti480 PRO Infrared Camera 60HZ
Fluke Ti480 PRO Infrared Camera 60HZ
Image for Illustrative Purposes Only
Fluke Logo

Fluke Ti480 PRO Infrared Camera 60HZ

SKU: FLUFLK-TI480PRO60HZ

FLK-TI480PRO60HZ

$18,852.00

EX. GST
$20,737.20
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Inclusions
Specifications
Resources
Shipping & Delivery

Fluke Ti480 PRO Infrared Camera 60HZ

  • Capture smaller temperature differences with increased thermal sensitivity

  • Sharper onscreen images with better visual color differentiation

  • Display deviations from standard temperatures and communicate issues with your team using multiple Delta-T markers - choose one as a reference point and the others to display a value as a difference

  • Multiple rectangle markers in-camera - identify min/max temperatures for an area of the equipment or an equipment array

  • Distinguish heat differences more easily with a new palette and a wider array of yellows and greens in the display

  • Improved, user-tested, touch screen interface leverages current styles and is more intuitive than ever

  • Now compatible with all Fluke infrared smart lenses

  • Macro, telephoto and wide angle – from tiny to large, capture your target

  • Fluke smart lenses are interchangeable between compatible cameras without calibration

With the Ti480 PRO MultiSharp™ focus captures images that are focused throughout the field of view, even if you start from a completely blurry target. The camera takes multiple images and combines them to give a clear, accurate focus on targets near and far. See more detail with SuperResolution, offering 4x the pixel data. Using the software and SuperResolution you can view images with up to 1280 x 960 resolution.

You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach it to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.

Discover the Fluke Ti480 PRO Infrared Camera 60HZ at Mektronics Australia – your trusted source for quality tools and equipment!

  • Increased sensitivity to visualize temperature differences

  • Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes

  • More intuitive visual interface, improved, user-tested, touch screen interface

  • More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility

  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus

  • Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.

  • Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image

  • Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order

  • Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations

  • Thermal imager with standard infrared lens

  • AC power supply and battery pack charger (including universal AC adapters)

  • Two, rugged lithium ion smart battery packs

  • USB cable

  • HDMI video cable

  • 4 GB micro SD card

  • Rugged, hard carrying case

  • Soft transport bag

  • Adjustable hand strap

  • Available by free download Fluke Connect® SmartView® desktop software and users manual

Key features
IFOV with standard lens (spatial resolution) 0.93 mRad, D:S 1065:1
Detector resolution 640 x 480
SuperResolution Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
Infrared Resolution 307,200 pixels
MultiSharp™ Focus  Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus  Yes, for consistently in-focus images
Laser distance meter  Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus  Yes
Ruggedized touchscreen display  3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use  Yes
Digital zoom  2x and 4x



Temperature measurement
Temperature measurement range (not calibrated below -10 °C)  ≤-10 °C to 1000 °C (14 °F to 1832 °F)
Accuracy  ±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)* ≤0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction  Yes (both value and table)
On-screen reflected background temperature compensation  Yes
On-screen transmission correction  Yes
*Best possible



Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible  Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect® Assets optional software Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
Fluke Connect® Instant Upload  Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect® tool compatible Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen



IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode  Min, Mid, Max IR plus full visible on camera; continously variable in software
Picture-In-Picture (PIP) Yes
Built-in digital camera (visible light) 5 MP



Lenses
Standard lens IFOV (spatial resolution) 0.93 mRad, D:S 1065:1
Field of view 34 °H x 24 °V
Minimum focus distance 15 cm (approx. 6 in)
IR-Fusion® technology Picture-In-Picture and full screen
Optional 2x telephoto smart lens IFOV (spatial resolution) 0.65 mRad, D:S 1529:1
Field of view 12 °H x 9 °V
Minimum focus distance 45 cm (approx. 18 in)
IR-Fusion® technology Picture-In-Picture and full screen
Optional 4x telephoto smart lens IFOV (spatial resolution) 0.33 mRad, D:S 2941:1
Field of view 6 °H x 4.5 °V
Minimum focus distance 45 cm (approx. 18 in)
IR-Fusion® technology Picture-In-Picture and full screen
Optional wide-angle smart lens IFOV 2.62 mRad, D:S 377:1
Field of view  46 °H x 34 °V
Minimum focus distance  15 cm (approx. 6 in)
IR-Fusion® technology  Full screen



Level and span Smooth auto and manual scaling
Fast auto toggle between manual and auto modes  Yes
Fast auto-rescale in manual mode  Yes
Minimum span (in manual mode)  2.0 °C (3.6 °F)
Minimum span (in auto mode)  3.0 °C (5.4 °F)



Data storage and image capture
Extensive memory options  Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage
Image capture, review, save mechanism  One-handed image capture,review, and save capability
Image file formats  Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review  Thumbnail and fullscreen review
Software  SmartView® software - full analysis and reporting software and Fluke Connect® system
Export file formats with SmartView® software  Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation  60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required
IR-PhotoNotes™ Yes (5 images)
Text annotation  Yes
Video recording  Standard and radiometric
File formats video  Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Streaming video (remote display)  Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor
Remote control operation  Yes, through SmartView® software or Fluke Connect® mobile app
Auto capture (temperature and interval)  Yes



Battery
Batteries (field-replaceable, rechargeable)  Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life  2-3 hours per battery (*Actual life varies depending on settings and usage)
Battery charge time  2.5 hours to full charge
Battery charging system  Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation  AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving  User selectable sleep and power off modes



Color palettes
Standard palettes  9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes  9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted



General specifications
Frame rate  60 Hz or 9 Hz versions
Laser pointer  Yes
LED light (torch)  Yes
Color alarms (temperature alarms)  High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement Yes
Spot temperature  Hot and cold spot markers
User-definable spot markers  3 user-definable spot markers
Center box  Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band  7.5 μm to 14 μm (long wave)
Operating temperature  -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature  -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity  10% to 95% non-condensing
Safety  IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility  IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM  IEC 61326-1
US FCC  CFR 47, Part 15 Subpart C Sections 15.207, 15.209, 15.249
Vibration  0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6
Shock  25 g, IEC 68-2-29
Drop  Engineered to withstand 2 meter (6.5 feet) drop with standard lens
Size (H x W x L)   27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight (battery included) 1.04 kg (2.3 lb)
Enclosure rating IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard), extended warranties are available
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
