Fluke Ti401 PRO 9Hz Thermal Imager
SKU: FLUFLK-TI401PRO9HZ
FLK-TI401 PRO 9HZ
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

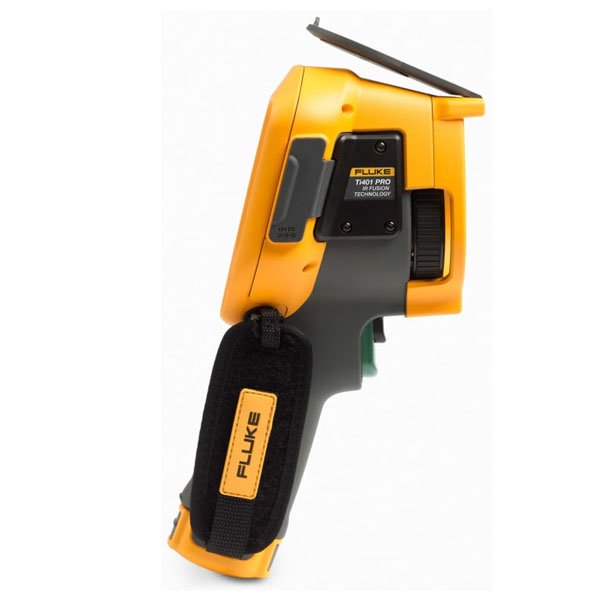

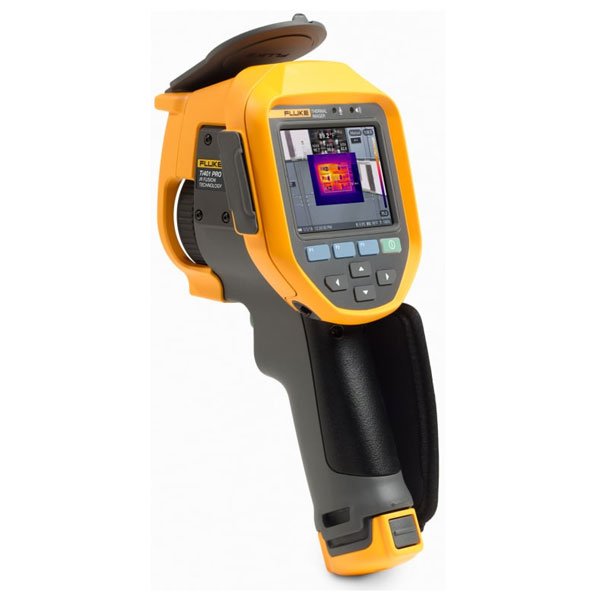

Fluke Ti401 PRO 9Hz Thermal Imager
Perform thermal imaging inspections with more confidence and faster results than ever before. With 640 x 480 resolution, Fluke Ti401 PRO offers the ruggedness and ease of use that you'd expect from Fluke along with sharper, crisper images and more exacting temperature measurements. The popular pistol-grip design allows for one-handed use. Never lose sight of an issue with the 3.5-inch (landscape) LCD screen. Stream infrared data and operate the camera remotely with Fluke Connect Desktop software.
Discover the Fluke Ti401 PRO 9Hz Thermal Imager at Mektronics Australia – your trusted source for quality tools and equipment!
-
In-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus.
-
See small details in the image and discover anomalies faster with up to 640 x 480 resolution images
-
See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology
-
Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software
-
Simply the best optics to transmit energy and produce high quality infrared images. Fluke uses only 100% diamond-turned germanium lenses with specialty coatings.
- Thermal imager with standard infrared lens
-
AC power supply and battery pack charger (including universal AC adapters)
-
Two, rugged lithium ion smart battery packs
-
USB cable
-
HDMI video cable
-
4 GB micro SD card
-
Rugged, hard carrying case
-
Soft transport bag
-
Adjustable hand strap
-
Available by free download Fluke Connect ® SmartView ® desktop software and users manual
|
Key features |
|
|---|---|
|
Infrared resolution |
640 x 480 (307,200 pixels) |
|
SuperResolution |
No |
|
IFOV with standard lens (spatial resolution) |
0.93 mRad, D:S 1065:1 |
|
Field of view |
34 °H x 24 °V |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
MultiSharp Focus |
No |
|
LaserSharp Auto Focus |
Yes, for consistently in-focus images. Every. Single. Time. |
|
Laser distance meter |
Yes, calculates distance to the target for precisely focused images and displays distance on screen |
|
Advanced manual focus |
Yes |
|
Wireless connectivity |
Yes, to PC, iPhone ® and iPad ® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
|
Fluke Connect app compatible |
Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
|
Fluke Connect Assets |
Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. |
|
Fluke Connect instant cloud upload |
Yes*, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
|
Fluke Connect instant server upload |
Yes** |
|
IR-Fusion technology |
Yes, adds the context of the visible details to your infrared image |
|
Ruggedized touchscreen display |
3.5 inch (landscape), 640 x 480 LCD |
|
Ergonomic design |
Pistol-grip design for one-handed use |
|
Thermal sensitivity (NETD)** |
≤0.075 °C at 30 °C target temp (75 mK) |
|
Level and span |
Smooth auto and manual scaling |
|
Touchscreen adjustable level/span |
Yes. Span and level can be easily and quickly set by simply touching the screen |
|
Fast auto toggle between manual and auto modes |
Yes |
|
Fast auto-rescale in manual mode |
Yes |
|
Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
|
Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
|
Built-in digital camera (visible light) |
5MP |
|
Frame rate |
60 Hz or 9 Hz versions |
|
Laser pointer |
Yes |
|
LED light (torch) |
Yes |
|
Digital zoom |
No |
|
Data storage and image capture |
|
|---|---|
|
Extensive memory options |
Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage |
|
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
|
Image file formats |
bmp, jpeg, is2 |
|
Memory review |
Thumbnail and full screen review |
|
Software |
Full analysis and reporting software with access to the Fluke Connect system |
|
Analyze and store radiometric data on a PC |
Yes |
|
Export file formats with Fluke Connect software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
|
Voice annotation |
60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required |
|
IR-PhotoNotes |
Yes - 2 images |
|
Text annotations |
Yes. Including standard shortcuts as well as user programmable options |
|
Video recording and formats |
No |
|
Remote control operations |
Remote display through Fluke Connect |
|
Auto capture (temperature and interval) |
No |
|
Battery |
|
|---|---|
|
Batteries (field-replaceable, rechargeable) |
Two lithium ion smart battery packs with five-segment LED display to show charge level |
|
Battery life |
2-3 hours per battery (actual life varies depending on settings and usage) |
|
Battery charging time |
2.5 hours to full charge |
|
Battery charging system |
Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
|
AC operation |
AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
|
Power saving |
User selectable sleep and power off modes |
|
Temperature measurement |
|
|---|---|
|
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +650 °C (-4 °F to +1,202 °F) |
|
Accuracy |
±2 °C or 2 % (at 25 °C nominal, whichever is greater) |
|
On-screen emissivity correction |
Yes (both value and table) |
|
On-screen reflected background temperature compensation |
Yes |
|
On-screen transmission correction |
Yes |
|
Line temperature graph |
No |
|
Color palettes |
|
|---|---|
|
Standard palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
|
Ultra Contrast palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
|
Smart lenses |
|
|---|---|
|
Macro-25 micron lens: 25 MAC2 |
Yes |
|
2 x telephoto lens: TELE 2 |
Yes |
|
4 x telephoto lens: TELE4 |
Yes |
|
Wide angle lens: WIDE 2 |
Yes |
|
General specifications |
|
|---|---|
|
Color alarms (temperature alarms) |
High temperature, low temperature, and isotherms (within range) |
|
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
|
Operating temperature |
-10 °C to +50 °C (+14 °F to +122 °F) |
|
Storage temperature |
-20 °C to +50 °C (-4 °F to +122 °F) without batteries |
|
Relative humidity |
10 % to 95 % non-condensing |
|
Center-point temperature measurement |
Yes |
|
Spot temperature |
Hot and cold spot markers |
|
User-definable spot markers |
No |
|
User defined measurement boxes |
1 expandable-contractible measurement box with MIN-MAX-AVG temp display |
|
Hard Case |
Rugged, hard carrying case; soft transport bag |
|
Safety |
IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
|
Electromagnetic compatibility |
IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
|
Australian RCM |
IEC 61326-1 |
|
US FCC |
CFR 47, Part 15 Subpart B |
|
Vibration |
0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
|
Shock |
25 g, IEC 68-2-29 |
|
Drop |
Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
|
Size (H x W x L) |
27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
|
Weight (battery included) |
1.04 kg (2.3 lb) |
|
Enclosure rating |
IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
|
Warranty |
Two-years (standard), extended warranties are available |
|
Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
|
Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
|
RoHS compliant |
Yes |
Please Note: Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor.
**Indicates Fluke Connect™ features that will be available soon.
