Image for Illustrative Purposes Only

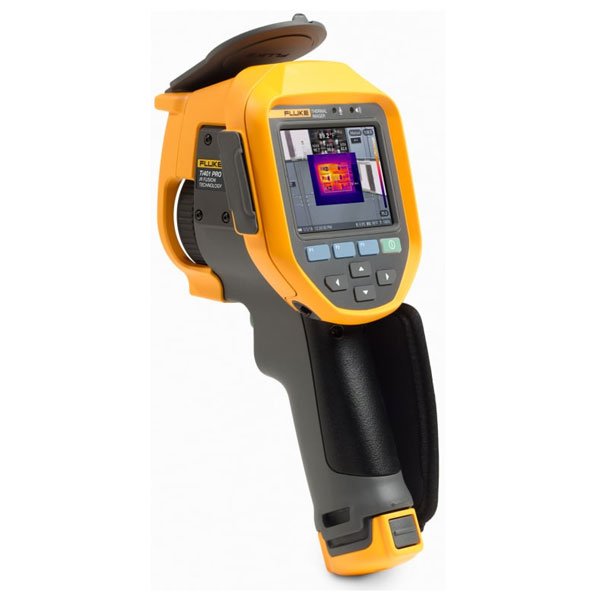

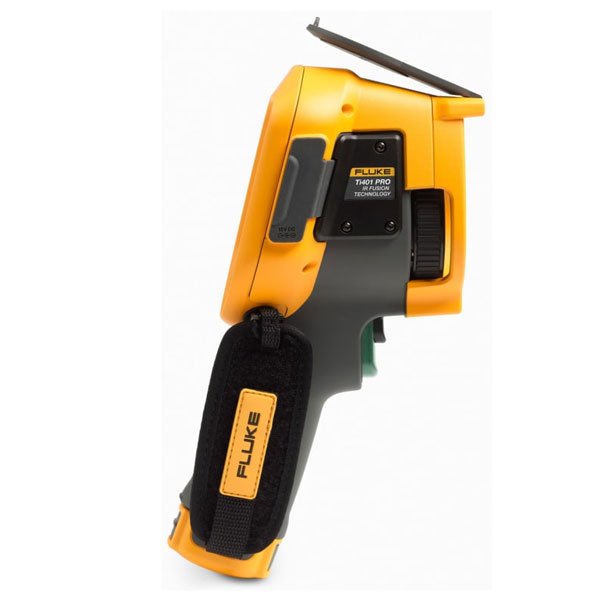

Fluke Ti401 PRO 60Hz Thermal Imager
SKU: FLUFLK-TI401PRO60HZ
FLK-TI401 PRO 60HZ
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
Fluke Ti401 PRO 60Hz Thermal Imager
Perform thermal imaging inspections with more confidence and faster results than ever before. With 640 x 480 resolution, Fluke Ti401 PRO offers the ruggedness and ease of use that you'd expect from Fluke along with sharper, crisper images and more exacting temperature measurements. The popular pistol-grip design allows for one-handed use. Never lose sight of an issue with the 3.5-inch (landscape) LCD screen. Stream infrared data and operate the camera remotely with Fluke Connect Desktop software.
Discover the Fluke Ti401 PRO 60Hz Thermal Imager at Mektronics Australia – your trusted source for quality tools and equipment!
-
In-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus.
-
See small details in the image and discover anomalies faster with up to 640 x 480 resolution images
-
See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology
-
Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software
-
Simply the best optics to transmit energy and produce high quality infrared images. Fluke uses only 100% diamond-turned germanium lenses with specialty coatings.
-
Thermal imager with standard infrared lens
-
AC power supply and battery pack charger (including universal AC adapters)
-
Two, rugged lithium ion smart battery packs
-
USB cable
-
HDMI video cable
-
4 GB micro SD card
-
Rugged, hard carrying case
-
Soft transport bag
-
Adjustable hand strap
-
Available by free download Fluke Connect ® SmartView ® desktop software and users manual
Key features |
|
---|---|
Infrared resolution |
640 x 480 (307,200 pixels) |
SuperResolution |
No |
IFOV with standard lens (spatial resolution) |
0.93 mRad, D:S 1065:1 |
Field of view |
34 °H x 24 °V |
Minimum focus distance |
15 cm (approx. 6 in) |
MultiSharp Focus |
No |
LaserSharp Auto Focus |
Yes, for consistently in-focus images. Every. Single. Time. |
Laser distance meter |
Yes, calculates distance to the target for precisely focused images and displays distance on screen |
Advanced manual focus |
Yes |
Wireless connectivity |
Yes, to PC, iPhone ® and iPad ® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
Fluke Connect app compatible |
Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
Fluke Connect Assets |
Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. |
Fluke Connect instant cloud upload |
Yes*, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
Fluke Connect instant server upload |
Yes** |
IR-Fusion technology |
Yes, adds the context of the visible details to your infrared image |
Ruggedized touchscreen display |
3.5 inch (landscape), 640 x 480 LCD |
Ergonomic design |
Pistol-grip design for one-handed use |
Thermal sensitivity (NETD)** |
≤0.075 °C at 30 °C target temp (75 mK) |
Level and span |
Smooth auto and manual scaling |
Touchscreen adjustable level/span |
Yes. Span and level can be easily and quickly set by simply touching the screen |
Fast auto toggle between manual and auto modes |
Yes |
Fast auto-rescale in manual mode |
Yes |
Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
Built-in digital camera (visible light) |
5MP |
Frame rate |
60 Hz or 9 Hz versions |
Laser pointer |
Yes |
LED light (torch) |
Yes |
Digital zoom |
No |
Data storage and image capture |
|
---|---|
Extensive memory options |
Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage |
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
Image file formats |
bmp, jpeg, is2 |
Memory review |
Thumbnail and full screen review |
Software |
Full analysis and reporting software with access to the Fluke Connect system |
Analyze and store radiometric data on a PC |
Yes |
Export file formats with Fluke Connect software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
Voice annotation |
60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required |
IR-PhotoNotes |
Yes - 2 images |
Text annotations |
Yes. Including standard shortcuts as well as user programmable options |
Video recording and formats |
No |
Remote control operations |
Remote display through Fluke Connect |
Auto capture (temperature and interval) |
No |
Battery |
|
---|---|
Batteries (field-replaceable, rechargeable) |
Two lithium ion smart battery packs with five-segment LED display to show charge level |
Battery life |
2-3 hours per battery (actual life varies depending on settings and usage) |
Battery charging time |
2.5 hours to full charge |
Battery charging system |
Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
AC operation |
AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
Power saving |
User selectable sleep and power off modes |
Temperature measurement |
|
---|---|
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +650 °C (-4 °F to +1,202 °F) |
Accuracy |
±2 °C or 2 % (at 25 °C nominal, whichever is greater) |
On-screen emissivity correction |
Yes (both value and table) |
On-screen reflected background temperature compensation |
Yes |
On-screen transmission correction |
Yes |
Line temperature graph |
No |
Color palettes |
|
---|---|
Standard palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
Ultra Contrast palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
Smart lenses |
|
---|---|
Macro-25 micron lens: 25 MAC2 |
Yes |
2 x telephoto lens: TELE 2 |
Yes |
4 x telephoto lens: TELE4 |
Yes |
Wide angle lens: WIDE 2 |
Yes |
General specifications |
|
---|---|
Color alarms (temperature alarms) |
High temperature, low temperature, and isotherms (within range) |
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
Operating temperature |
-10 °C to +50 °C (+14 °F to +122 °F) |
Storage temperature |
-20 °C to +50 °C (-4 °F to +122 °F) without batteries |
Relative humidity |
10 % to 95 % non-condensing |
Center-point temperature measurement |
Yes |
Spot temperature |
Hot and cold spot markers |
User-definable spot markers |
No |
User defined measurement boxes |
1 expandable-contractible measurement box with MIN-MAX-AVG temp display |
Hard Case |
Rugged, hard carrying case; soft transport bag |
Safety |
IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
Electromagnetic compatibility |
IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
Australian RCM |
IEC 61326-1 |
US FCC |
CFR 47, Part 15 Subpart B |
Vibration |
0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
Shock |
25 g, IEC 68-2-29 |
Drop |
Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
Size (H x W x L) |
27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
Weight (battery included) |
1.04 kg (2.3 lb) |
Enclosure rating |
IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
Warranty |
Two-years (standard), extended warranties are available |
Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
RoHS compliant |
Yes |
Please Note: Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor.
**Indicates Fluke Connect™ features that will be available soon.
