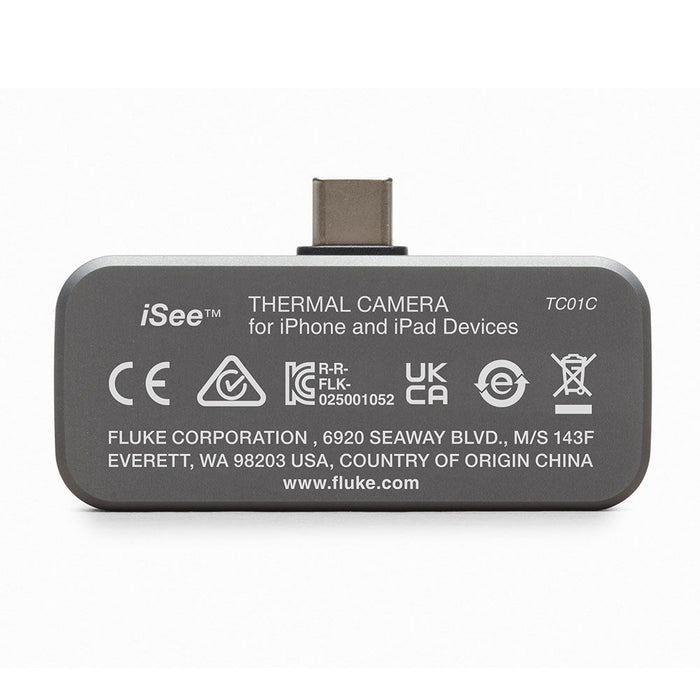

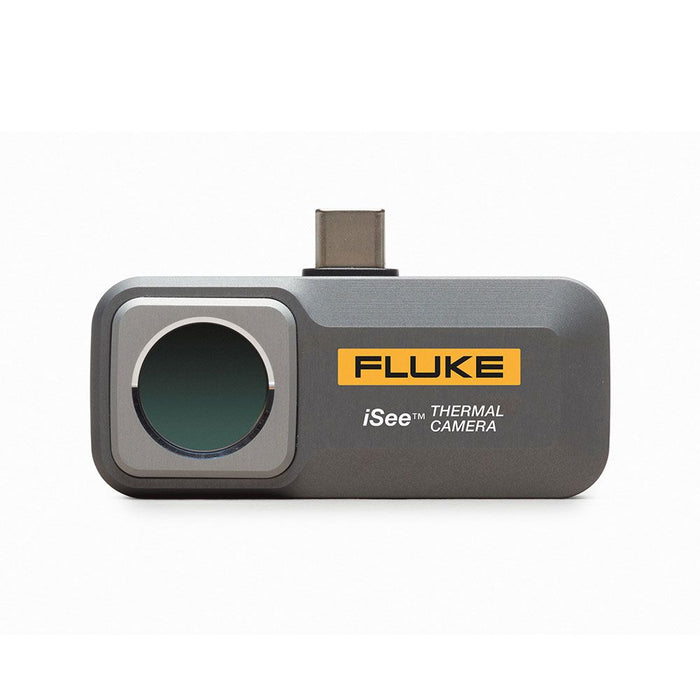

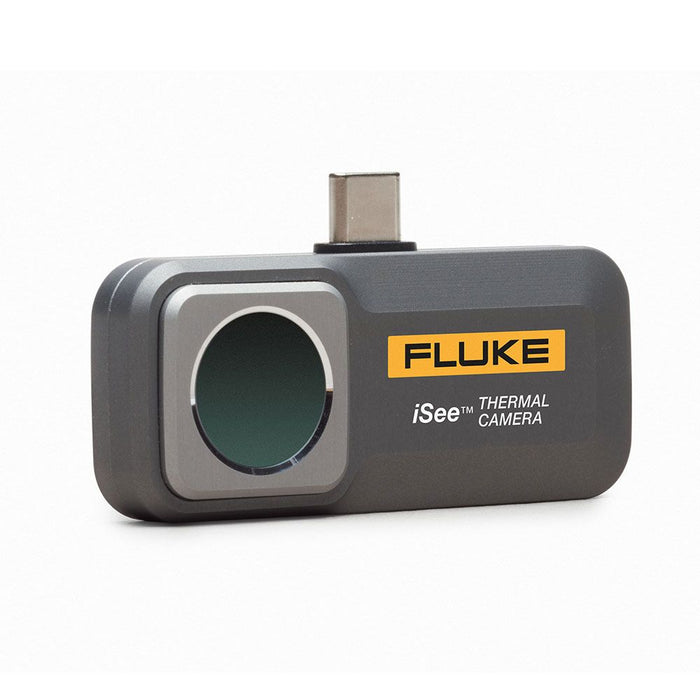

Fluke TC01C 25HZ Thermal Camera FU4 256x192 25HZ for IOS Type C with HSS TC01C 25HZ
SKU: FLUTC01C25HZ
TC01C 25HZ
DESCRIPTION
Shipping & Delivery
Fluke TC01C 25HZ Thermal Camera FU4 256x192 25HZ for IOS Type C with HSS TC01C 25HZ
| TC01A | TC01B | TC01C | |
| Performance Specifications | |||
| IR resolution | 256 x 192 | ||
| Pixel size | 12 μm | ||
| Temperature range | -10 ℃ to 550 ℃ | -20 ℃ to 550 ℃ | |
| Temperature accuracy | ± 2 % of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature) | ||
| Temperature measurement distance | 0.25 m to 5 m (* -20 ℃ to 10 ℃, only for 0.25 m to 3 m) | ||
| Frame rate | 25 Hz | ||
| Warm-up time | 1 minute | ||
| Focal length | Fixed focal length: 3.2 mm | ||
| Shutter mode | Internal auto shutter | ||
| Thermal sensitivity (NETD) | 50 mK | ||
| Spectral range | 8 to 14 μm | ||
| Field of view (H x V) | 56° x 42° | ||
| Spatial resolution | 3.81 mrad | ||
| General Specifications | |||
| USB interface | Type C | Lightning | Type C |
| Compatible system | Android and HarmonyOS | iOS | |
| Operating temperature | 0 ℃ to 40 ℃ | ||
| Storage temperature | -30 ℃ to 60 ℃ | ||
| Operating humidity | 10% to 90% RH, non-condensing | ||
| Power consumption | 350 mW (Typical) | 200 mW (Typical) | |
| Drop test | 1 m | ||
| Ingress protection | IEC 60529: IP54 (with the protective cover for Type C) | IEC 60529: IP56 | IEC 60529: IP56 (with the protective cover for Type C) |
| Operating altitude | 2000 m | ||
| Storage altitude | 12 000 m | ||
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm | ||
| Weight | 22 g | ||
| EMC Environment | International: IEC 61326-1: Electromagnetic environment for portable equiptments CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
||
| Korea (KCC) Class A Equipment (Industrial Broadcasting and Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
|||
| United States (FCC) 47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103. | |||
| Warranty | 2 years | ||
Discover the Fluke TC01C 25HZ Thermal Camera FU4 256x192 25HZ for IOS Type C with HSS TC01C 25HZ at Mektronics Australia – your trusted source for quality tools and equipment!
