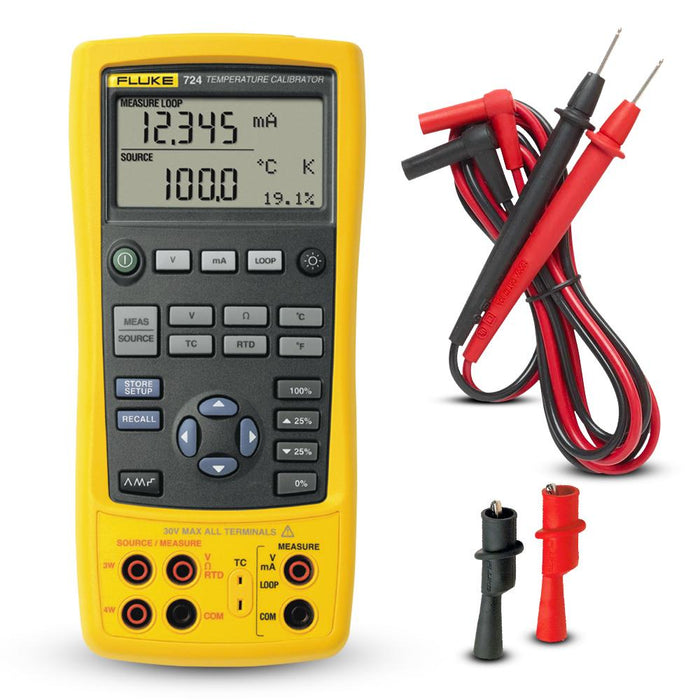

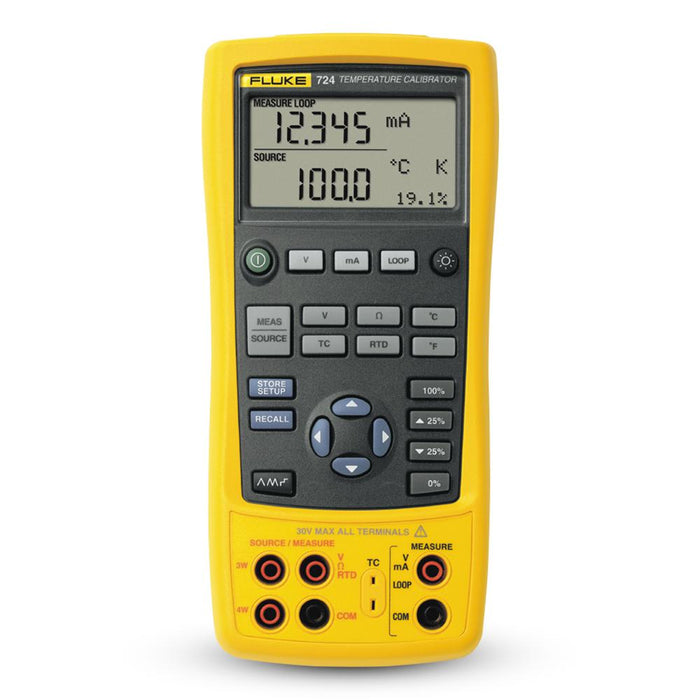

Fluke 724/APAC/EDC Temperature Calibrator

• Powerful, easy-to-use, high-accuracy temperature calibrator

• Ideal for testing and calibrating temperature sensors and transmitters

• Measures 4 to 20 mA loops and provides loop power

• Measures RTDs, thermocouples, ohms, and volts

• Sources and simulates thermocouples, RTDs, volts, and ohms

• 1 x Fluke 724/APAC/EDC Temperature Calibrator

• 1 x Protective Boot (Installed)

• 1 x Set AC175 Alligator Clips

• 1 x Pair Stackable Test Leads

• 1 x Pair TL75 Test Leads

• 1 x Traceable Calibration Report

• 4 x AA Alkaline Batteries (Installed)

• 1 x Quick Reference Guide

• Ramp functions:

  • Source functions: Voltage, current, resistance, frequency, temperature

  • Ramps: Slow ramp, Fast ramp, 25% step-ramp

• Loop power function:

  • Voltage: 24 V

  • Accuracy: 10%

  • Maximum current: 22 mA, short circuit protected

• Step functions:

  • Source functions: Voltage, current, resistance, frequency, temperature

  • Steps: 25% of range, 100% of range

• Operating Temperature: -10ºC to 55ºC

• Storage Temperature: -20ºC to 71ºC

• Safety rating: CSA C22.2 No. 1010.1:1992

• EMC: EN50082-1:1992 and EN55022:1994 Class B

• Battery Life: 25 Hours Typical

• Dimensions (L x W x H): 200mm x 96mm x 47mm

• Weight: 0.65kg
