Fluke TC01B iSee Mobile Thermal Camera
SKU: FLUTC01B
FLUKE-TC01B
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery

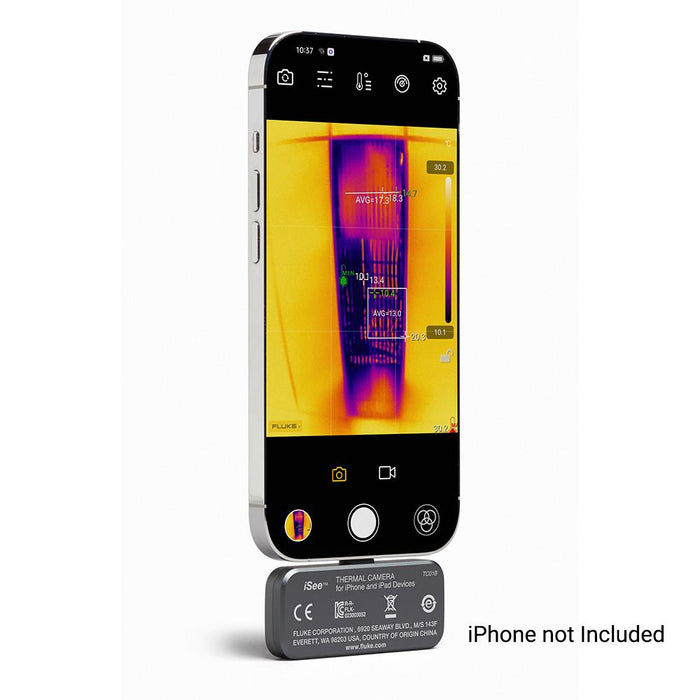

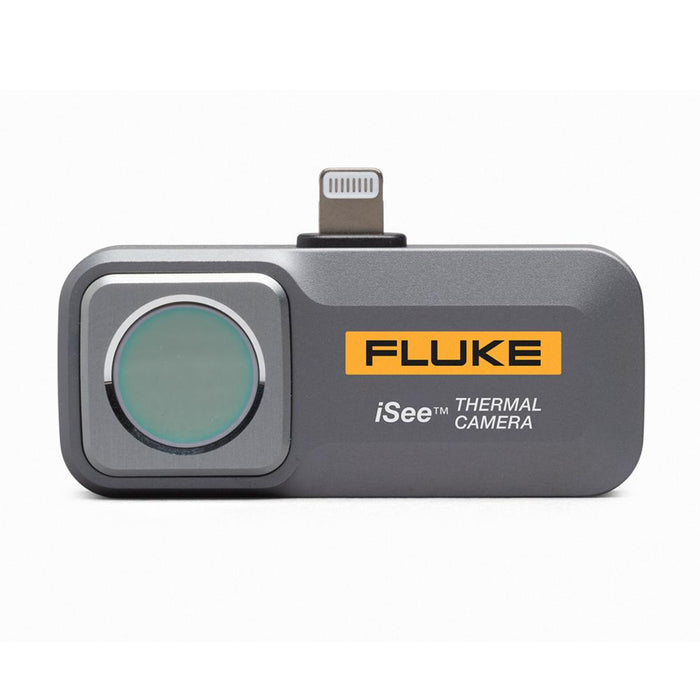

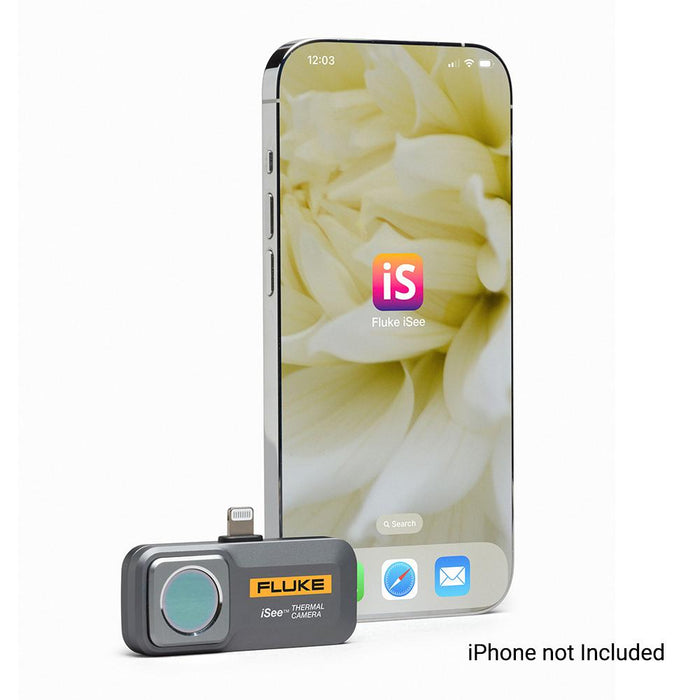

Fluke TC01B iSee Mobile Thermal Camera

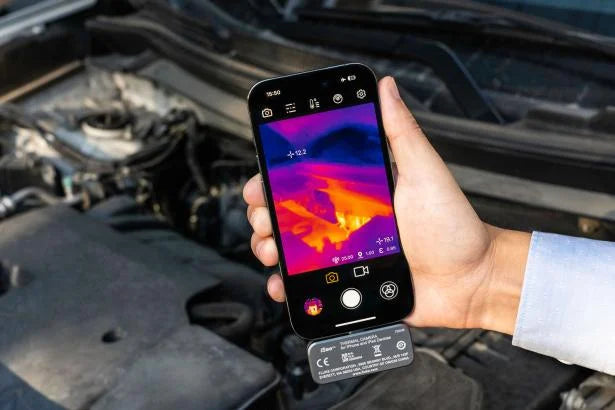

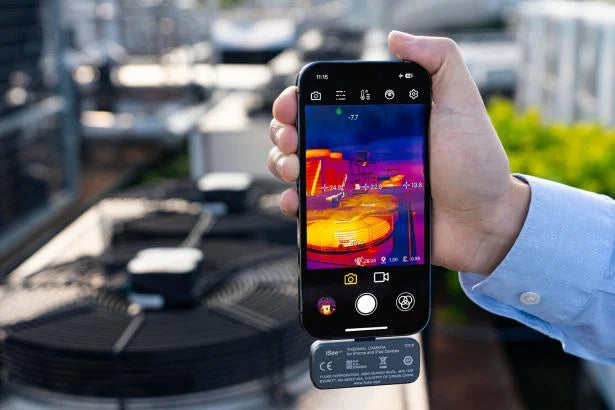

Experience fast and easy inspections on the go with Fluke iSee™ Mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.
Detailed image quality comparable to professional thermal imagers
-
256 x 192 pixels, detailed image quality
-
-10 to 550 °C (14 to 1022 °F) range, covering wide applications
-
50 mk (0.05 °C) thermal sensitivity for fine screening
-
± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
-
25 Hz frame rate, smooth video without lag
-
More than 10 standard and custom color palettes to achieve a variety of personalized images
Full temperature range analysis
-
Real-time high and low-temperature capture, without missing any details
-
Adjustable emissivity to cope with different materials
-
Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
-
Real-time temperature alarm, timely response, and handling
-
Unattended automatic time-lapse photography
-
Infrared and visible light image comparison for locating, comparing, and archiving
Real-time image sharing, communication without barriers
-
Real-time image and video sharing and management, fast and efficient communication
-
It is easy to add image annotations, and communication without barriers
Small and portable, it takes a second to get started
-
Compact design as light as 22 g (0.78 oz), perfect for your mobile phone size
-
The iSeeTM is made of high-quality aluminum material for the airway, with uniquely treated and laser-etched surface
-
1-meter drop test, IP54 ingress protection, Fluke durability
-
Optimized Fluke iSeeTM application interfaces and menus with professional operating experience make it easy to access all functions
Discover the Fluke TC01B iSee Mobile Thermal Camera at Mektronics Australia – your trusted source for quality tools and equipment!
-
256 x 192 pixels, detailed image quality
-
Up to 550 ℃, suitable to use in many applications
-
±2% or ±2 °C accuracy to ensure reliable results
-
25Hz frame rate for smooth video recording
-
Customize image view with more than 10 standard or custom color palettes
-
Never miss any detail with real-time high and low temperature capture
-
Adjustable emissivity to apply with different materials
-
Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging mobile software
-
Real-time temperature alarm for timely response of abnormal condition
-
Automatic time-lapse capture mode for unattended operation
-
Share and manage images and videos in real-time, for fast and efficient communication
-
Up to 1 meter drop test, IP56 (TC01B)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality
-
Fluke TC01B Mobile Thermal Camera (Part#: 5589280)
-
Packaging Box
-
User's Manual
| TC01A | TC01B | |
| Performance Specifications | ||
| IR resolution | 256 x 192 | |
| Pixel size | 12 μm | |
| Temperature range | -10 °C to 550 °C/14 °F to 1022 °F | -20 °C to 550 °C/-4 °F to 1022 °F |
| Temperature accuracy |
± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater
(@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)
|
|
| Temperature measurement distance |
0.25 m to 5 m
(* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)
|
|
| Frame rate | 25 Hz | |
| Warm-up time | 1 minute | |
| Focal length | Fixed focal length: 3.2 mm | |
| Shutter mode | Internal | |
| Thermal sensitivity (NETD) | 50 mK | |
| Spectral range | 8 to 14 μm | |
| Field of view (H x V) | 56° x 42° | |
| Spatial resolution | 3.81 mrad | |
| General Specifications | ||
| USB interface | Type-C | Lightning |
| Operating temperature | 0 ℃ to 40 ℃/32 °F to 104 °F | |
| Storage temperature | -30 ℃ to 60 ℃/–22 °F to 140 °F | |
| Operating humidity | 10 % to 90 % RH, non-condensing | |
| Power consumption | 350 mW (Typical) | 200 mW (Typical) |
| Drop test | 1 m/3.3 ft | |
| Ingress protection |
IEC 60529: IP54
(with the protective cover for Type C)
|
IEC 60529: IP56 |
| Operating altitude | 2 000 m/6 562 ft | |
| Storage altitude | 12 000 m/39 370 ft | |
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in | |
| EMC Environment |
International
IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply net- work that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)
Class A Equipment (Industrial Broadcasting and Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
United States (FCC)
47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103.
|
|
| Warranty | 2 years | |
