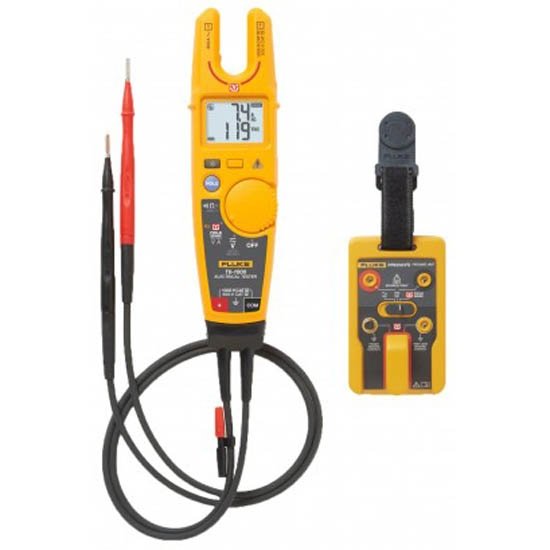

Fluke T6-1000/PRV240FS Electrical Tester with FieldSense Technology, 1000V AC & Proving Unit
SKU: FLUT6-1000/PRV240FS
T6-1000/PRV240FS
DESCRIPTION
Features
Applications
Features
Includes
Specifications
Shipping & Delivery
Fluke T6-1000/PRV240FS Electrical Tester with FieldSense Technology, 1000V AC & Proving Unit
The kit includes the T6-1000 Electrical Tester with FieldSense technology and the PRV240FS Proving unit. Measure voltage the same way you would measure current, without test lead contact to live voltage. Much more than just a voltage detector, giving you reliable voltage and current measurement, without test leads, and without contacting a bare, metal conductor. The proving kit provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests.
Discover the Fluke T6-1000/PRV240FS Electrical Tester with FieldSense Technology, 1000V AC & Proving Unit at Mektronics Australia – your trusted source for quality tools and equipment!
T6 Electrical Testers let you test where it used to be impossible by measuring voltage and current through the open jaw. You can measure voltage (not just detect voltage) without making metallic contact with a live conductor. This means you can:
-
Measure voltage and current simultaneously
-
Measure in tight spaces by not needing to use test leads
-
Save time by taking measurements without needing to remove covers and wire nuts
-
Make measurements with one hand, reducing risk
-
Easy to read display with backlight
-
Detachable Slim Reach probe tips are customized for national electrical standards
-
Test leads accept Fluke accessory test clips
-
TPAK Compatible
-
Commercial electricans
-
Light industrial electricians
-
Basic troubleshooting
-
Verification of voltage and contunuity values
-
Rapidly checking voltage and current measurements without test leads
-
Verification of individual circuits
-
The front-line, go-to tool that fits in pocket
Reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification (PPE is still needed for absence of voltage testing when appropriate).
- Sources both ac and dc steady-state voltage - supplies 240 V dc/ac
- A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
- Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
- Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
- Long battery life - 5,000 tests per set of four AA batteries
-
Fluke T6-1000 Electrical Tester
-
Attached Test Leads, with Removable 4mm Removable Probe Caps
-
User's Manual / Quick Reference Guide
-
Fluke PRV240FS Proving Unit
-
TPAK Hanging Strap
-
Four AA Batteries
-
Instruction Sheet
| FieldSense AC Voltage Range | 1000V |
| FieldSense AC Voltage Resolution | 1V |
| FieldSense AC Voltage Accuracy | ±(3 % + 3 counts) [2] [3] 45 Hz - 66 Hz |
| FildSense AC Current Range | 200A |
| FildSense AC Current Resolution | 0.1A |
| FildSense AC Current Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz |
| FieldSense Frequency (Hz) Range | 45 Hz-66Hz |
| FieldSense Frequency (Hz) Resolution | 1Hz |
| FieldSense Frequency (Hz) Accuracy | ±(1 % + 2 counts) [3] |
| Volts AC Range | 1000V |
| Volts DC Range | 1000V |
| Calibration | 1-year calibration cycle |
| Dimensions | 61.1 mm x 259.3 mm x 43.8 mm |
| Weight | 0.35 kg (0.78 lb) |
| Fork Opening | 17.8 mm |
| Operating Temperature | -10 to +50 °C (14 to 122 °F) |
| Altitude Operating | 2,000 m (6,562 feet) |
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense |
