Fluke T6-1000 PRO Electrical Tester with Fieldsense & Flat Tipped Probes
SKU: FLUT6-1000PRO/APAC
T6-1000PRO/APAC
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

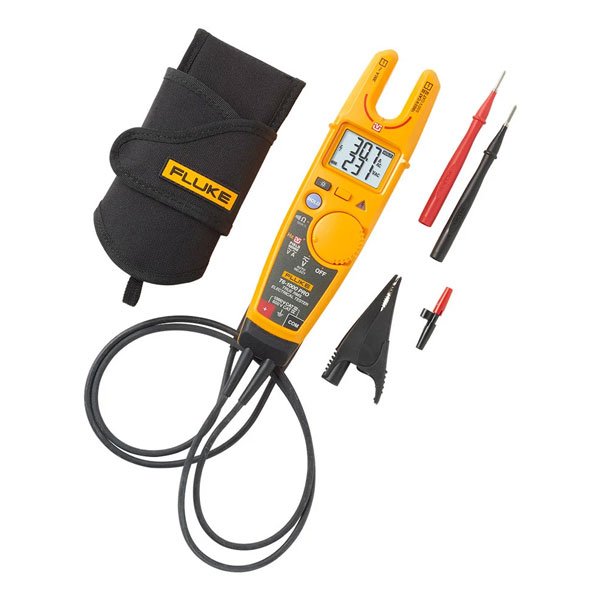

Fluke T6-1000 PRO Electrical Tester with Fieldsense & Flat Tipped Probes

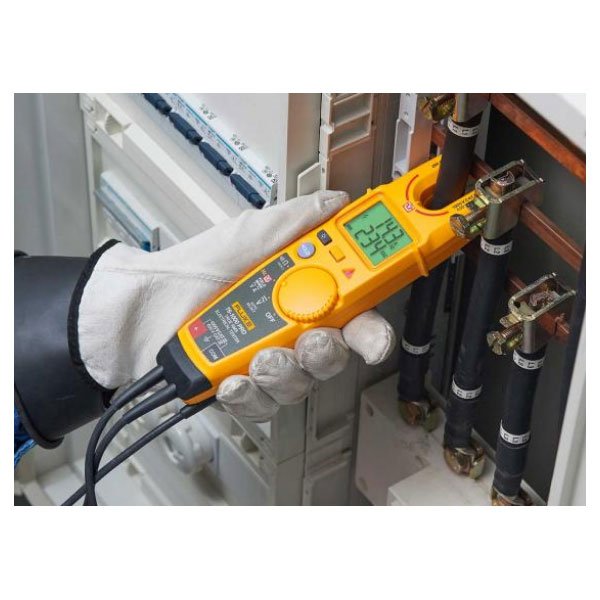

The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.
Discover the Fluke T6-1000 PRO Electrical Tester with Fieldsense & Flat Tipped Probes at Mektronics Australia – your trusted source for quality tools and equipment!
-
Save time by seeing voltage and current measurements at the same time
-
Visual Continuity™ "“ the screen automatically turns green for continuity, perfect when it's too loud to hear the beeper
-
FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
-

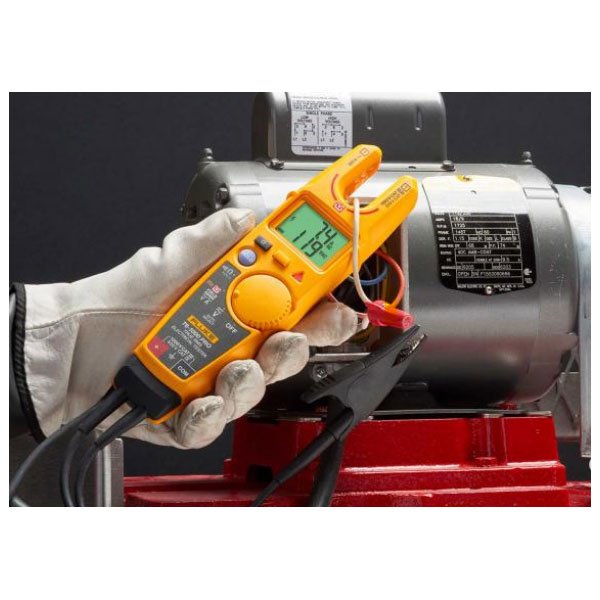

Simultaneous voltage and current display"“save time by seeing voltage and current measurements at the same time when trouble shooting motors, pumps or other equipment
-

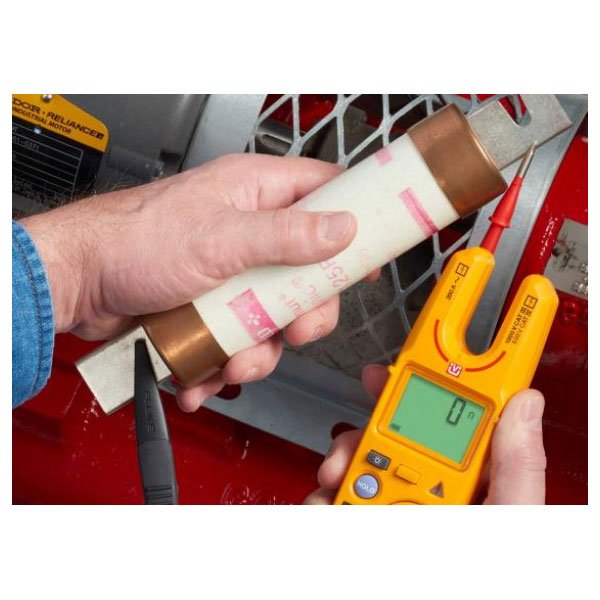

Visual Continuity™"“When checking continuity, the screen automatically turns green while the beeper is on. Perfect for those times when it's too loud to hear the beeper, when you're wearing ear protection or when it's too dark to easily read the screen. Visual Continuity takes the guesswork out of checking continuity.
-
True-rms "“ Accurate voltage and current measurements, even when measuring complex signals.
-
FieldSense™ technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
-
Attached test leads with removable 4 mm probe caps
-
Black AC285 SureGrip™ alligator clip
-
H-T6 holster
-
User documentation
| Function | ||
| FieldSense ac voltage | Requires test leads | No |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz[1] [2] | |
| FieldSense ac current | Requires test leads | No |
| Range | 200.0 A | |
| Resolution | 0.1 A | |
| Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz | |
| FieldSense frequency (Hz) | Requires test leads | No |
| Range | 45 Hz "“ 66 Hz | |
| Resolution | 1 Hz | |
| Accuracy | ±(1 % + 2 counts) | |
| Volts ac | Requires test leads | Yes |
| Range | 1000 V | |
|
Resolution |
1 V |
|
|
Accuracy |
±(1.5 % + 2 counts) 45 Hz - 66 Hz |
|
|
Volts dc |
Requires test leads |
Yes |
|
Range |
1000 V |
|
|
Resolution |
1 V |
|
|
Accuracy |
±(1 % + 2 counts) |
|
|
Resistance |
Requires test leads (all ranges) |
Yes |
|
Range |
2000 Ω |
|
|
Resolution |
1 Ω |
|
|
Range |
20.00 kΩ |
|
|
Resolution |
0.01 kΩ |
|
|
Range |
100.0 kΩ |
|
|
Resolution |
0.1 kΩ |
|
|
Accuracy (all ranges) |
±(1 % + 2 counts) |
|
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac-coupled, RMS responding.
Accuracy[2]: FieldSense specified from 16V to 1000V.
|
General Specifications |
|
|
Calibration |
1-year calibration cycle |
|
Dimensions |
61 mm x 259 mm x 43 mm |
|
Weight |
0.35 kg (0.78 lb) |
|
Fork opening |
17.8 mm (0.7") |
|
Temperature
Operating: Storage: |
-10 °C to +50 °C (14 °F to 122 °F) -30 °C to +60 °C (-22 °F to +140 °F) |
|
Altitude
Operating: Storage: |
2,000 m (6,562 feet) 10,000 m (32,808 feet) |
|
Relative Humidity |
0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F) 0 % to 75 %, 30 °C to 40 °C (86 °F to 104 °F) 0 % to 45 %, 40 °C to 50 °C (104 °F to 122 °F) |
|
Battery
Type: Life: |
2x AA (IEC LR6) 360 hour continuous, typical is 200 hour using the FieldSense function |
|
Temperature coefficient |
0.1 x (specified accuracy) / °C for <18 °C or >28 °C (< 64.4 °F or > 82.4 °F) |
|
Safety
General: Measurement T6-1000 PRO: |
IEC 61010-1: Pollution Degree 2 IEC 61010-2-032: CAT IV 600 V / CAT III 1000 V |
|
Electromagnetic Compatibility |
IEC/EN 61326-1: Portable |
