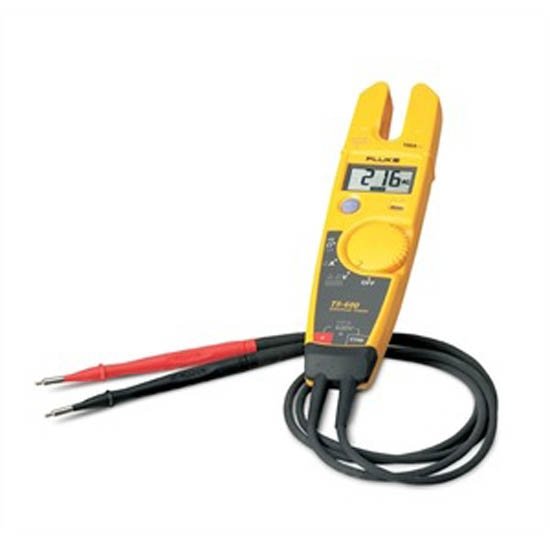

Image for Illustrative Purposes Only
Fluke T5-600 Voltage, Continuity and Current Tester
SKU: FLUT5-600USA
T5-600USA
About
Shipping & Delivery
Fluke T5-600 Voltage, Continuity and Current Tester
Fluke T5-600 Voltage, Continuity and Current Tester Overview
The T5-600 Voltage Continuity and Current Tester is a versatile troubleshooting tool for up to 600 V environments. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. Its OpenJaw™ current measurement lets you check current up to 100 A without breaking the circuit.
Detachable SlimReach™ test probes are customized for national electrical standards. Plus, its tough test leads accept optional accessories such as clips and specialty probes. The test leads stow neatly in the back of the tester, making it easy to carry in your tool pouch. Add the optional H5 holster and you can clip the T5-1000 onto your belt. For higher voltage applications check out the Fluke T5-1000.
Other useful capabilities:
- Features a compact design with handy probe storage
- Withstands a 10 ft. (3 m) drop
- Includes detachable SlimReach™ probe tips that are customized for national electrical standards
- Can stay connected much longer than solenoid type testers
- Offers Auto-off mode to conserve battery life
- Fits into an optional holster that attaches to a belt and neatly stows test leads
Fluke T5-600 Voltage, Continuity and Current Tester Features
- Reliable electrical tester automatically measures volts AC and volts DC with precise digital resolution
- Includes easy, accurate OpenJaw™ current measurement
- Displays resistance to 1000 Ω
- Includes a continuity beeper for quick go/no-go tests
- All inputs are protected to EN61010-1 CAT III 600 V rating. UL, CSA
Fluke T5-600 Voltage, Continuity and Current Tester Includes
- 600 V Voltage, continuity and current tester
- 4 mm detachable probes
- Instruction sheet
Fluke T5-600 Voltage, Continuity and Current Tester Specifications
| Specifications | ||
| Jaw opening | 12.9 mm (0.5 in) | |
| Max wire size | 1/0 THHN Cable | |
| Current range AC rms | 0 to 100.0 A | |
| Accuracy AC current (50/60 Hz) | 3% ± 3 counts | |
| AC response | Averaging | |
| Voltage range AC/DC | 0 to 600 V | |
| Voltage accuracy | AC | 1.5% ± 2 counts |
| DC | 1% ± 1 count | |
| Resistance range | 0 to 1000 Ω | |
| Continuity beeper threshold | On at < 25 Ω, off at > 400 Ω | |
| Volts indicator LED threshold | Guaranteed on by 30 V AC | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -30°C to 60°C | |
| Humidity (without condensation) | 0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C) |
|
| Dust/water resistance | Yes | |
| Operating altitude | 2000 meters max | |
| Temperature coefficient | 0.1 x (specified accuracy)/°C (< 18°C or > 28°C) | |
| Safety Specifications | ||
| Measurement Category | IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac | |
| Agency approvals | CSA, TUV | |
| Maximum voltage | 600 V between any terminal and earth ground | |
| Mechanical and General Specifications | ||
| Size | 30.5 x 51 x 203 mm | |
| Weight | 300 g | |
| Warranty | Two-years | |
| Battery life | 200 hour zinc chloride, 400 hour alkaline | |
| Battery type | 2 x AA | |
| Low battery indicator | Yes | |
| Current sensor opening | 12.9 mm | |
| Calibration cycle | 1 year | |
| Test leads | Type | Heavy duty, flexible leads rated for 1000 V use. |
| Field replaceable leads terminate in male shrouded banana plugs | ||
| Probes | One red, one black. | |
| Detachable Slim-Reach™ probe tips | ||
| Styles | TP1 Slim Reach™ Test Probes | |
