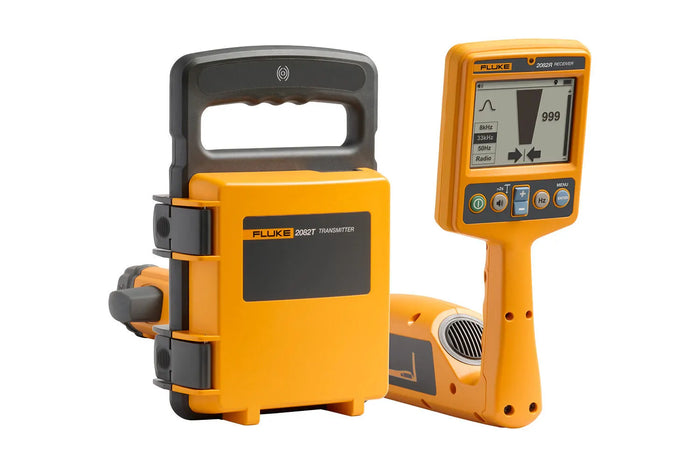

Fluke SmartTrace™ 2082BT Elite Underground Utility Locator Kit
The Fluke SmartTrace™ 2082BT Elite Underground Utilities Locator Kit adds integrated Bluetooth® connectivity for real-time mapping and documentation directly from the field. Designed for professionals who need precision and proof, the 2082BT Elite connects wirelessly to PointMan®—the industry-standard geolocation app—so every locate is recorded with GPS coordinates, depth, and signal type for digital mapping and compliance reporting.
The 2082BT Elite features the only CAT IV 600 V-rated transmitter in the underground-locating category, ensuring the highest level of protection when working around energized circuits. Multiple active and passive tracing modes let technicians safely locate both live and de-energized lines using one tool.
Discover the Fluke SmartTrace™ 2082BT Elite Underground Utility Locator Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
CAT IV 600 V safety for energized circuits
-
Built-in Bluetooth® for PointMan® mapping
-
Depth to 20 ft (6 m), detection to 100 ft
-
Grayscale display readable in any weather
-
Rugged IP54 design for field durability
-
2082BTR Receiver
-
2028T Transmitter
-
C2082 Carrying case
-
TL2082 Test leads kit
-
FLG2082 Flags, 8-color, 100-pk
-
FP-UAT-600 Fuse 2-pk
-
Battery LR6, AA (6)
-
Battery LR20, D-cell (8)
| Maximum voltage between any terminal and earth ground | 600 V |
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Humidity (non-condensing) | 0–90% (5–30 °C), 0–75% (30–40 °C), 0–45% (40–50 °C) |
| Altitude | ≤ 2000 m (≤ 6561 ft) |
| Ingress protection | IP54 (non-operating) |
| Pollution degree | 2 (IEC 61010-1) |
| Electromagnetic Compatibility (EMC) International |
IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Electromagnetic Compatibility (EMC) USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| 2082T Transmitter | 2082BTR Receiver (Bluetooth) | AF2082 A-Frame (optional accessory) | SC2082 Signal Clamp (optional accessory) | TL2082 Test Lead Set | |
| Power supply | 8 × D cells (IEC LR20) | 6 AA, IEC LR6 | 6 AA, IEC LR6 | ||
| Fuse protection | 0.5 A, 1000 V, IR 30 kA, Φ6.3×32 mm, Fast. | ||||
| Safety compliance | IEC 61010-2-030: CAT IV 600 V | IEC 61010-2-030: CAT IV 600 V | IEC 61010-2-032: CAT IV 600 V, 100 A. | IEC 61010-031: CAT IV 600 V, 10 A. | |
| Electromagnetic Compatibility (EMC) | USA (FCC) 47 CFR 15 Subpart C Sections 15.203, 15.209, 15.249 | ||||
| Wireless radio frequency range | 2400 MHz to 2483.5 MHz | ||||
| Wireless radio output power | <100 mW |
