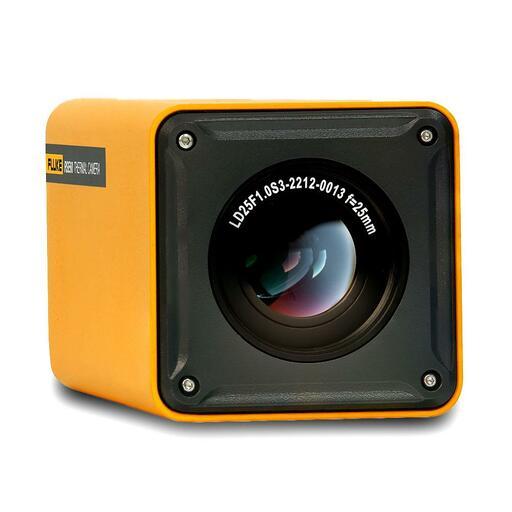

Fluke RSE30H/APAC RSE30H 384 x 288 2000C Fixed Thermal Camera GT6 30Hz APAC

• 384 × 288 IR resolution allows the user to visualize the small temperature changes accurately.

• Auto-focus system saves a lot of time & effort by keeping the camera focused on the target at all times.

• 30Hz Frame rate & 1.8 Mb bandwidth video output offers a smooth visual experience by capturing the smallest temperature changes in detail.

• Wide temperature measurement range of -20 °C to 2000 °C allows the camera to be used in a wide variety of applications

• Conduct multi-point testing with confidence using user-definable measurement points, lines, and areas without limitations.

• 16 color palettes such as Ironbow, black-white & rainbow offer easy visualization of hot & cold areas on a target.

• Compatible with Standard, wide-angle, and telephoto lenses, to meet the needs of R&D, quality inspection, and monitoring.

• SmartView IR PC software combined with Open API SDK provides industrial vision & software customization capabilities.

• For more information on the advatages of our camera, software & SDK please contact our local Fluke representative

• Standard Lens

• Lens Cover

• Power Adapter

• Power Connector

• Ethernet Cable

• Document Pouch (Safety Sheet, Quick Reference Guide, Warranty Card)

• Accessory Bag (Tripod Adapter, 4 M2*5 Screws, Allen Key)

• Packaging Box

• Infrared Resolution: 384 x 288

• Detector Type: Focal Plane Array FPA, Uncooled Microthermal

• Thermal Sensitivity (NETD)*: < 50mk

• Pixel Spacing: 17 μm

• Infrared Spectral Band: 7.5 μm 14 μm

• Field of View:

• Spatial Resolution (FOV):

• Minimum Focus Distance:

• Lens Focal Length:

• Focus System: Auto

• Temperature Range: -20°C to 2000°C

• Temperature Measurement Range:

  • Subrange 1: -20°C to 150°C

  • Subrange 2: 0°C to 650°C

  • Subrange 3: 300°C to 2000°C

• Temprature Accuracy: 15° C to 35° C, ±2 °C or ±2 % of rdg, whichever is greater

• Global Temperature Measurement Correction: Emissivity (0.01 to 1.00), Reflected Temperature (Background Temperature), Transmittance, Atmospheric Temperature, Relative Humidity, Target Distance

• Area Temperature Measurement Correction: Emissivity (0.01 to 1.00)

• Analysis Software: SmartView IR

• Colour Palettes: 10 colour palettes, such as Ironbow, black-white, rainbow, etc., the palettes can be inverted

• Image Processing: Non-uniformity correction, intelligent gain control

• Image Mirror: Left-right, up-down, center

• Video Stream Compression Standard: H.264

• Video:

  • Main stream:

    • Pixel: 384 x 288

    • Frequency: 30 Hz

    • Bandwidth: 1.8 Mb

  • Sub stream:

    • Pixel: 384 x 288

    • Frequency: 30 Hz

    • Bandwidth: 100 Kb

• Fully-Radiometric Streaming: Yes. 30Hz

• Pan-Tilt Control: Support Pelco-D protocol

• Temperature measurement area: Support 5 temperature measurement points, 10 temperature measurement lines, 10 temperature measure-ment areas, support Modbus output (the Modbus output is mutually exclusive with the Pan-Tilt control)

• Ethernet Type: 10M/100M/1000M, adaptive

• Network Protocols: IPv4, UDP, TCP, RTSP, RTCP, RTP

• Concurrent Access: 10 channels for main stream and sub stream, 1 channel for fully-radiometric

• Access standard: ONVIF

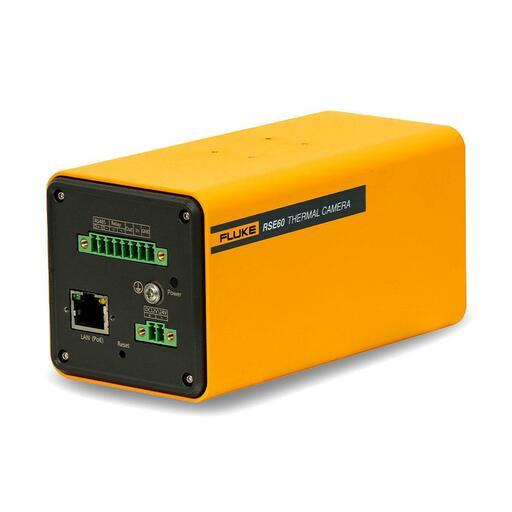

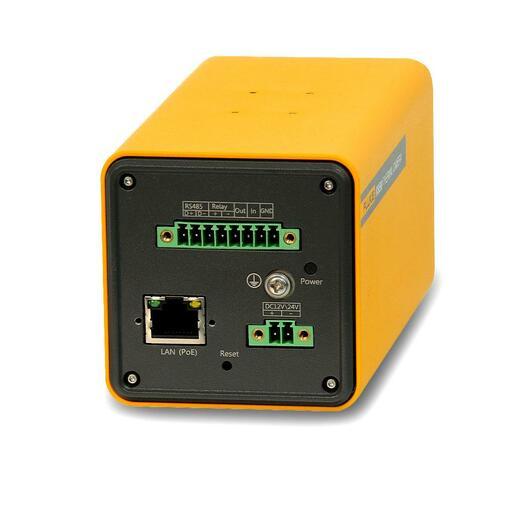

• Power Port: Terminal block, with fixed screw holes

• Network Interface: RJ45, with fixed screw holes and status indicator

• Alarm Input/Output: 1 relay output: load capacity: 24 V, 1.5 A

  • 1 optocoupled output: output capacity: 3.3 to 24 V, 35mA maximum output current

  • 1 channel optocoupled input: input capability: 3.3 to 24 V, 5mA-to-15mA input current

• Serial Port: 1 RS-485

• Power Supply: 12V to 24V DC, PoE

• Typical Power Consumption: 3W

• Safety Standards: IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A

• Enclose Rating: IEC 60529: IP40

• Shock: IEC 60068-2-27: 25g, 11ms

• Vibration: IEC 60068-2-6: 2g

• CE Compliant: Directive 2011/65/EU and amendment (EU) 2015/863 Directive 2014/30/EU EMC

• Operating Temperature: -10° C to 50° C

• Storage Temperature: -40° C to 70° C

• Relative Humidity: 90%

• Dimensions: 157.25 mm x 80 mm x 79 mm (Standard lens, without base)

• Housing Material: Aluminium alloy

• Mounting: Tripod mounting: 2 x 1/4-UNC-20 standard tripod mounting holes Bottom and top mounting supported
