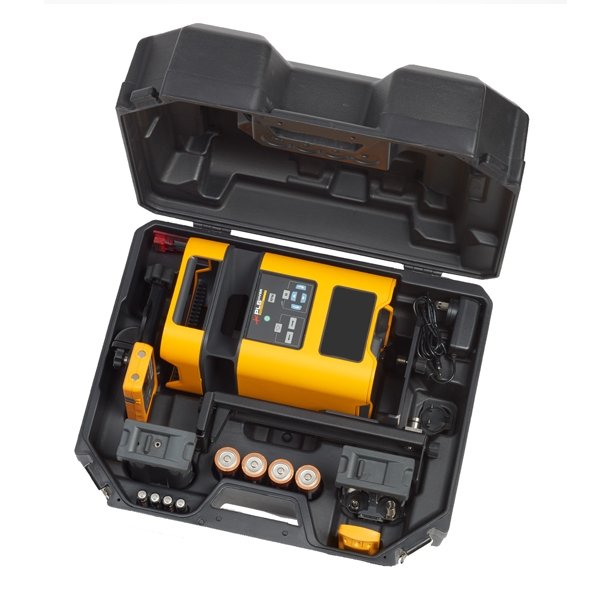

Image for Illustrative Purposes Only
Fluke PLS HV2R Manual Slope Red Rotary Laser Level System
SKU: FLUPLSHV2RSYS
PLS HV2R SYS
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
Fluke PLS HV2R Manual Slope Red Rotary Laser Level System
The PLS HV2R red beam rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2R emits a laser line in the horizontal or vertical plane. The HV2R rotary lasers also emit a point from the top when placed in the vertical position. The HV2R lasers are ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
These professional-grade tools offer the accuracy and durability you can expect from PLS, a Fluke Company.
-
The HV2R rotary laser level emits a self-leveling horizontal laser plane and can be used in the vertical position to emit a vertical laser plane.
- HV2R comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation
-
Applications include setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation.
Discover the Fluke PLS HV2R Manual Slope Red Rotary Laser Level System at Mektronics Australia – your trusted source for quality tools and equipment!
-
Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
-
Laser Axis: Green Horizontal and Vertical
-
Working range: ≤ 30 m (100 ft)
-
Working range with XLD: ≤ 300 m (1000 ft)
-
1-meter drop tested
-
IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
-
PLS HV2R Rotary Laser Level
-
PLS BP10 Alkaline Battery Tray with 4x D batteries
-
PLS RBP10 NiMH Rechargeable Battery Tray with BC20 Universal Charging Cord
-
PLS RC2 Remote Control
-
PLS XLD Rotary Laser Detector
-
PLS XLD Clamp
-
PLS WCB10 Rotary Wall and Ceiling Mount
-
RRT4 Red Reflective Target
-
Safety Sheet and Quick Reference Guide
| Rotary levels | PLS HV2R | PLS HV2G | |
|---|---|---|---|
|
Laser |
Class II red |
Class II green |
|
|
Laser axis |
Horizontal and Vertical |
Horizontal and vertical |
|
|
Accuracy |
≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) |
≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) |
|
|
Auto-leveling range |
± 5-degrees |
± 5-degrees |
|
|
Manual slope range |
± 5-degrees |
± 5-degrees |
|
|
Working range |
|||
|
Without XLD laser detector |
≤ 30 m (100 ft) |
≤ 30 m (100 ft) |
|
|
With XLD laser detector |
≤ 300 m (1000 ft) |
≤ 300 m (1000 ft) |
|
|
Weight |
3 kg (6.6 lb) |
3 kg (6.6 lb) |
|
|
Drop test |
1 m |
1 m |
|
|
IP rating |
IP67 |
IP67 |
|
|
Operating |
-20 °C to 50 °C (-4 °F to 122 °F) |
-20 °C to 50 °C (-4 °F to 122 °F) |
|
|
Battery |
4 x D Alkaline or NiMH rechargeable |
4 x D Alkaline or NiMH rechargeable |
|
|
Battery life |
> 60 hours |
> 60 hours |
|
| Accessories | PLS XLD Rotary Laser Detector | ||
|
Working range |
300m (1000 ft) |
||
|
Dimensions |
135 mm x 69 mm x 25 mm |
||
|
Weight |
0.19 kg (0.42 lbs) |
||
|
Drop test |
1 m |
||
|
IP rating |
IP67 |
||
|
Operating |
-20 °C to 50 °C (-4 °F to 122 °F) |
||
|
Battery |
1 x AA Alkaline |
||
|
Battery life |
> 50 hours |
||
|
Visible spectrum |
450 nm – 800 nm |
||
|
Accuracy |
|||
|
Fine |
1 mm (0.05 in) |
||
|
Medium |
2 mm (0.1 in) |
||
|
Coarse |
5 mm (0.2 in) |
||
