Fluke PLS H2 Horizontal Red Rotary Laser Level (Bare Tool)
SKU: FLUPLSH2Z
PLS H2 Z
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

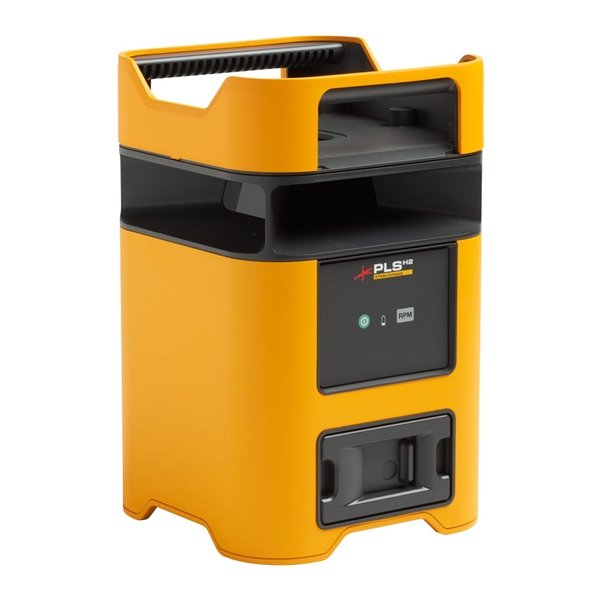

Fluke PLS H2 Horizontal Red Rotary Laser Level (Bare Tool)
The PLS H2 rotary laser is designed for the construction job site, offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary laser is ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
These professional-grade tools offer the accuracy and durability you can expect from PLS, a Fluke Company.
- The H2 is a horizontal-only rotary laser. The H2 is easy-to-use and fully self-leveling, designed for interior and exterior layout projects.
Discover the Fluke PLS H2 Horizontal Red Rotary Laser Level (Bare Tool) at Mektronics Australia – your trusted source for quality tools and equipment!
-
Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
-
Working range: ≤ 30 m (100 ft)
-
Working range with XLD: ≤ 300 m (1000 ft)
-
1-meter drop tested
-
IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
-
PLS H2 Rotary Laser Level
-
PLS BP10 Alkaline Battery Tray with 4x D batteries
-
Safety Sheet and Quick Reference Guide
| Rotary levels | PLS H2 | ||
|---|---|---|---|
| Laser |
Class II red |
||
| Laser axis |
Horizontal only |
||
| Accuracy |
≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) |
||
| Auto-leveling range |
± 5-degrees |
||
| Manual slope range |
± 5-degrees |
||
| Working range |
Without XLD laser detector |
≤ 30 m (100 ft) |
|
|
With XLD laser detector |
≤ 300 m (1000 ft) |
||
| Weight |
2.89 kg (6.4 lb) |
||
| Drop test |
1 m |
||
| IP rating |
IP67 |
||
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
||
| Battery |
4 x D Alkaline or NiMH rechargeable |
||
| Battery life | > 60 hours | ||
| Accessories | PLS XLD Rotary Laser Detector | ||
|---|---|---|---|
| Working range |
300m (1000 ft) |
||
| Dimensions |
135 mm x 69 mm x 25 mm |
||
| Weight |
0.19 kg (0.42 lbs) |
||
| Drop test |
1 m |
||
| IP rating |
IP67 |
||
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
||
| Battery |
1 x AA Alkaline |
||
| Battery life |
> 50 hours |
||
| Visible spectrum |
450 nm – 800 nm |
||
| Accuracy |
Fine |
1 mm (0.05 in) |
|
|
Medium |
2 mm (0.1 in) |
||
|
Coarse |
5 mm (0.2 in) |
||
