Fluke PLS 5G 5-Point Green Laser Level Kit
Image for Illustrative Purposes Only
Fluke Logo

Fluke PLS 5G 5-Point Green Laser Level Kit

SKU: FLUPLS5GKIT

PLS 5G KIT

$846.00

EX. GST
$930.60
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

Fluke PLS 5G 5-Point Green Laser Level Kit

The new PLS 5G green laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly.

  • The PLS 5G is a self-leveling, five-point green laser level (plumb, level, and square horizontal and vertical points) equipped for multiple applications.

  • Includes the PLS Pendulum Target for easy transfer of points to the floor during square alignment.

  • Kit includes floor stand and L-bracket for fast, easy overhang and centerline measurements.

Discover the Fluke PLS 5G 5-Point Green Laser Level Kit at Mektronics Australia – your trusted source for quality tools and equipment!

  • Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)

  • Green laser beam

  • Point laser direction: 90° up, down, left, right, forward

  • Durable pendulum lock platform.

  • IP54 rating to limit dust and water entry for years of operation on the job site.

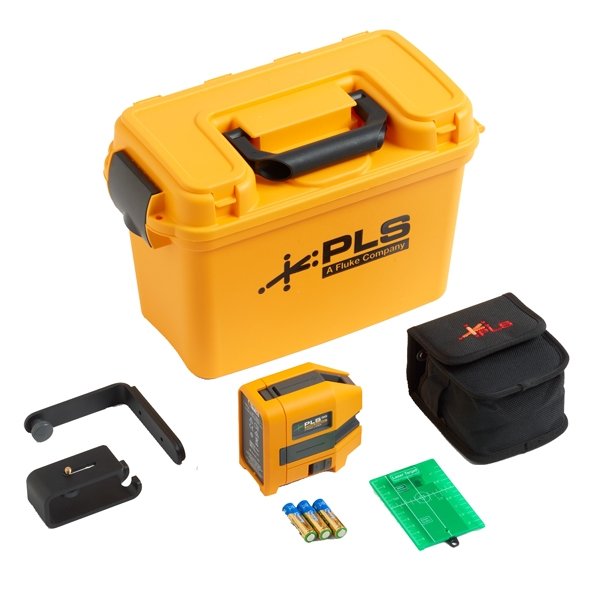

  • PLS 5G laser level

  • PLS canvas pouch

  • PLS BP5 alkaline battery pack

  • PLS FS Floor Stand

  • PLS MLB Magnetic L-Bracket

  • PLS PT Pendulum Target

  • PLS GRT4 Green Reflective Target

  • Safety Sheet and Quick Reference Guide

PLS 5G
Battery

3 x AA Alkaline IEC LR6
Battery Life, Continuous Use

Red

≥ 30 hours

Green

≥ 9 hours
Point Laser Direction

90° up, down, left, right, forward
Working Range

≤ 30 m (100 ft.)
Accuracy

≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
Laser Leveling

System

Automatic, Pendulum

Range

4 °
Point Laser Diameter

≤ 4 mm at 5 m
Temperature

Operating

-10 °C to 50 °C (14 °F to 122 °F)

Storage

15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)

With Batteries

-18 °C to 50 °C (-0.4 °F to 122 °F)

Without Batteries

-20 °C to 70 °C (-13 °F to 158 °F)
Relative Humidity

0 % to 90 % (0 °C to 35 °C)

0 % to 75 % (35 °C to 40 °C)

0 % to 45 % (40 °C to 50 °C)
Size (H x W X L)

116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
Weight

~0.6 kg (1.3 lb.)
Safety

IEC 61010-1: Pollution Degree 2
Laser

IEC 60825-1:2014 Class 2

Light Source

Semiconductor laser diode
Max Output Power

< 1 mW
Wavelength

Red

635 nm ± 5 nm

Green

525 nm ± 5 nm
