Fluke PLS 3G 3-Point Green Laser Level Kit
SKU: FLUPLS3GKIT
Fluke 3-Point Green Laser Kit
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

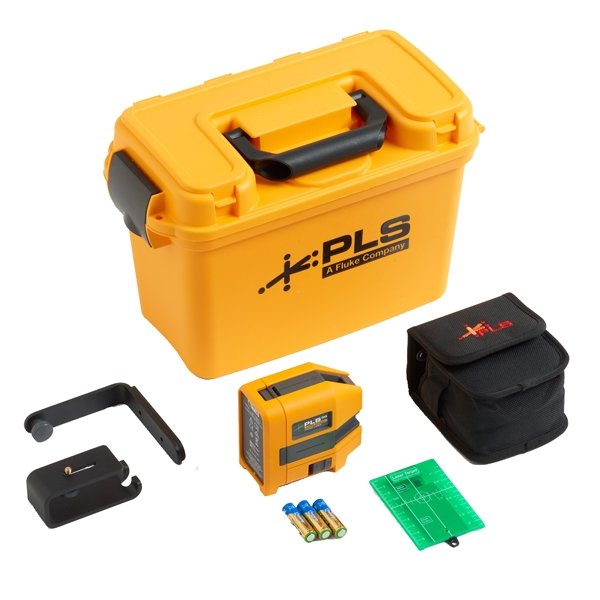

Fluke PLS 3G 3-Point Green Laser Level Kit
The new PLS 3G green laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly.
-
This professional self-leveling three-point red and green laser level allows for fast, accurate layout of reference points and is excellent for steel stud framing, HVAC installation, electrical and residential construction
-
The PLS 3G green beam laser is up to three times brighter than the PLS 3R red beam, making it ideal for projects over longer distances or with lower lighting.
-
Kit includes floor stand and L-bracket for fast, easy overhang and centerline measurements.
Discover the Fluke PLS 3G 3-Point Green Laser Level Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
-
Green beam laser level
-
Point laser direction: 90° up, down, forward
-
Durable pendulum lock platform.
-
IP54 rating to limit dust and water entry for years of operation on the job site.
-
PLS 3G laser level, PLS canvas pouch
-
PLS BP5 alkaline battery pack
-
PLS FS Floor Stand
-
PLS MLB Magnetic L-Bracket
-
PLS GRT4 Green Reflective Target
-
Safety Sheet and Quick Reference Guide
| PLS 3G | |||
|---|---|---|---|
| Battery |
3 x AA Alkaline IEC LR6 |
||
| Battery Life, Continuous Use |
Red |
≥ 30 hours |
|
|
Green |
≥ 16 hours |
||
| Point Laser Direction |
90° up, down, forward |
||
| Working Range |
≤ 30 m (100 ft.) |
||
| Accuracy |
≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.) |
||
| Laser Leveling |
System |
Automatic, Pendulum |
|
|
Range |
4 ° |
||
| Point Laser Diameter |
≤ 4 mm at 5 m |
||
| Temperature |
Operating |
-10 °C to 50 °C (14 °F to 122 °F) |
|
|
Storage |
15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in) |
||
|
With Batteries |
-18 °C to 50 °C (-0.4 °F to 122 °F) |
||
|
Without Batteries |
-20 °C to 70 °C (-13 °F to 158 °F) |
||
| Relative Humidity |
0 % to 90 % (0 °C to 35 °C) |
||
|
0 % to 75 % (35 °C to 40 °C) |
|||
|
0 % to 45 % (40 °C to 50 °C) |
|||
| Size (H x W X L) |
116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) |
||
| Weight |
~0.6 kg (1.3 lb.) |
||
| Safety |
IEC 61010-1: Pollution Degree 2 |
||
| Laser |
IEC 60825-1:2014 Class 2 |
||
|
Light Source |
Semiconductor laser diode |
||
| Max Output Power |
< 1 mW |
||
| Wavelength |
Red |
635 nm ± 5 nm |
|
|
Green |
525 nm ± 5 nm |
||
