Fluke Networks MicroScanner™ Cable Verifier MS2-100
SKU: FLUMS2-100
MS2-100
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

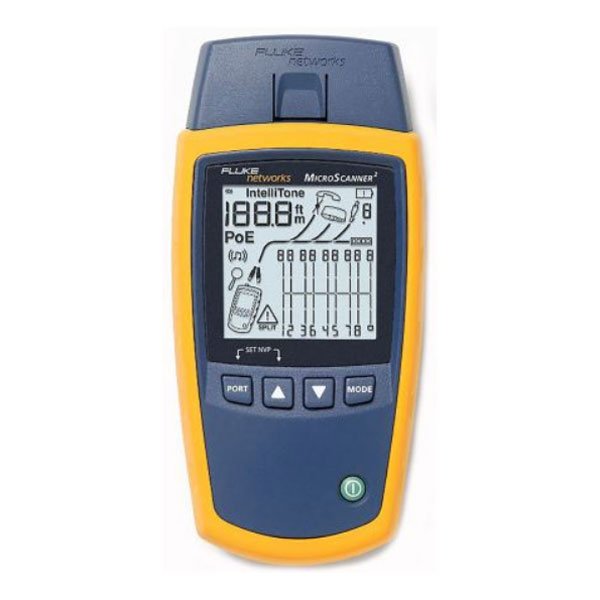

Fluke Networks MicroScanner™ Cable Verifier MS2-100
The MicroScanner2 Cable Verifier helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far end device. It starts by taking results from what was four different test modes and displaying them all at once - graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What's more, its integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient and troubleshooting easier.
Discover the Fluke Networks MicroScanner™ Cable Verifier MS2-100 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Revolutionary Interface - Graphical wiremap, length, cable ID, and distance to fault displayed on one screen
-
Multimedia Support - tests all common media types including RJ11, RJ45, Coax, with no need for adapters
-
IntelliTone Toning - trace virtually any cable or wire pair with IntelliTone digital and analog toning (Sold separately or included in MS2-KIT)
-
VDV Service Detection - verifies today's media services, including 10/100/1000 Ethernet, POTS, & PoE
-
Rugged Housing - Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
-
Oversized Display - Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet
-

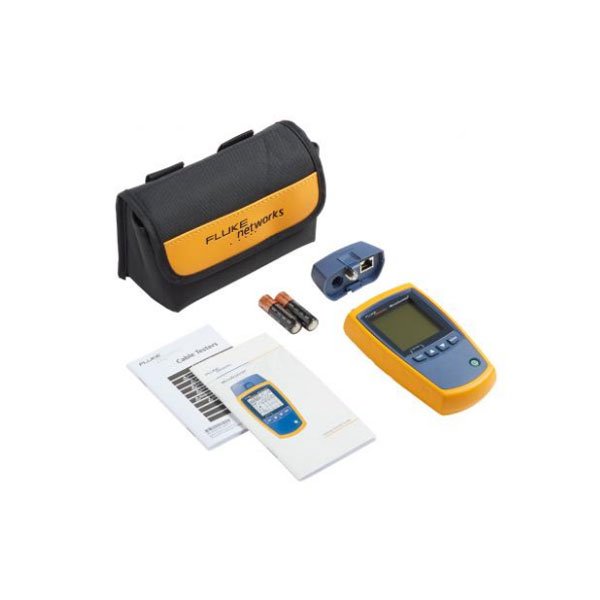

MicroScanner2 Cable Verifier with main wiremap adapter
-
Multi-language getting started guide
-
Batteries
-
Fluke Networks carry pouch
Specifications apply at 23 °C (73 °F), unless otherwise noted.
|
Environmental specifications |
|
|
Operating temperature |
32 °F to 113 °F (0 °C to 45 °C) |
|
Storage temperature |
-4 °F to +140 °F (-20 °C to +60 °C) |
|
Operating relative humidity (% RH without condensation) |
90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C) |
|
Shock and Vibration |
Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached |
|
Safety |
IEC 61010-1 3rd Edition |
|
Altitude |
4,000 m; Storage: 12,000 m |
|
EMC |
IEC 61326-1 |
|
General specifications |
|
|
Test connectors |
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable. |
|
Power |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
|
Dimensions and weight (with batteries installed and wiremap adapter attached) |
3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) |
|
Display |
Monochrome LCD with backlight |
|
Test modes |
|
|
Cable test |
Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
|
Tone |
Generates Intellitone™ and normal analog toning signals |
|
PoE |
MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
|
Performance specifications |
|
|
Cable types tested |
Twisted pair: UTP, FTP, SSTP Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω |
|
Length test |
Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable. |
|
Wiremap test |
Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
|
Ethernet port detection |
MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. |
|
Tone generator |
Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
