Fluke Linkiq™ Cable + Network Tester Kit
SKU: FLULIQ-KIT
LIQ-KIT
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery

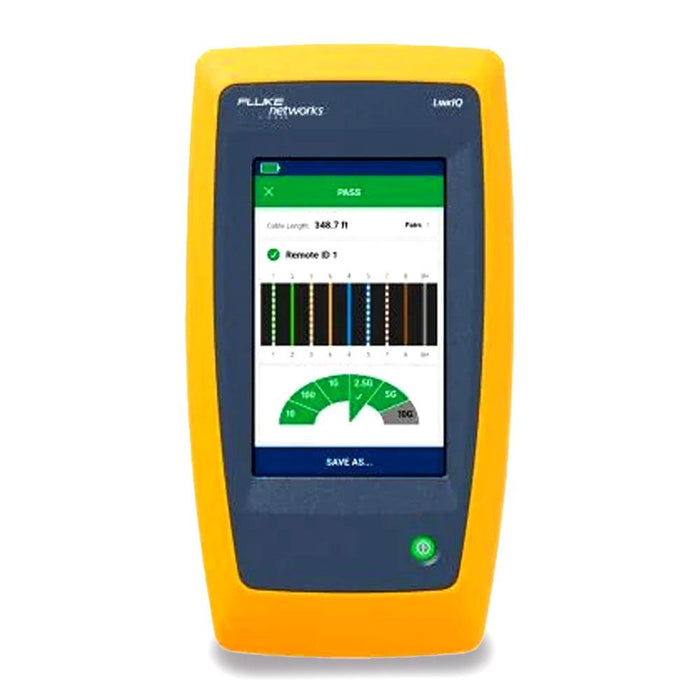

Fluke Linkiq™ Cable + Network Tester Kit
The LinkIQ™ Cable+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems.
LinkIQ™ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements.
LinkIQ™ also performs ping tests to verify connectivity and provides nearest switch diagnostics including advertised data rate, switch name, IP address, port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.
Additional features include: Cable Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC.

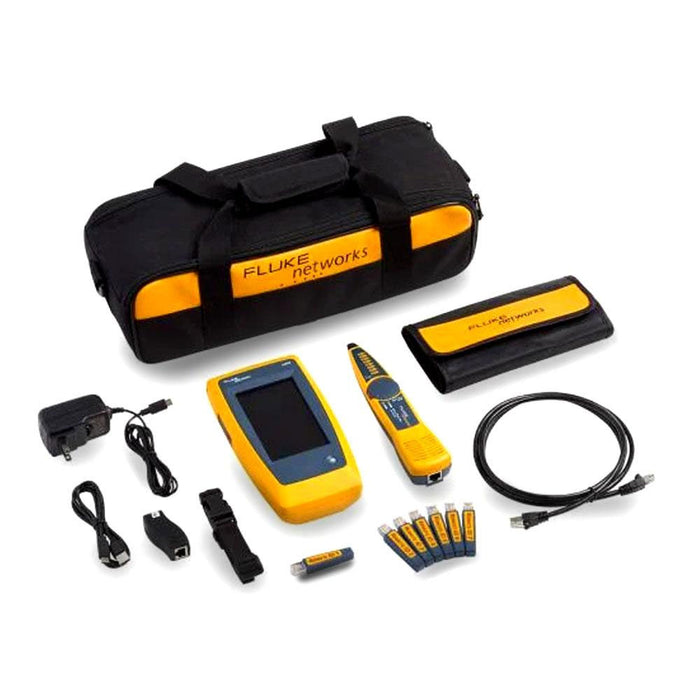

Includes LinkIQ™ Main Unit, Remote ID #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, IntelliTone(TM) Pro 200 Probe, and duffel bag carrying case.
Discover the Fluke Linkiq™ Cable + Network Tester Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Validate Cable Performance up to 10GBASE-T via frequency-based measurements
-
Get connected switch data rate, switch name, IP address, port number, & VLAN
-
Detect the PoE class (1-8) and power, and perform a load test
-
Test connectivity to TCP/IP network through IP configuration and ping
-
Cable diagnostics including length plus IntelliTone™, remotes 2-8
-
Manage results and print reports from LinkWare™ PC
-
LinkIQ™ Main Unit
-
Remote ID #1-7
-
RJ45-RJ45 patch cord
-
AC charger
-
RJ45/11 universal coupler
-
IntelliTone(TM) Pro 200 Probe
-
Duffel bag carrying case
| Feature | Description |
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese |
| Weight | 1 lbs 6 oz (624g) |
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C |
| Power Adapter | Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II |
| Host Interface | USB type C |
| Display | 800 x 480 color capacitive multi-touch |
| Dimensions | 8.5 in x 4.5 in |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to +60°C |
| Operating Relative Humidity | 0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C |
| Operating Altitude | 4,000 m 3,200 m with ac adapter |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Drop | 1 m drop, 6 sides |
Active Network Diagnostics
| Feature | Description |
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP |
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost |
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP |
| Power Over Ethernet Measurements | Loaded Voltage (V) Loaded Power (W) |
| Port Blink | Blink the light of the connected port |
Cable Test Specifications
| Feature | Description |
| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs. |
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m |
| Cable Types | Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair |
| Wire Map-Only Tests | Document wire map Length of each pair Diagnose split pairs User selectable T568A or T568B User selectable crossover settings (Straight through, Half-crossover, Full-crossover) Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analog probes. |
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |
