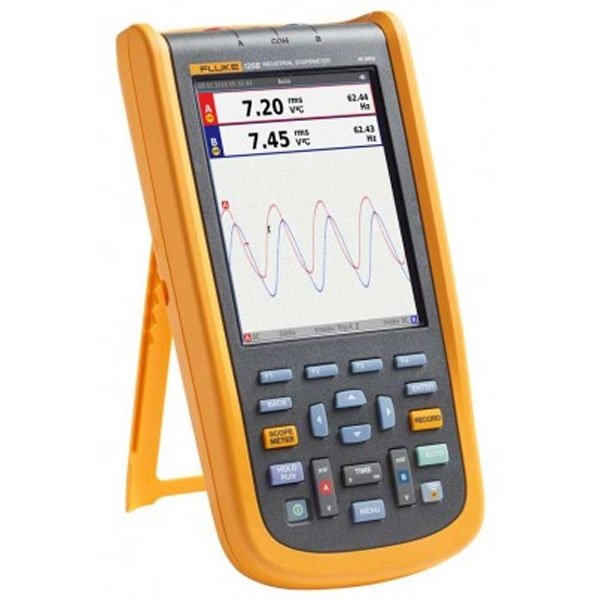

Image for Illustrative Purposes Only
Fluke Industrial Scopemeter Hand Held Oscilloscope (40MHZ) 125B
SKU: FLU125B/AU
125B/AU
Features
Applications
Specifications
Shipping & Delivery
- Dual-input digital oscilloscope and multimeter
- Increased resolution and work load coverage with 40 MHz oscilloscope bandwidth
- Two 5,000-count true-rms digital multimeters
- Connect-and-View™ trigger simplicity for hands-off operation; IntellaSet™ technology automatically and intelligently adjusts numerical readout
- Dual-input waveform and meter reading recorder for trending data over extended periods
- Recorder Event Detect captures elusive intermittent signals
- WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*
- FlukeView® ScopeMeter® Software for Windows®
- Check Industrial networks with BusHealth physical layer tests against defined reference levels
- Single Phase Power Quality and Harmonics Analzyer
Discover the Fluke Industrial Scopemeter Hand Held Oscilloscope (40MHZ) 125B at Mektronics Australia – your trusted source for quality tools and equipment!
- Automation & Process Control
- Industrial
- Maintenance & Repair
- Motor Drive & Control
- Test & Measurement
- Automobile
- Utility
- HVAC
- Elevator
| DC Voltage Ranges | 500 mV, 5 V, 50 V, 500 V, 750 V |
| Accuracy | ± (0.5 % +5 counts) |
| True-rms Voltages (V ac and V ac+dc) Ranges | 500 mV, 5 V, 50 V, 500 V, 750 V |
| Accuracy for 5 % to 100 % of range (AC or dc coupled) | 60 Hz to 20 kHz | ± (2.5 % +15 counts) |
| Frequency Response - DC Coupled | |
| Without probes and test leads (with BB120) | dc to 40 MHz (-3 dB) |
| With STL120-IV 1:1 shielded test leads | DC to 12.5 MHz (-3 dB) / dc to 20 MHz (-6 dB) |
| with VP41 10:1 Probe | dc to 40 MHz (-3 dB) |
| Frequency Response - AC Coupled (If roll off) | |
| Without probes and test leads | <10 Hz (-3 dB) |
| With STL120-IV 1:1 shielded test leads | <10 Hz (-3 dB) |
| With VP41 10:1 Probe | <10 Hz (-3 dB) |
| Rise time, excluding probes, test leads | <17.5 ns |
| Power Quality | |
| Readings | Watt, VA, var, PF, DPF, Hz |
| Watt, VA, var ranges (auto) | 250 W to 250 MW, 625 MW, 1.56 GW |
| Number of Harmonics | DC to 51 |
| Bus health tester | |
| AS-i | NEN-EN50295 |
| CAN | ISO-11898 |
| RS-232 | EIA-232 |
| RS-485 | EIA-485 |
