Fluke ii915 Acoustic Imager with LeakQ PDQ & MecQ
SKU: FLUFLK-II915
FLK-II915
DESCRIPTION
Features
Specifications
Shipping & Delivery

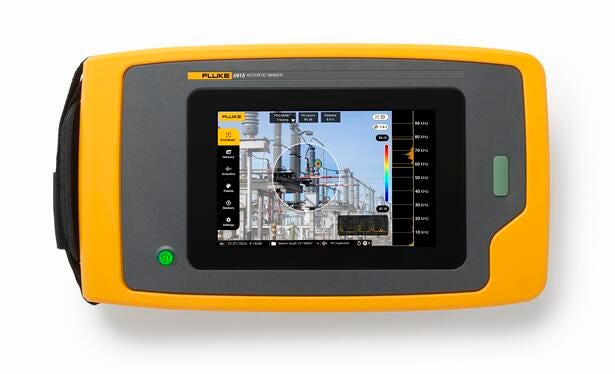

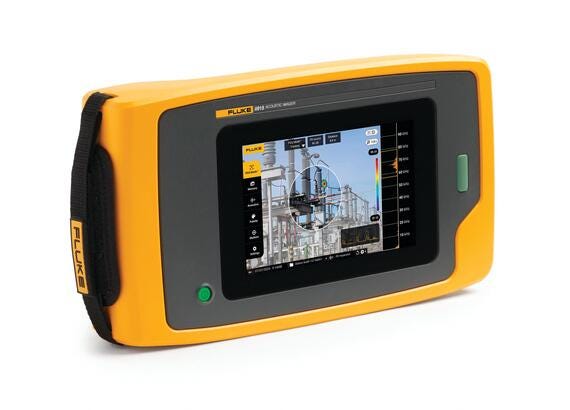

Fluke ii915 Acoustic Imager with LeakQ PDQ & MecQ
The Fluke ii915 Acoustic Imager is a powerful tool designed to identify and evaluate issues in various systems. With three distinct modes—LeakQ™, PDQ™, and MecQ™—this innovative device empowers maintenance professionals to take proactive measures and prevent costly problems.
Leak Detection with More Sensitivity
LeakQ™ Mode: Detect Hidden Costs

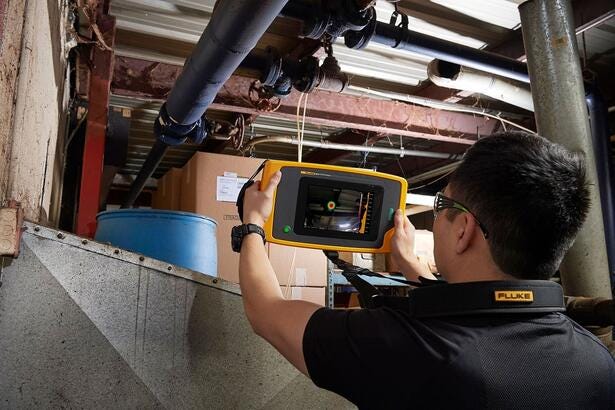

Leaks in compressed air, gas, steam, and vacuum systems can lead to significant financial losses. The Fluke ii915 simplifies leak detection by allowing technicians to visualize sound. As they scan hoses, fittings, and connections, the built-in acoustic array captures decibel levels per frequency. The resulting SoundMap™ overlays on a visual image, making it easy to pinpoint leaks—even during peak operation hours. Say goodbye to time-consuming inspections and hello to efficient leak detection. Fluke ii915 has the high frequency range and best sensitivity to do acoustic leak detection more efficiently.
Early Mechanical Issue Identification
MecQ™ Mode: Efficient Inspection for Conveyor Systems
Conveyor systems are notorious for their complexity and potential to disrupt production. The Fluke ii915 acoustic camera revolutionizes inspection by enabling contactless scanning of large areas. Advanced noise filtering ensures clear images, even in high-noise environments. Detecting potential mechanical issues early allows targeted maintenance, preventing unplanned downtime. For seamless operation and proactive maintenance of large conveyance systems, the Fluke ii915 Acoustic Imager with MecQ™ is the ultimate choice.
Visualizing the Invisible Threat
PDQ™ Mode: Locating Partial Discharge

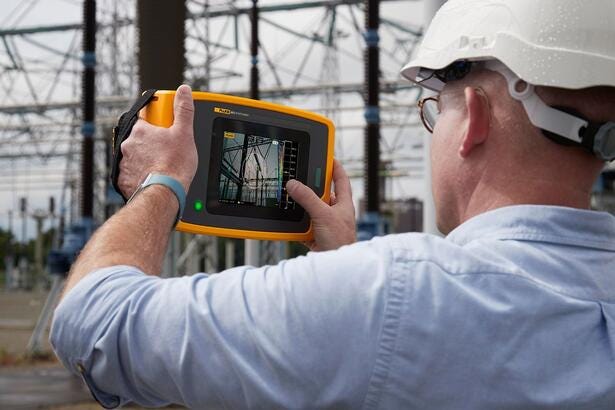

Partial discharge poses serious risks, from arc flash fires to blackouts. The Fluke ii915 translates partial discharge sounds into visuals, precisely pinpointing their location. With an extended frequency range of 2-100 kHz, this tool can detect partial discharge even earlier and aids maintenance planning to prevent catastrophic events. High-voltage electricians, electrical test engineers, and grid maintenance teams can now see what was once invisible.
Discover the Fluke ii915 Acoustic Imager with LeakQ PDQ & MecQ at Mektronics Australia – your trusted source for quality tools and equipment!
-
Enhanced Performance: Improved detection performance for gas leaks, electrical discharges, and mechanical issues.
-
LeakQ™ Mode: Estimated leak size and cost.
-
PDQ Mode™: Assesses discharge severity.
-
MecQ™ Mode: Proactively address potential problems in rotating mechanical components.
-
Reporting Features: Integrated visual and textual tagging and annotation functionalities for streamlined reporting.
-
Wireless Upload: Easily transfer data to Fluke Connect.
| Sensors | |
| Frequency band |
2 kHz to 100 kHz 2 kHz to 52 kHz |
| Detection range1 |
0.5 to > 120 meters (1.6 to > 393 feet) |
| Field of view (FOV) | 63°± 5° |
| Nominal frame rate | 25 FPS |
| Built-in digital camera (visible light) | |
| Field of view (FOV) | 63°±5° |
| Focus | Fixed lens |
| Zoom | 3 x digital zoom |
| Resolution | 5 MP |
| Display | |
| Size | 7" LCD with backlight, sunlight readable |
| Resolution | 1280 x 800 (1,024,000 pixels) |
| Touchscreen | Capacitive |
| Acoustic image | SoundMapTM image |
| Image storage | |
| Storage capacity |
32 GB (> 8,000 pictures / > 1,600 videos) |
| Image format | Blended visual and SoundMapTM .JPG or .PNG |
| Video format | Blended visual and SoundMapTM .MP4 |
| Video length | Up to 5 minutes |
| Digital export | USB-C for data transfer |
| Acoustic measurements | |
| Measurement range (typical) |
12.1 to 114.6 dB SPL (± 1 dB SPL 2 kHz) 4.4 to 101.2 dB SPL (± 2 dB SPL 19 kHz) 12.8 to 119.2 dB SPL (± 1 dB SPL 35 kHz) 19.8 to 116.1 dB SPL (± 3 dB SPL 52 kHz) 41.4 to 129.0 dB SPL (± 1 dB SPL 80 kHz) 54.4 to 135.5 dB SPL (± 1 dB SPL 100 kHz) |
| Classification and quantification | |
| LeakQTM | Leak size scale, Leak rate, and Leak cost estimation |
| PDQ ModeTM | Partial discharge type classification |
| MecQTM | Mechanical anomaly detection |
| Auto max/min dB gain | Auto or manual, user selectable |
| Frequency band selection | User selectable through user-made presets or manual entry |
| Battery | |
| Battery | Rechargeable and field replaceable Li-ion battery |
| Battery life | 6 hours |
| Battery charging time | ~3,5 hours |
| Battery charging system | Internal (USB-C) |
| Software | |
| Ease of use | Intuitive user interface |
| Acoustics: Show dB scale | On/Off |
| Acoustics: Min/Max dB | Manual/Auto |
| Acoustics: Profiles | Preset capture profiles |
| Acoustics: High frequency | Yes |
| Acoustics: Multiple sources | Show single or multiple sources |
| Palette: Colors | 3: Grayscale, Ironbow, and Blue-Red |
| Palette: Overly transparency | Yes: 1-100% |
| Grayscale mode | Yes |
| Centerpoint markers | On/Off |
| Trend graphs | Frequency and dB scale |
| Spotmarkers | dB level reading at center point of image |
| Leak values | Leak costs, Leak volume, LeakQTM scale (1-10)2 |
| Master admin menu | Yes |
| Annotation | Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure |
| Photo notes | Up to 4 photos notes for reference |
| Asset inspection status | 'As left', 'As found', 'Undetermined' |
| Asset ID | Text input and automatic QR code based asset ID identification |
| Actions annotation | Action requirements, Action priority level, Action notes |
| Other | Operating conditions, Weather notes |
| General Specifications | |
| Tripod holder / connector | Yes: 1/4"-20 |
| USB | 2 x USB-C |
| Wireless | Wifi |
| Operating Temperature | -10 to 45 °C (14 to 113 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) without batteries installed |
| Relative humidity | 10 to 95 % non-condensing |
| Size (H x W x L) | 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) | 2 kg (4.4 pounds) |
| Ingress Protection (IP) | IP40 |
| Warranty | 2 year |
| Fluke Premium Care | Premium Care Standard3 |
| Self-diagnostic notification | Array-health test to identify when microphone array needs attention |
| Supported languages | Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| RoHS compliant | Yes |
| Safety | |
| General safety | IEC 61010-1 |
| Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting and Communication) |
| USA (FCC) | 47 CFR 15 sub part B. This product is considered an exempt device per clause 15.103 |
