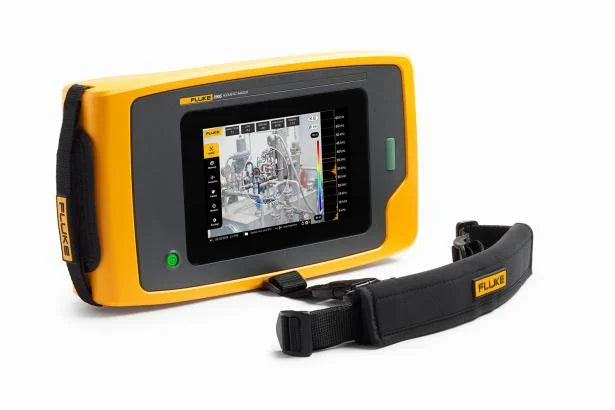

Fluke ii500 Acoustic Imager with LeakQ Scale (1-10)
SKU: FLUFLK-II500
FLK-II500
DESCRIPTION
Features
Contents
Specifications
Resources
Shipping & Delivery
Fluke ii500 Acoustic Imager with LeakQ Scale (1-10)
The Fluke ii500 Acoustic Imager, equipped with LeakQ™ technology, empowers maintenance teams to detect and locate gas leaks efficiently. Designed for ease of use, it requires no specialized training. Even during peak production periods, teams can effectively identify gas and vacuum leaks. The ii500's advanced acoustic leak detection technology isolates leak sound frequencies, making leaks visible even in noisy environments.
he Fluke ii500 Acoustic Imager visualizes sounds from small leaks in compressed air, gas, and vacuum systems. Its array of microphones provides an expanded field of view. Designed explicitly for noisy production facilities, the Fluke ii500 Industrial Acoustic Imager (Sonic Industrial Imager) features SoundSight™ technology, which is simple to learn and implement.
Discover the Fluke ii500 Acoustic Imager with LeakQ Scale (1-10) at Mektronics Australia – your trusted source for quality tools and equipment!
-
Ready-to-Use: The Fluke ii500 is ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7" LCD display allows for clear leak visualization.
-
Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates relative leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQ™ severity index.
-

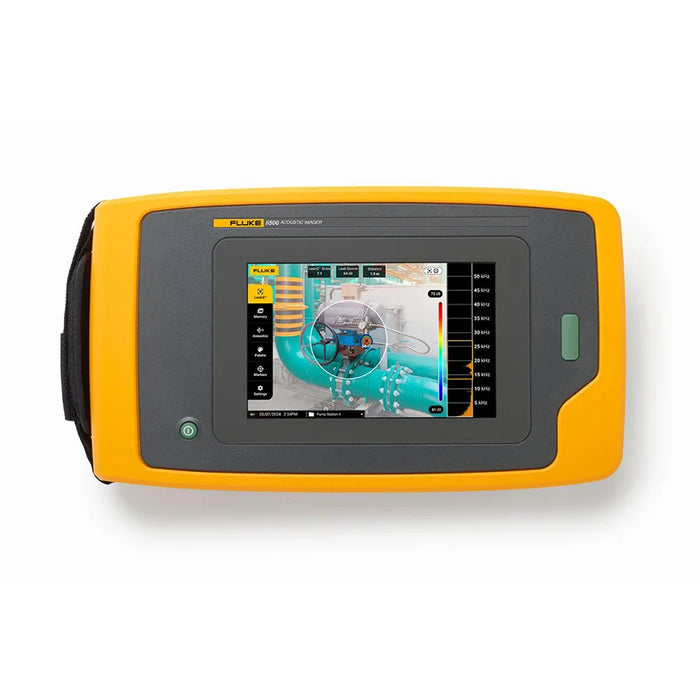

SoundMap™ Overlay: The 7" LCD touchscreen overlays a SoundMap™ on visual images, facilitating rapid leak location identification.
-
Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise.
-
Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization.
-
Leak Sizing: Prioritize repairs based on relative leak size.
-
Collaboration: The reporting tool allows sharing of visuals, tagging, and notes with team members and repair personnel.
-
Fluke ii500 Acoustic Imager
-
AC power supply and battery pack charger (including universal AC adapters)
-
Rugged lithium-ion smart battery pack
-
USB cable
-
Rugged, hard carrying case
-
Adjustable hand strap and neck strap
-
Sensor array protection cover
| Key Features | ii500 |
| Sensors | |
| Frequency band | 2 kHz to 52 kHz |
| Detection range1 | 0.5 to > 50 meters (1.6 to > 164 feet) |
| Field of view (FOV) | 63°± 5° |
| Nominal frame rate | 25 FPS |
| Built-in digital camera (visible light) | |
| Field of view (FOV) | 63°± 5° |
| Focus | Fixed lens |
| Zoom | No zoom |
| Resolution | 0.3 MP |
| Display | |
| Size | 7" LCD with backlight, sunlight readable |
| Resolution | 1280 x 800 (1,024,000 pixels) |
| Touchscreen | Capacitive |
| Acoustic image | SoundMapTM image |
| Image storage | |
| Storage capacity |
20 GB (> 5,000 pictures / > 999 videos) |
| Image format | Blended visual and SoundMapTM .JPG or .PNG |
| Video format | Blended visual and SoundMapTM .MP4 |
| Video length | Up to 5 minutes |
| Digital export | USB-C for data transfer |
| Acoustic measurements | |
| Measurement range (typical) | 15.4 to 115.2 dB SPL (± 1 dB SPL 2 kHz) 5.6 to 102.5 dB SPL (± 2 dB SPL 19 kHz) 28.4 to 131.1 dB SPL (± 1 dB SPL 35 kHz) 41.8 to 133.1 dB SPL (± 3 dB SPL 52 kHz) |
| Classification and quantification | |
| LeakQTM | Leak size scale (1-10) |
| PDQ ModeTM | – |
| MecQTM | – |
| Auto max/min dB gain | Auto |
| Frequency band selection | User selectable through user-made presets or manual entry |
| Battery | |
| Battery | Rechargeable and field replaceable Li-ion battery |
| Battery life | 6 hours |
| Battery charging time | 3 hours |
| Battery charging system | External (Bay charger) |
| Software | |
| Ease of use | Intuitive user interface |
| Acoustics: Show dB scale | On/Off |
| Acoustics: Min/Max dB | Manual/Auto |
| Acoustics: Profiles | – |
| Acoustics: High frequency | – |
| Acoustics: Multiple sources | Single source |
| Palette: Colors | 3: Grayscale, Ironbow, and Blue-Red |
| Palette: Overly transparency | Yes: 1-100 % |
| Grayscale mode | Yes |
| Centerpoint markers | On/Off |
| Trend graphs | Frequency and dB scale |
| Spotmarkers | dB level reading at center point of image |
| Leak values | LeakQTM scale (1-10) |
| Master admin menu | – |
| Annotation | Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure |
| Photo notes | Up to 4 photos notes for reference |
| Asset inspection status | – |
| Asset ID | Text input and automatic QR code based asset ID identification |
| Actions annotation | – |
| Other | – |
| General specifications | |
| Tripod holder / connector | – |
| USB | 1 x USB-C |
| Wireless | – |
| Operating Temperature | -10 to 45 °C (14 to 113 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) without batteries installed |
| Relative humidity | 10 to 95 % non-condensing |
| Size (H x W x L) | 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) | 2.1 kg (4.6 pounds) |
| Ingress Protection (IP) | IP40 |
| Warranty | 2 year |
| Fluke Premium Care | Premium Care Standard2 |
| Self-diagnostic notification | Array-health test to identify when microphone array needs attention |
| Supported languages | Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| RoHS compliant | Yes |
| Safety | |
| General safety | IEC 61010-1: Pollution degree 2 |
| Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting and Communication) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
