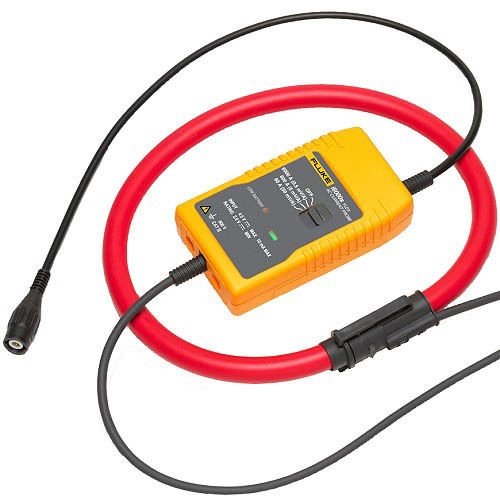

Fluke i6000sFlex AC Current Probe
SKU: FLUI6000SFLEX-36
I6000SFLEX-36
DESCRIPTION
Specifications
Includes
Shipping & Delivery
Fluke i6000sFlex AC Current Probe
The i6000sflex is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 6000A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.
Discover the Fluke i6000sFlex AC Current Probe at Mektronics Australia – your trusted source for quality tools and equipment!
| Electrical Characteristics | |
| Current ranges | 60 A / 600 A / 6000 A AC rms |
| Output sensitivity (AC coupled) | 50 mV /5 mV / 0.5 mV per A |
| Load impedance | 100 kOhm minimum |
| Accuracy (at +25°C) | ±1% of range (45 – 65 Hz) |
| Linearity (10% to 100% of range) | ±0.2% of reading |
| Noise | 8 mV AC rms (60 A) |
| 2 mV AC rms (600/6000 A) | |
| Frequency range | 10 Hz to 50 kHz (-3 dB) |
| Phase error | < ±1° (45 – 65 Hz) |
| ±10° (at 20 kHz) | |
| Position sensitivity (with cable > 25 mm from the coupling) | ±2% of range |
| External field (with cable > 200 mm from the head) | ±1% of range |
| Power supply | 2 x AA MN 1500 LR6 alkaline |
| 400 Hours, low battery indicator or dedicated ext power supply | |
| Temperature coefficient | ±0.08% of reading per ° C |
| Working voltage (see Safety Standards section) | 600 V AC rms or DC |
| General Characteristics | |
| Head cable length (double insulated) | 610 mm (24 in) I6000s Flex-24 |
| 915 mm (36 in) I6000s Flex-36 | |
| Head cable diameter | 14.3 mm |
| Head bend radius | 38.1 mm |
| Cable length (head to electronics) | 2 m |
| Output connection | 0.5 m cable terminated with safety BNC connector |
| Supplied with 4 mm safety plug adaptor | |
| Operating temperature range | -20 to +90°C (head) |
| -20 to +85°C (electronics) | |
| Storage temperature range | -40 to +105°C (head) |
| -20 to +85°C (electronics) | |
| Operating humidity | 15% to 85% (non condensing) |
| Weight | 180 g (head), 190 g (electronics) |
| Safety Standards | |
| BS EN 61010 | 1: 2001 |
| BS EN 61010 | 2-032: 2002 |
| BS EN 61010 | 031: 2002 |
| 600 V rms, Category III, Pollution degree 2 | |
| EMC standards | BS EN 61326: 1998 +A1, A2, and A3 |
| Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz | |
| Electrical Characteristics | |
| Current ranges | 60 A / 600 A / 6000 A AC rms |
| Output sensitivity (AC coupled) | 50 mV /5 mV / 0.5 mV per A |
| Load impedance | 100 kOhm minimum |
| Accuracy (at +25°C) | ±1% of range (45 – 65 Hz) |
| Linearity (10% to 100% of range) | ±0.2% of reading |
| Noise | 8 mV AC rms (60 A) |
| 2 mV AC rms (600/6000 A) | |
| Frequency range | 10 Hz to 50 kHz (-3 dB) |
| Phase error | < ±1° (45 – 65 Hz) |
| ±10° (at 20 kHz) | |
| Position sensitivity (with cable > 25 mm from the coupling) | ±2% of range |
| External field (with cable > 200 mm from the head) | ±1% of range |
| Power supply | 2 x AA MN 1500 LR6 alkaline |
| 400 Hours, low battery indicator or dedicated ext power supply | |
| Temperature coefficient | ±0.08% of reading per ° C |
| Working voltage (see Safety Standards section) | 600 V AC rms or DC |
| General Characteristics | |
| Head cable length (double insulated) | 610 mm (24 in) I6000s Flex-24 |
| 915 mm (36 in) I6000s Flex-36 | |
| Head cable diameter | 14.3 mm |
| Head bend radius | 38.1 mm |
| Cable length (head to electronics) | 2 m |
| Output connection | 0.5 m cable terminated with safety BNC connector |
| Supplied with 4 mm safety plug adaptor | |
| Operating temperature range | -20 to +90°C (head) |
| -20 to +85°C (electronics) | |
| Storage temperature range | -40 to +105°C (head) |
| -20 to +85°C (electronics) | |
| Operating humidity | 15% to 85% (non condensing) |
| Weight | 180 g (head), 190 g (electronics) |
| Safety Standards | |
| BS EN 61010 | 1: 2001 |
| BS EN 61010 | 2-032: 2002 |
| BS EN 61010 | 031: 2002 |
| 600 V rms, Category III, Pollution degree 2 | |
| EMC standards | BS EN 61326: 1998 +A1, A2, and A3 |
| Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz | |
Fluke-i6000s Flex
AC Current Probe
