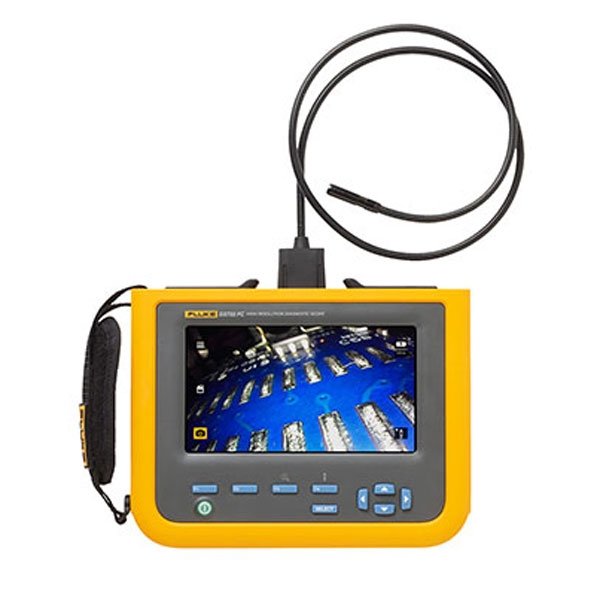

Fluke High Resolution Diagnostic Videoscope With FC FLK-DS703FC
SKU: FLUFLK-DS703FC
FLK-DS703 FC
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke High Resolution Diagnostic Videoscope With FC FLK-DS703FC
The Fluke DS703 FC Video Borescope has been updated with improved battery charging and management and can now last up to 4 hours on a single charge.
7” capacitive touch screen for accurate diagnostics in difficult to reach spaces. 720p video recording inspection camera. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe.
Save time with the Fluke Connect® system
Wirelessly sync images directly from your diagnostic scope to the Fluke Connect® system. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real-time collaboration between team members.
Expand the flexibility of your video borescope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM, probes as long as 20 meters, and a new camera probe with a 180° degree articulating head. Equip yourself with the right probe for your environment.
Discover the Fluke High Resolution Diagnostic Videoscope With FC FLK-DS703FC at Mektronics Australia – your trusted source for quality tools and equipment!
-
Bright 7" high resolution LCD touch screen
-
High Definition, dual view imaging probe and adjustable light to provide a clear image
-
Variety of rugged and high-resolution accessory probes available to address your specific application needs
-
Improved battery charging and management
-
Macro to micro zoom
-
Up-is-Up™ technology for an appropriate orientation, regardless of the probe location or position
-
Fluke Connect™ support including wireless image transfer
| Videoscope probe | |
| Length | 1.2 meter (3.94 feet) |
| Type | Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth |
| Diameter | 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available |
| Material | Elastomer coated steel |
| Lighting | Adjustable LED, on front, one side |
| Illumination | 53 Lux |
| Up is Up™ Technology | Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only |
| Camera | |
| Dual view camera, forward and side | |
| Resolution | 1200 x 720 (864,000 pixels) |
| Still image format | JPG |
| Video Recording Format | AVI |
| Video Output Format | MPEG compression |
| Digital zoom | Adjustable from 1x to 8x zoom |
| Field of view | 68° |
| Depth of field | 25 mm to infinity |
| Video resolution | 720 p |
| Minimum focus distance | 10 mm |
| Focus Type | Fixed |
| Rotation | 180° |
| Streaming video | Via HDMI and Fluke Connect™ |
| LCD Screen | |
| Touch Screen | Capacitive touch screen |
| Size | 7 inch (17.79 cm) |
| Refresh rate | 30 hz |
| UpisUp™ technology | Real-time upright adjustment for image |
| LED backlight | Adjust display brightness for optimal viewing |
| Communication | |
| Wireless Interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
| Data Transfer | USB and micro HDMI cable |
| Fluke Connect™ | Save and share images directly from the Videoscope. Attach images or video to an asset record or work order. |
| Instant upload to the cloud | Yes, with Fluke Connect™ |
| General Features | |
| Color palettes | Visible light, grayscale or inverted |
| Internal memory | 6 GB |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Carrying case | Protective EVA case |
| Strap | Hand strap and neck strap |
| Power adapter | AC adapter/battery charger input |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Battery life | 3 hours at 50 % LED brightness |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Weight | 1.95 lbs (0.88 Kg) |
| IP Rating | |
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
| Probe | IP68, dust tight and immersion of 1 meter or more depth |
| Drop Test | 2 meter (6.56 feet) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (113 °F) for less than 10 minutes |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | 90 % at 35 °C (95 °F) 75 % at 40 °C (104 °F) 45 % at 50 °C (122 °F) |
| Warranty | 2 years |
Probe Accessories Specifications
| Probe | Views | Up-is-Up | DS701-Display resolution | DS703-Display Resolution | Imager Resolution |
| Standard Probe. 8.5mm 1.2M | Dual | Yes | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 3.8mm , 1M | Forward | X | 800 X 600 | 1200 X 720 | 720 x 488 |
| 8.5mm, 3M | Dual | Yes | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 5.5mm, 1M | Dual | X | 800 X 600 | 1200 X 720 | 640 x 480 |
| 8.5mm UV, 1M | Dual | X | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 9mm, 20M | Forward | X | 800 X 600 | 1200 X 720 | 720 x 488 |
