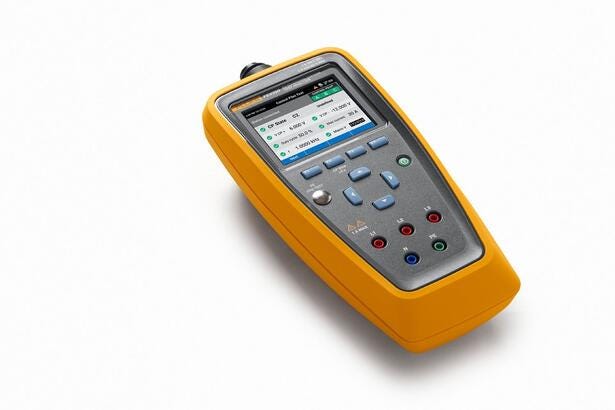

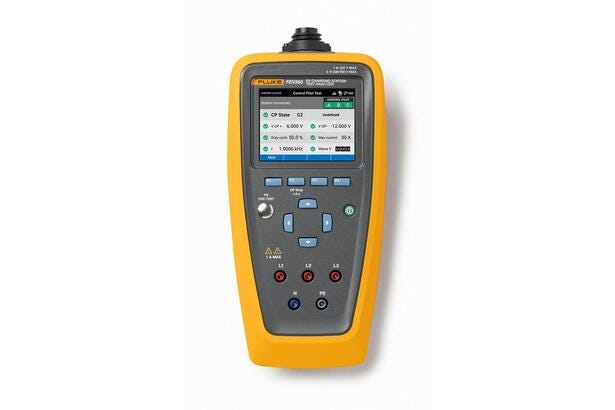

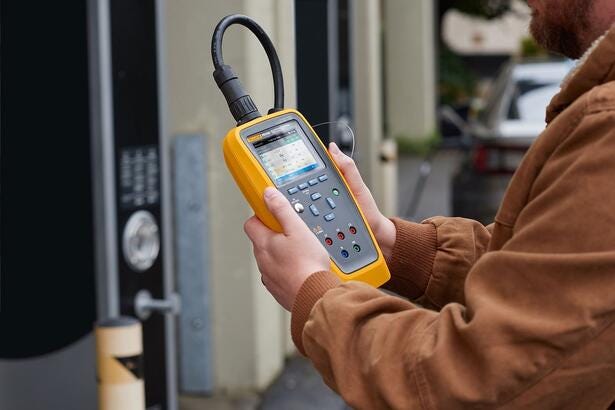

Fluke FEV350 EV Charging Station Analyzer Kit for Type 1 and 2 Connectors with TruTest Software Licence
The Fluke FEV350 is a complete solution for safety and performance testing of AC EV charging stations with Type 2 or Type 1 connectors. It is designed for technicians who need to perform and document multiple tests quickly and efficiently without carrying multiple tools. Expert Mode streamlines operation for experienced users by eliminating instructional pop-ups, while Auto-Sequence enables all sub-tests within a measurement function to be run with a single button press. Expanded configuration options further extend compatibility across a wide range of electrical systems and regional requirements, making the FEV350 an adaptable and efficient tool for EVSE testing and reporting.
Available measurements:
-
PE (protective) earth pre-test to ensure no dangerous voltage is present
-
Visual Inspection
-
30 Ma Rcd + 6 Ma Rdc-Dd Trip Test
-
Nominal Voltage + Phase Sequence
-
Auto Control Pilot (Cp) with Waveform Analysis
-
Proximity Pilot
-
Error Testing
Supported measurements with compatible Fluke multifunction testers:
-
Earth Bond
-
Insulation
-
Loop/Line Impedance
With TruTest™ software, spend less time processing test results and compiling reports:
-
Easily manage measurement data from EVSE inspections
-
Quickly create inspections and reports
-
Control Pilot waveform analysis with easy pass/fail visuals
-
Compare site data to previous site data to see changes over time
-
Quickly access the latest firmware to update your FEV350
-
Faster setup through TruTest™ bi-directional support
-
Download a free 60-day demo version of TruTest™. Purchase a software key to unlock the Lite or Advanced version.
The FEV350 integrates seamlessly with the TruTest™ EV Charging software module for both documentation and reporting. Through wireless Bluetooth® connection, the FEV350 works alongside compatible Fluke multifunction installation testers, providing supporting measurements, wiring configuration diagrams, and information screens. With new bi-directional communication, customized test plans can be created in TruTest™ and pushed directly to the FEV350, reducing setup time and eliminating re-entry of project data. Predetermined test plans and clear pass/fail indications simplify analysis and speed up testing, while full integration with TruTest™ ensures reliable reporting. The FEV350 EV Charging Station Analyzer is designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.
Discover the Fluke FEV350 EV Charging Station Analyzer Kit for Type 1 and 2 Connectors with TruTest Software Licence at Mektronics Australia – your trusted source for quality tools and equipment!
-
Create and push test plans directly from TruTest™ for faster setup
-
Run GFCI trip tests to verify safety performance
-
Capture pass/fail results for quick compliance decisions
-
Automate control pilot (CP) signal checks with waveform analysis
-
Save time with guided workflows and automated sequences
-

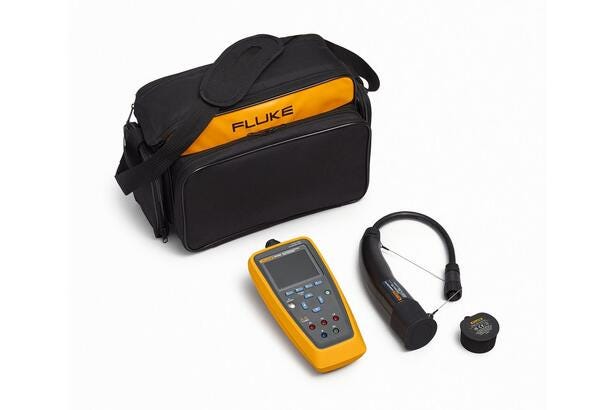

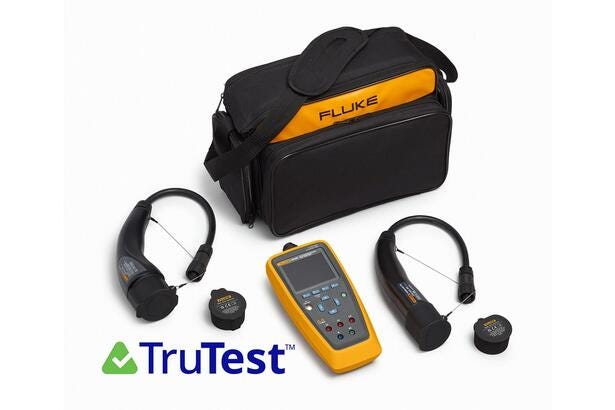

FEV350/BASIC Test Analyzer
-
FEV300-CON-TY1
-
FEV300-CON-TY2
-
Zero Adapter/TY1
-
Zero Adapter/TY2
-
TPAK Magnetic Hanger
-
Soft Carrying Bag
-
TruTest Software License
Test function specifications:
The operational error specification reference for digit counts is defined as ±(% of reading + digit counts). The operational error for other specifications that reference a % are defined as the % of the reading unless otherwise specified. The operational error specification reference temperature for all readings is 23 °C ±5K temperature coefficient of 0.1 %/°C.
| Test/function | Display range | Measurement range | Operational error | Nominal values | ||||||
| PE pre-test | ||||||||||
| Touch voltage, safe range | ≤50 V AC/DC | -50% | -- | |||||||
| Touch voltage, dangerous range | >50 V AC/DC | +0% | -- | |||||||
| Visual inspection | See checklist | |||||||||
| Earth bond, RLO[1] | -- | @ >200 mA Itest | ||||||||
| Insulation, RINS[1] | -- | @ 500 V Unom | ||||||||
| Loop/Line impedance[1] | -- | no trip loop | ||||||||
| RCD/RDC-DD pre-test | ||||||||||
| Uf | 5V to 110V |
-(0 % + 0 digits), +(10 % + 3 digits) |
@ Itest 0.33 x IΔN AC |
|||||||
| Re | 166 Ω to 3667 Ω | -10 % to +15 % | ||||||||
| RCD test (IΔN 30 mA) | ||||||||||
| RCD type A, B/B+, RDC-PD | -- | @ mains 100 V AC to 253 V AC | ||||||||
| RCD trip time with AC, half wave, DC (0°, 180°) | ||||||||||
| x0.5 (30 mA) | 0 ms to 510 ms | ±(2 % + 3 ms) | ||||||||
| x1 (30 mA) |
TN: 0 ms to 310 ms TT @120 V: 0 ms to 310 ms TT @230 V: 0 ms to 210 ms |
|||||||||
| x5 (30 mA) | 0 ms to 50 ms | |||||||||
| Ramp current (0°, 180°) | ||||||||||
| AC @RCD type B/B+ |
12.0 mA to 36.0 mA, 17 steps with 1.5 mA |
±1.5 mA | ||||||||
| AC half wave @RCD type A and RCD-PD |
7.5 mA to 48.0 mA, 28 steps with 1.5 mA |
|||||||||
| DC @RCD type B/B+ |
12.0 mA to 66.0 mA, 37 steps with 1.5 mA |
|||||||||
| Test/function | Display range | Measurement range | Operational error | Nominal values | ||||||
| RDC-DD test (IΔN +6 mA EV) | ||||||||||
| Trip time (0°, 180°) | @ mains 100 V AC to 253 V AC | |||||||||
| +3 mA DC | 0.000 s to 10.100 s | ±(2 % + 3 ms) | ||||||||
| +6 mA DC | ||||||||||
| +60 mA DC | 0 ms to 310 ms | |||||||||
| +200 mA DC | 0 ms to 110 ms | |||||||||
| Ramp current (0°, 180°) |
smooth ramp 2.0 mA to 6.0 mA |
±0.6 mA | ||||||||
| Mains voltage | ||||||||||
| L-N, L-PE, N-PE | 0 V to 280 V | 0V to 253 V | ±(3 % + 3 digits) | RIN L-N: >30 MΩ, RIN L-PE: >10 MΩ, 40 Hz to 70 Hz, crest factor 2, Vmax peak: 560 V |
||||||
| L-L | 0 V to 490 V | 0 V to 440 V | RIN L-L: >30 MΩ, 40 Hz to 70 Hz, crest factor 2, Vmax peak: 980 V |
|||||||
| Frequency | 40.00 Hz to 70.00 Hz | ±0.20 Hz | -- | |||||||
| Phase sequence | right, left, none | -- |
voltage imbalance: <20 % voltage difference between phases, phase imbalance: 120° ±10° |
50 V to 280 V phase to N |
||||||
| CP signal analysis | ||||||||||
| Voltage |
-15.000 V to 15.000 V |
-15.000 V to -2.000 V, 2.000 V to 15.000 V |
±0.5 % |
RIN: 1 MΩ 0.9000 kHz to 1.1000 kHz; UCP+ >2.000 V, UCP- <-2.000 V |
||||||
| PWM duty cycle | 2.0 % to 98.0 % | 3.0 % to 97.0 % | ±5 digits | |||||||
| Current indication | 0.0 A to 80.0 A | -- | Based on duty cycle[3] | |||||||
| Frequency | 0.9000 kHz to 1.1000 kHz | 0.001 | ||||||||
| CP state indication | A, B, C, D | -- | Based on voltage[2] | |||||||
| x1, x2 | -- | Based on frequency[2] | ||||||||
| Test/function | Display range | Measurement range | Operational error | Nominal values | |||||
| CP state simulation | A | -- | >900 kΩ ±0.2 % | -- | |||||
| B |
Upper level: 4610 Ω ±0.2 %[2] Nominal level: 2740 Ω ±0.2 %[2] Lower level: 1870 Ω ±0.2 %[2] |
||||||||
| C |
Upper level: 1723 Ω ±0.2 %[2] Nominal level: 1300 Ω ±0.2 %[2] Lower level: 909 Ω ±0.2 %[2] |
||||||||
| D |
Upper level: 448 Ω ±0.2 %[2] Nominal level: 270 Ω ±0.2 %[2] Lower level: 140 Ω ±0.2 %[2] |
||||||||
| PP state simulation | open | -- | >900 kΩ | -- | |||||
| 13 A | 1500 Ω ±1.5 %[2] | ||||||||
| 20 A | 680 Ω ±1.5 %[2] | ||||||||
| 32 A | 220 Ω ±1.5 %[2] | ||||||||
| 63 (70) A | 100 Ω ±1.5 %2] | ||||||||
| Error | <60 Ω (56 Ω ±5 %) | ||||||||
| Fault simulation | PE error (earth fault/PE open) | -- | -- | -- | |||||
| CP error E @ 0 Ω or 120 Ω |
-0 Ω/ +2 Ω, 120 Ω ±1.5 %[2] |
||||||||
| Diode short | -- | ||||||||
| Error D | |||||||||
|
PP voltage measurement (Type 2 with socket) |
0.10 V to 15.00 V | ±(1.0 % + 3 digits) | RIN: 1 MΩ | ||||||
| Test/function | Display range | Measurement range | Operational error | Nominal values | ||||||
| PP resistor measurement | ||||||||||
| Type 2 with cable (Rc) | 50.0 Ω to 499.9 Ω 500 Ω to 5000 Ω |
±1.0 % | -- | |||||||
| Type 1 with cable (S3, R6, R7) | ||||||||||
| CP resistor measurement (R1) | 800 Ω to 1200 Ω | ±1.0 % | -- | |||||||
|
[1] The test requires a multi-function tester (MFT). See the documentation of the MFT for the display range, measurement range, and operational error or accuracy values. [2] According to IEC 61851-1. [3] According to table A.8 of IEC 61851-1. |
||||||||||
| General Specifications | ||||||||||
| Input electrical ratings |
1 Φ: 250 V max 3 Φ: 230/400V max, 50/60 Hz, max 1 A |
|||||||||
| Internal power consumption | 3 W max | |||||||||
| Size (H x W x D) |
~(263 mm x 123 mm x 63 mm) ~(10.35 in x 4.84 in x 2.48 in), without the TY1 or TY2 plug |
|||||||||
| Weight |
~0.9 kg, without the TY1 or TY2 plug ~1.4 kg, with the TY1 or TY2 plug |
|||||||||
| Battery | 4 x AA/IEC LR6 alkaline or IEC HR6 NiMH | |||||||||
| Temperature | ||||||||||
| Operating | -10 °C to 40 °C (14 °F to 104 °F) | |||||||||
| Storage | -20 °C to 50 °C (-4 °F to 122 °F) | |||||||||
| Relative humidity | ||||||||||
| Operating |
10 % to 85 %, 0 °C to 40 °C (32 °F to 104 °F), non-condensing |
|||||||||
| Storage | up to 95 % | |||||||||
| Wireless radio, Bluetooth 5.0 | ||||||||||
| Frequency range | 2412 MHz to 2462 MHz | |||||||||
| Output power | <100 mW | |||||||||
| Altitude | 3000 m | |||||||||
| Safety | IEC 61010-1: Pollution Degree 2, IEC 61010-2-030, CAT II 300 V, Protection Class II | |||||||||
| Performance | IEC 61557-1, IEC 61557-6, IEC 61557-7, IEC 61557-10 | |||||||||
| Ingress protection | IEC 60529: IP40 | |||||||||
|
Electromagnetic Compatibility (EMC) International IEC 61326-1: Basic Electromagnetic Environment, CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
