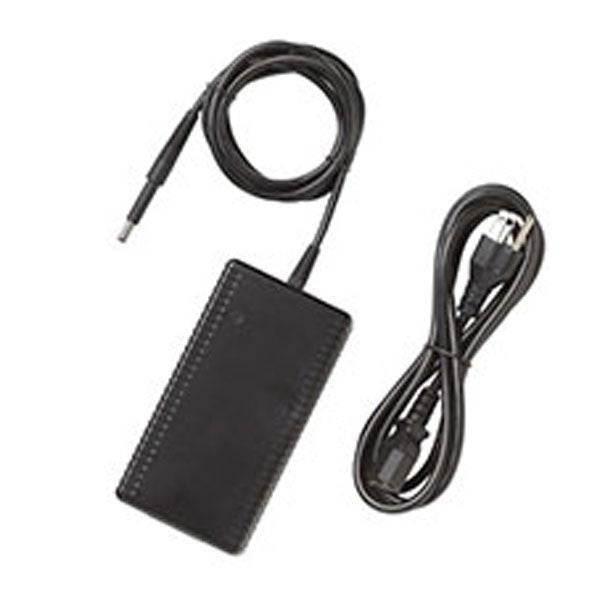

Fluke BC500 AC Power Charger

Input
Nominal input voltage ................ 100 Vac to 240 Vac, ±10 %
Input current ............................... 0.35 A at max. load
Nominal input frequency ............ 50 Hz to 60 Hz ±5 %
Mains inlet .................................. IEC 60320-1 type C8
Input power, no load................... <0.1 W (@ 115 / 230 Vac)
Output
Output voltage............................ 18 Vdc ±5 %
Output current ............................ 0 mA to 840 mA
Output cable length .................... 2 m (6.5 ft)
Output connector ....................... 5.5 mm outer diameter, per DIN45232
Output polarity............................ Inner contact positive, outer contact negative
Physical characteristics
Dimensions of main unit............. 79 mm x 149 mm x 49 mm
Housing material ........................ Heat resistant ABS
Color (housing and cable) ..........Black
Weight ........................................ 0.35 kg
Ingress Protection ...................... IEC 60529, IP40
Environmental
Operating temperature ............... 0 °C to 50 °C, up to 90 % rel. humidity, no
                                                      condensation
Storage temperature ..................-40 °C to +70 °C, 10 % to 95 % rel. humidity
Max. altitude............................... 2000 m (6562 ft) above sea-level
Included accessories
Power cord ................................. 2-wire cord, with female connector acc.
                                                      IEC60320 style C7
Mains cord length....................... 1.8 m (6 ft), male to female
Safety ............................................. IEC 61010-1, IEC 61010-2-030: CAT IV 600 V,
                                                          Pollution Degree 2
Electromagnetic
Compatibility (EMC) ..................... IEC 61326-1: Industrial Electromagnetic
                                                       Environment
