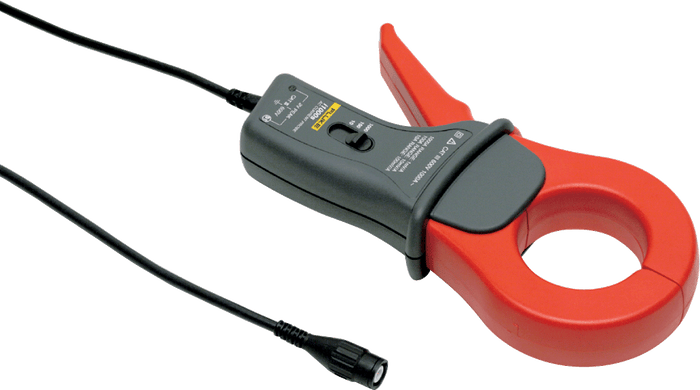

Image for Illustrative Purposes Only
Fluke Ac Current Clamp I1000S
SKU: FLUI1000S
I1000S
Features
Specifications
Shipping & Delivery
The Fluke i1000s is a clamp-on ac current probe designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics. This Current Probe provides the following features:
-
Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
-
A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
-
Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
-
Can be used with Multimeters with optional PM9081/001 BNC/Banana adapter
-
One year warranty
Discover the Fluke Ac Current Clamp I1000S at Mektronics Australia – your trusted source for quality tools and equipment!
| Nominal current range |
10 A |
| Continuous current range |
0.1 A - 10 A |
| Maximum Non-Destructive Current | 2000 A |
| Lowest measurable current | 0.1 |
| Basic Accuracy |
1% + 1 A |
| Useable frequency | 5 Hz - 100 kHz |
| Output level(s) |
100 mv/A |
| Safety |
CAT III, 600 V |
| Maximum voltage | 600 V AC |
|
Specifications |
|
| Warranty | 1 year |
| Maximum conductor diameter | 54 mm |
| Output cable length | 1.6 m |
| BNC Adapter | Yes |
