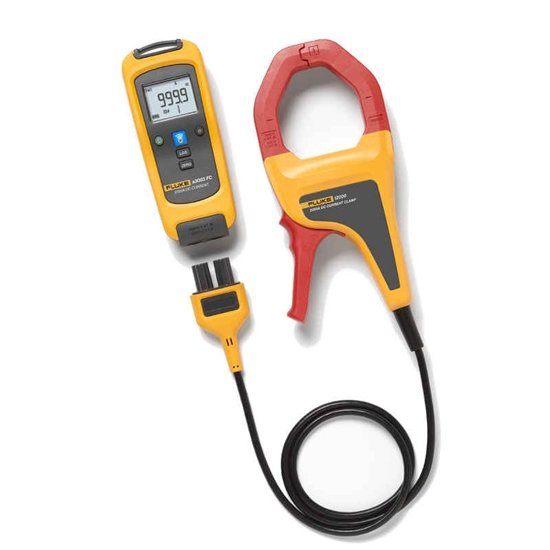

Fluke A3003FC Wireless 2000 A DC Current Clamp Meter
SKU: FLUFLK-A3003FC
FLK-A3003FC
DESCRIPTION
Specifications
Shipping & Delivery
Fluke A3003FC Wireless 2000 A DC Current Clamp Meter
The Fluke a3003 FC Wireless A DC Current Clamp Meter is part of the innovative family of Fluke wireless test tools.
It is ideal for applications that command for measurements up to 2000 A DC. The extra wide jaw provides the ability to easily clamp around large conductors used in industries such as mining or utility.
Equipped with Fluke Connect, readings can be safely analyzed from a distance in hazardous work environments.
Includes:
-
DC current module
-
Batteries
-
Hanging strap magnet
-
Quick start guide
The a3003 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
- Fluke 3000 FC Digital Multimeter
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
- TiX560 and TiX520
The a3003 FC Wireless 2000 A DC Current Clamp, with its extra-wide jaw, easily clamps around large conductors, typically found in mining, utility, marine, rail or other heavy manufacturing industries where large DC currents or large current carrying cables are found.
The Fluke a3003 FC main features include:
- Measures from 10 A to 2000 A DC
- Large jaw size (64 mm) for measuring large, high current conductors
- Use the logging function for the recording and saving up to 65,000 measurements
- Includes magnetic hanging strap
Discover the Fluke A3003FC Wireless 2000 A DC Current Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!
| DC Current Function | |
| Range | 1.0A to 999.9 A DC 1000 A to 2000 A DC |
| Resolution | 0.1 A 1 A |
| Accuracy | 2% ± 5 digits 2.5% ± 5 digits |
| Specifications | |
| LCD w/backlight | 3 ½ digits |
| Log rate/Interval | 1 sec minimum/adjustable by PC or front pannel |
| Battery type | 2 AA NEDA 15 A IEC LR6 |
| Battery life | 120 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHz ISM Band |
| RF communication range | Open air, unobstructed: Up to 20 m Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C) |
| Operative humidity | 90% at 35°C 75% at 40°C 45% at 50°C |
| Altitude | Operating 2,000 m Storage 12,000 m |
| EMC | EN 61326-1:2013 |
| Safety compliance | IEC 61010-1 600 V CAT IV / 1000 V CAT III 3rd edition |
| Certifications | CSA C-US CE FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Jaw opening | 64 mm |
| Size (HxWxD) | 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
| Weight | .65 kg (1.75 lb) |
| Note: Not compatible with Fluke CNX test tools. | |
