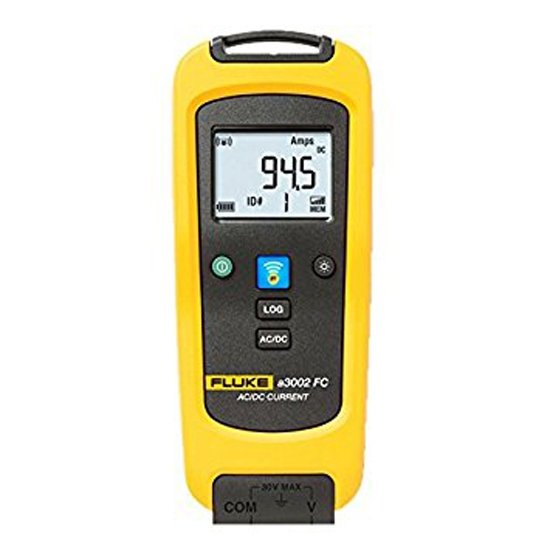

Fluke a3002 FC Wireless AC/DC Current Module
Equipped with the a3002 wireless AC/DC current module and an optional current clamp, you can view measurements in high current environments from a safe distance. Use the a3002 with a Fluke i410 or i1010 current clamp (sold separately) as a standalone meter or to relay measurements to a Fluke Connect enabled wireless multimeter, mobile device, or a PC. Log data to find intermittent faults or trends, upload it to a PC or mobile device for further analysis, or save to the cloud for future reference.
Discover the Fluke a3002 FC Wireless AC/DC Current Module at Mektronics Australia – your trusted source for quality tools and equipment!
The Fluke a3002 FC Wireless AC/DC Current Clamp Module is designed to be used with the i410 or i1010 AC/DC current clamps (not included with module). The a3002 FC AC/DC current module wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
- Fluke 3000 FC DMM
- Fluke Ti200/300/400Thermal Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
The Fluke a3002 FC main features include:
- Measure up to 400 AAC or 400 ADC with i410 (sold separately)
- Measure up to 600 AAC or 1000 ADC with i1010 (sold separately)
- Use as a standalone meter or as part of the system
- Logging function for recording and saving up to 65,000 readings
- True-RMS AC/DC Current Module
- Magnetic hanging strap
| AC/DC Current Function | ||
| A DC | Range / resolution | 1000 A / 0.1 A |
| Accuracy1 | (0.5% + 3) | |
| A AC | Range / resolution | 600.0 A / 0.1 A |
| Accuracy1 | (1.0% + 3) | |
| 1. AC accuracy is specified from 45 Hz to 1000 Hz | ||
| Specifications | ||
| Maximum voltage between terminal and earth ground (module) | 30 V DC or AC RMS | |
| LCD w/backlight | 3½ digits, 6000 counts, 4/sec update rate | |
| Log rate/Interval | Adjustable by PC from 1 sec to 1 hr, default 1 min | |
| Battery type | 2 AA Alkaline batteries, NEDA 15A, IEC LR6 | |
| Battery life | 400 hours minimum | |
| Memory | Record up to 65,000 readings | |
| RF communications | 2.4 GHz ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m | |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Temperature coefficient | 0.1 X (specified accuracy) / °C (< 18°C or > 28°C) | |
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) |
|
| EMC | IEC 61236-1, Portable | |
| Safety compliance | Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2 | |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE | |
| Ingress Protection (IP) rating | IP42 | |
| Size (HxWxD) | 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in) | |
| Weight | 0.255 kg (9 oz) | |
| Warranty | Three years | |
| Not compatible with Fluke CNX test tools | ||
