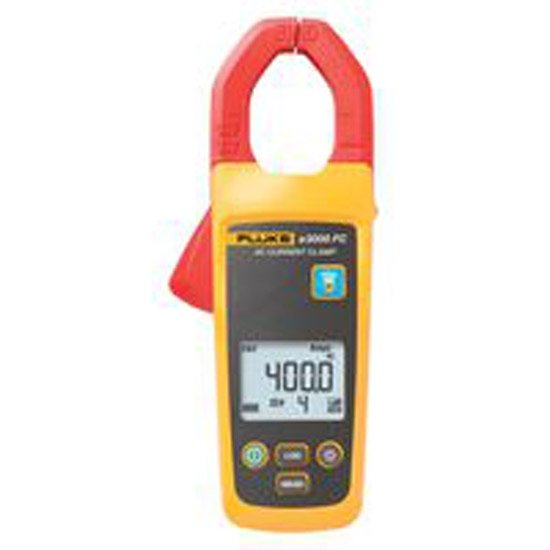

Fluke a3000 FC Wireless AC Current Clamp Module
The FLK-A3000 FC is a Wireless AC Current Clamp Module, fully-functional true-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units. The Fluke-A3000 FC wireless AC current clamp module is one member of a family of wireless test tools that let you share test data using the Fluke Connect™ app with ShareLive™ video call. Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the a3000 FC current clamp module or any of the other Fluke Connect remote modules and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance. Better still, the Fluke Connect test tools can send measurement data to smartphone, so you can save and share measurements from the field with your team anytime, from anywhere. Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have meter connected.
Discover the Fluke a3000 FC Wireless AC Current Clamp Module at Mektronics Australia – your trusted source for quality tools and equipment!
- True-RMS AC clamp meter
- Measure up to 400A AC
- Use as a standalone meter or as part of system
- Logging function for recording and saving up to 65,000 readings
- Inrush function
- Test & Measurement
- True-RMS AC Clamp Meter
Range | 0.5 A to 400.0 A | |
Resolution | 0.1 A | |
Accuracy | 400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz) | |
Inrush | Max displayed reading | 999.9A |
Crest factor (50 Hz/60 Hz) | 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2 % for C.F. > 2 |
|
LCD w/backlight | 3½ digits | |
Log rate/interval | 1 sec minimum/adjustable by PC | |
Battery type | 2 AA, NEDA 15 A, IEC LR6 | |
Battery life | 400 hours | |
Memory | Record up to 65,000 readings | |
RF communications | 2.4 GHZ ISM Band | |
RF communication range | Open air, unobstructed | Up to 20 m |
Obstructed, sheetrock wall | Up to 6.5 m | |
Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m | |
Operating temperature | -10°C to +50°C | |
Storage temperature | -40°C to +60°C | |
Temperature coefficient | Add 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) | |
Operating humidity | 90% at 35°C 75% at 40°C 45% at 50°C |
|
Altitude | Operating | 2,000 m |
Storage | 12,000 m | |
EMC | EN 61326-1:2006 | |
Safety compliance | IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2 | |
Safety rating | CAT III 600 V | |
Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE | |
Ingress Protection (IP) rating | IP30 | |
Pollution Degree | 2 | |
Jaw opening | 34 mm (1.33 in) | |
Size (HxWxD) | 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in) | |
Weight | .22 kg (8 oz) | |
Warranty | Three years | |
Note: Not compatible with Fluke CNX test tools |
