Fluke 922 Airflow Meter Kit
SKU: FLU922/KIT
922/KIT
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Fluke 922 Airflow Meter Kit
The Fluke 922 Airflow Meter was designed and built for how (and where) you do your job, with performance, ruggedness and ease of use, setting the Fluke 922 apart from the competition. The bright white display and ruggedized holster and wrist strap let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface means you can measure pressure, velocity, or airflow at the push of a button. The Fluke 922 helps you analyze airflow. Easily.
Discover the Fluke 922 Airflow Meter Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Powerful meter provides differential and static pressure, air velocity and flow readings
-
Convenient colored hoses help proper interpretation of pressure readings
-
Easy to use without sacrificing performance
-
Bright, backlit display for clear viewing in all environments
-
User-defined duct shape and size for maximum airflow accuracy
-
Resolution down to 0.001 in H2O
-
99 point data storage capacity
-
Min/Max/Average/Hold functions for easy data analysis
- Auto power off saves battery life

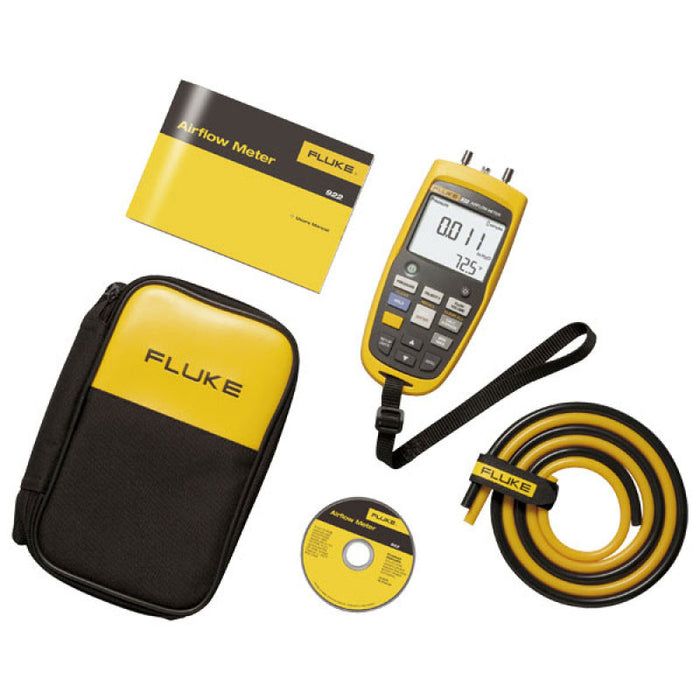

- Fluke 922 Airflow Meter
- 12 inch pitot tube
- Two Rubber Hoses
- TPak Magnetic Strip
- TPak Strap, 9 inches
- TPak Latch Tab
- Four AA Batteries 1.5 V Alkaline
- Soft carrying case
| Technical Specifications | ||
| Air pressure | Range / Resolution / Accuracy | ±4000 Pascals / 1 Pascal / ±1% + 1 Pascal |
| ±16 inH2O/ 0.001 inH2O/±1% + 0.01 inH2O | ||
| ±400 mmH2O/ 0.1 mmH2O / ±1% + 0.1 mmH2O | ||
| ±40 mbar /0.01 mbar / ±1% + 0.01 mbar | ||
| ±0.6 psi / 0.0001 psi /±1% + 0.0001 psi | ||
| Air velocity | Range / Resolution / Accuracy | 250 to 16,000 fpm / 1 fpm / ±2.5% of reading at 2000 fpm (10.00 m/s) |
| 1 to 80 m/s / 0.001 m/s / ±2.5% of reading at 2000 fpm (10.00 m/s) | ||
| Air flow (volume) | Range / Resolution / Accuracy | 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size |
| 0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size | ||
| 0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size | ||
| Temperature | Range / Resolution / Accuracy | 0°C to 50°C / ±1% + 2°C / 0.1°C |
| 32°F to 122°F / ±1% + 4°F / 0.1°F | ||
| General Specifications | ||
| Operating temperature | 0°C to +50°C (+32°F to +122°F) | |
| Storage temperature | -40°C to +60°C (-40°F to +140°F) | |
| Relative humidity | 0% to 90%, non-condensing | |
| IP rating | IP40 | |
| Operating altitude | 2000 m | |
| Storage altitude | 12000 m | |
| EMI, RFI, EMC | Meets requirements for EN61326-1 | |
| Vibration | MIL-PREF-28800F, Class 3 | |
| Max pressure at each port | 10 psi | |
| Data storage capacity | 99 readings | |
| Warranty | 2 years | |
| Power, battery life | Four AA batteries | |
| Battery life | 280 hours without backlight, 60 hours with backlight | |
