Fluke 87V Solar Tools Kit with 87V Max Digital Multimeter & Test Leads
SKU: FLUFLK-87VMAX-PVLEAD1
FLK-87VMAX-PVLEAD1
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Fluke 87V Solar Tools Kit with 87V Max Digital Multimeter & Test Leads

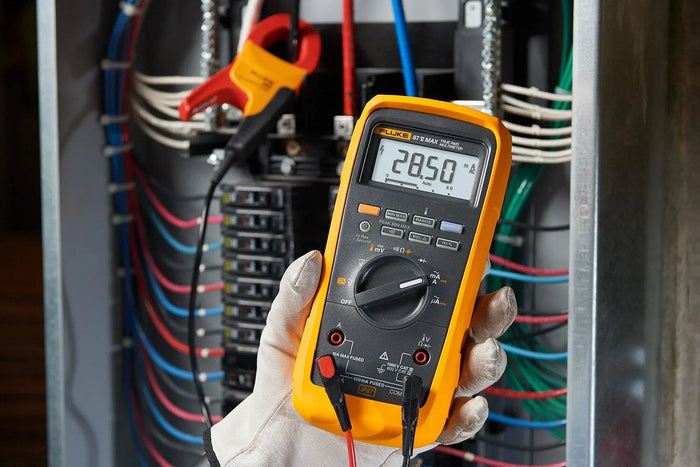

The 87V MAX is the ideal electrical troubleshooting solution for solar inverters, combiner boxes and battery storage systems. The 87V MAX is built with an IP67 rated, industrial-strength case and a removable holster. The holster doubles as a test probe holder for easier, one-handed operation. This meter is fully waterproof and dust proof keep working reliably no matter where your job takes you. Safely connect the Solar PV test leads to the meter to validate voltage from individual panels or a series of panels in a PV array.
Key functions of the solar clamp meter and Solar PV test leads:
-
Measure voltage of PV arrays safely and accurately
-
IP67 rated meter can withstand harsh outdoor environments
-
Meter is designed to survive drops up to 4-meters (13 feet)
-
Solar PV leads comply to IEC / EN 61010-031
Discover the Fluke 87V Solar Tools Kit with 87V Max Digital Multimeter & Test Leads at Mektronics Australia – your trusted source for quality tools and equipment!
-
Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
-

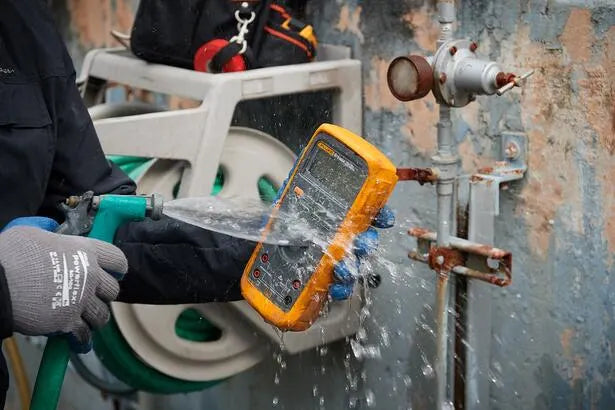

Waterproof, dustproof IP67 case for the most extreme work sites
-
Meter rated to CAT III 1000 V / CAT IV 600 V
-
Solar PV test lead sets are designed for use with meters that accept 4mm banana plugs, rated to CAT III 1000 V / CAT IV 600 V
-

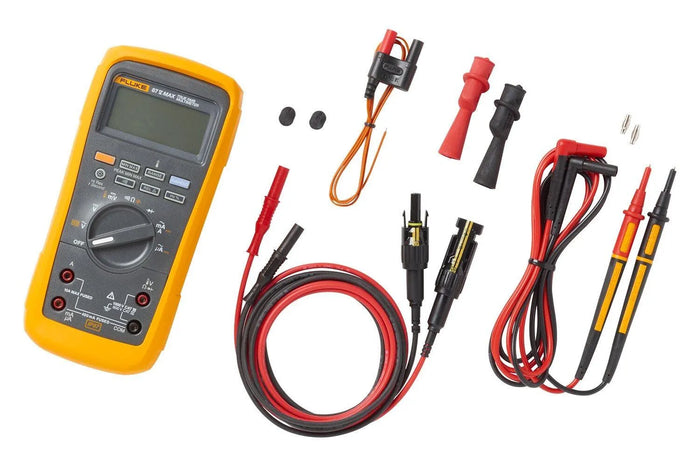

Fluke 87V MAX True-rms Digital Multimeter
-
TL175 TwistGuard® test leads
-
AC175 Alligator clips
-
80BK-A temperature probe
-
Removable holster with test lead storage
-
Three AA batteries (installed)
-
Pomona PVLEAD1 Solar PV Connector to 4 mm Test Lead Set
| Electrical Specifications | ||
| DC Voltage | Range | 0.1 mV to 1000 V |
| Accuracy | ±(0.05% + 1) | |
| Maximum resolution | 0.1 mV | |
| AC Voltage | Range | 0.1 mV to 1000 V |
| Accuracy | ±(0.7% + 4) true-rms | |
| AC bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz | |
| Maximum resolution | 0.1 mV | |
| DC Current | Range | 0.1 μA to 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) | |
| Maximum resolution | 0.1 µA | |
| AC Current | Range | 0.1 μA to 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.0% + 2) true-rms | |
| Maximum resolution | 0.1 µA | |
| Resistance | Range | 0.1 Ω to 50 MΩ |
| Accuracy | ±(0.2% + 1) | |
| Maximum resolution | 0.1 Ω | |
| Capacitance | Range | 0.01 nF to 9999 μF |
| Accuracy | ±(1% + 2) | |
| Maximum resolution | 0.01 nF | |
| Frequency | Range | 0.5 Hz to 199.99 kHz |
| Accuracy | ±(0.005% + 1) | |
| Maximum resolution | 0.01 Hz | |
| Duty cycle | Maximum duty cycle | 99.9% |
| Accuracy | ±(0.2% per kHz + 0.1%) | |
| Maximum resolution | 0.1% | |
| Temperature measurement range | –200.0 °C to 1090 °C (–328.0 °F to 1994.0 °F) excluding probe |
|
| 80 BK temperature probe | –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater (–40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater) |
|
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Maximum resolution | 0.01 nS | |
| Diode test | Range | 2 V |
| Resolution | 0.001V | |
| Accuracy | ±(1% + 1) | |
| Diagnostics and data storage | Peak Min/Max | 250 μS |
| Min/Max/Avg | Yes | |
| Reading hold/Auto (Touch) Hold | Yes | |
| Relative reference | Yes | |
| Display | Digital | 6000 counts updates 4/second 19,999 counts in high–resolution mode |
| Analog bar graph | 32 segments, updates 40/second | |
| Backlight | Two level | |
| Low pass filter (VFD measurements) | Yes | |
| Input Alert™ | Yes | |
| Safety Specifications | ||
| Safety rating | IEC61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V |
|
| Agency approvals | CE, CSA | |
| Mechanical and General Specifications | ||
| IP rating | IEC 60529: IP67 | |
| Power | Three AA batteries. 800 hours typical, without backlight | |
| Size | 6.0 x 10.1 x 21.5 cm (with holster) | |
| Weight | 698.5 g (with holster) | |
| Warranty | Limited lifetime | |
| Environmental Specifications | ||
| Operating temperature | -15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C | |
| Storage temperature | -40 °C to + 60 °C | |
| Humidity (without condensation) | 0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C) |
|
| Operating altitude | 2000 m | |
Specifications: Pomona PVLEAD1 MC4 to 4 mm Test Lead Set
| PVLEAD1 | PVLEAD3 | |
| MC4 to 4mm Test Lead Set | MC4 Solar Clamp Meter Test Lead Set | |
| Contact | Brass, Nickel Plated | Brass, Nickel Plated |
| Length | 60” | 36”, 12” |
| Voltage | CAT III 1000V, | CAT III 1000V, |
| CAT IV 600V | CAT IV 600V | |
| Current | 20 amp | 20 amp |
| Standards | IEC 61010-031 | IEC 61010-031 |
