Fluke 832 Laser Shaft Alignment Tool

SKU: FLU832ROW

FLUKE-832 ROW 6120984

$13,454.00

EX. GST

$14,799.40

INC GST

Out of stock: Available to order

Get a Price Match

own it from $10 a week with

DESCRIPTION

Features

Contents

Specifications

Shipping & Delivery

Fluke 832 Laser Shaft Alignment Tool

The Capabilities that Set Fluke 832 Apart

Faster setup, fewer steps

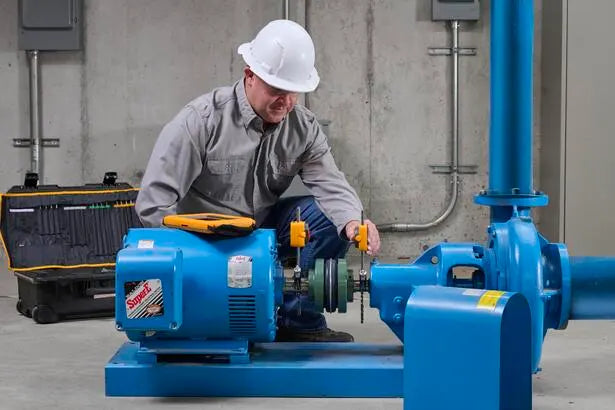

Faster setup, fewer steps Fluke 832 uses a single-laser, dual-detector system that makes shaft alignment quicker on standard rotating machines.

Skip the pre-alignment and go straight to measurement
Mount one laser and one sensor to start aligning
Get precise results in fewer moves and less time

Real-time guidance you can trust

Live feedback helps you adjust the machine confidently during every shaft alignment, finishing each job faster and more accurately.

Monitor corrections simultaneously on both vertical and horizontal planes
Receive automatic out-of-range notifications
Verify results instantly with Quality Factor and Standard Deviation

Versatile measurement options

Whether rotation is full or limited, Fluke 832 adapts to the job without compromising accuracy.

Use static machine or multiple foot positions, depending on setup
Measure reliably even with uncoupled shafts

Built-in workflows for tricky alignments

Address common field complications without switching systems or losing time.

Identify and correct Soft Foot before starting alignment
Reliable operation even on complex base conditions

Smarter reports, clearer ROI

Track, document, and share alignment results that the whole team can use.

Generate clear, customized alignment reports
Automatically log asset-specific IDs and measurements
Unlock the Built-in ROI calculator feature to see long-term savings
Email results quickly via built-in templates

Discover the Fluke 832 Laser Shaft Alignment Tool at Mektronics Australia – your trusted source for quality tools and equipment!

Single-laser, dual-detector precision
Simple, easy setup
Simultaneous Live Move (horizontal & vertical)
Soft Foot correction
8-Point Active Clock
Automatic out-of-range notifications

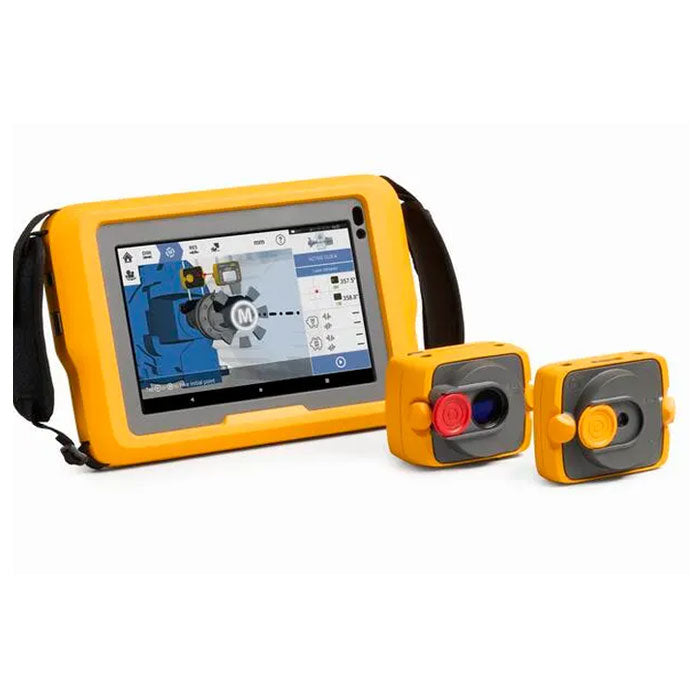

Fluke 832 Shaft Alignment Tablet
Fluke 832 Sensor
Fluke 832 Laser
Charger
Three Cables
USB Stick
Carrying Case
Manuals
Two Calibration Certificates

Fluke Shaft Alignment Tablet

General specifications
CPU	Processor:	Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)
CPU	Memory:	4 GB LPDDR4X SDRAM/64 GB UFS Flash
Display	Technology:	Corning® Gorilla® Glass
	Resolution:	600 nits, color WXGA 1280x800
	Dimensions:	8 inch/20.3 cm
Power supply	Operating time:	Up to 11 Hours
	Battery:	6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)
	Charging:	USB-C
Connectivity	Wifi:	IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)
	Bluetooth:	Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)
	RFID:	Integrated RFID with read and write capabilities Docking connector (charge and data) USB-C side port (tablet charging and data only)
Environmental protection	IP 65:	Dustproof and water jets resistant
Environmental protection	Relative humidity:	5% to 95% non-condensing
Drop test	1.2 m (4 ft)
Temperature range	Operation:	-20°C to 50°C (-4°F to 122°F)
Temperature range	Storage:	-40°C to 70°C (-40°F to 158°F)
Dimensions	267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8"
Weight	930 g/2.1 lbs
Camera	Rear:	Image capture: 13 MP auto-focus camera with user controllable LED flash
Camera	Front:	5MP
CE conformity	Refer to the CE compliance certificate
Carrying case	Dimensions	595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2")

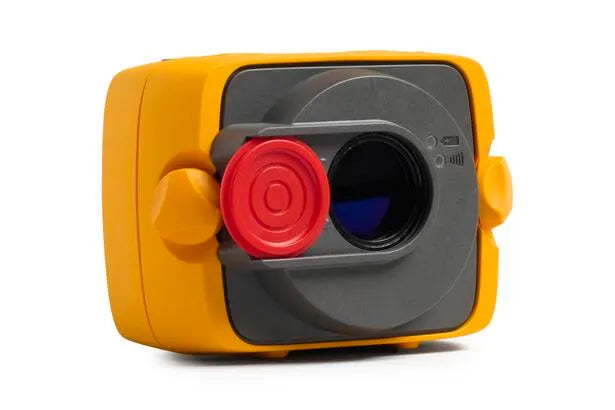

Fluke 832 Sensor

General specifications
Type	6-axis	2 planes (4 displacement axes and 2 angles)
Measurement	Optical range	14 x 14 mm (0.55 x 0.55 in.)
	Area	Unlimited, dynamically extendible
	Resolution	1 μm (0.04 mil); Angular 10 μRad
	Error	< 2%
	Transmitted rate	Approx. 20 Hz
Inclinometer	Resolution	0.1°
Inclinometer	Error	Roll +-1°; Pitch +- 3°
LED indicators	1 LED for laser adjustment, battery and charge status; 1 LED for BT communication
Power supply	Battery	Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
	Operating time	30 hours (continuous use)
	Charging time	2.5 h for up to 80%; 4 h for up to 100%
	Charging	USB-C
External interface	Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed
Radio transmission distance	Up to 50 m (160 ft) direct line of sight
Environmental protection	IP 65	Dustproof and water jets resistant, shockproof
Environmental protection	Relative humidity	10% to 90%
Ambient light protection	Optical and active electronic digital compensation
Temperature range	Operation	-10°C to 50°C (14°F to 122°F)
	Charging	0°C to 35°C (32°F to 95°F)
	Storage	-20°C to 50°C (-4°F to 122°F)
Dimensions	Approx. 104 x 72 x 54 mm (4 1/8" x 2 13/16" x 2 1/8")
Weight	Approx. 231 g (8.2 oz)
CE conformity	Refer to the CE compliance certificate

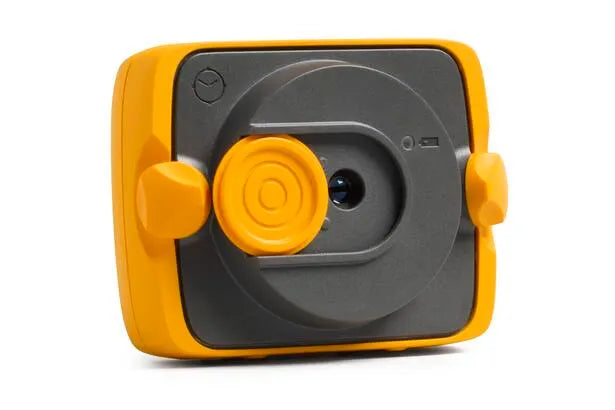

Fluke 832 Laser

General specifications
Type	Semiconductor laser diode
Laser	Power	< 1 mW
	Divergence	0.3 mrad
	Wavelength	630-640 nm (red, visible)
	Separation distance	Up to 10 m
	Adjustment	No
	Safety class	Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam
Inclinometer	Resolution	0.1°
Inclinometer	Error	Roll +-1°
LED indicators	1 LED for battery and charge status
Power supply	Battery	Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
	Operating time	40 hours (continuous use)
	Charging time	2.5 h for up to 80%; 4 h for up to 100%
	Charging	USB-C
Environmental protection	IP 65	Dustproof and water jets resistant, shockproof
Environmental protection	Relative humidity	10% to 90%
Temperature range	Operation	-10°C to 50°C (14°F to 122°F)
	Charging	0°C to 35°C (32°F to 95°F)
	Storage	-20°C to 50°C (-4°F to 122°F)
Dimensions	Approx. 101 x 75 x 37 mm (4” x 2 15/16” x 1 7/16”)
Weight	Approx. 190 g (6.7 oz)
CE conformity	Refer to the CE compliance certificate
