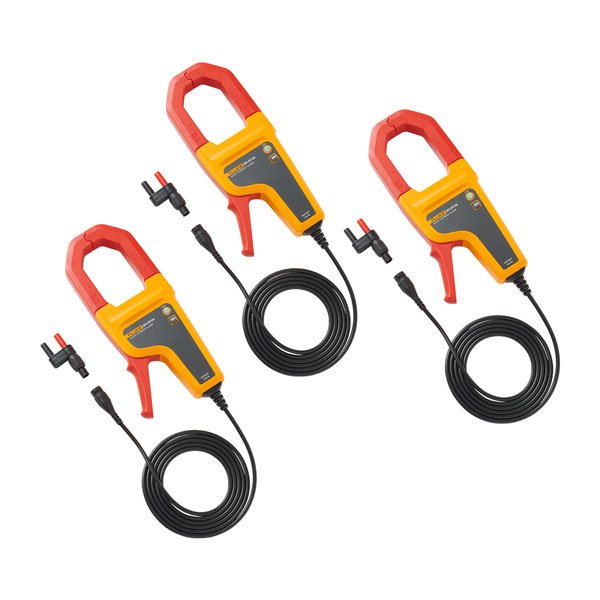

Fluke 80i-2010s AC/DC Current Clamps, 3pk
SKU: FLU80I-2010S/3PK
80I-2010S/3PK
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke 80i-2010s AC/DC Current Clamps, 3pk
The Fluke 80i-2010s allows you to measure up to 2,000A AC and/or DC on large conductors with 0.8% accuracy. The 80i-2010S provides a convenient way to measure current without having to disconnect the load.
Discover the Fluke 80i-2010s AC/DC Current Clamps, 3pk at Mektronics Australia – your trusted source for quality tools and equipment!
-
Conveniently measure current without having to disconnect the load
-
2,000A AC and DC current clamp
-
Maximum conductor size - 52mm (2.05in)
-
Maximum opening - 81.5mm (3.2in)
|
General Specifications |
|||
|
Modules |
80i-2010s |
||
|
Dimensions |
110 mm x 270 mm x 46mm |
||
|
Weight |
0.710 kg (1.6 lbs), including battery |
||
|
Output Cable |
1.5 m (60 in) Shielded Coaxial cable with BNC plug |
||
|
Maximum Conductor Size |
52.0 mm (2.05 in) |
||
|
Maximum Jaw Opening |
81.5 mm |
||
|
Output to Zero |
Auto adjustment with Zero button |
||
|
Temperature Operating |
-10 °C to 50 °C (14 °F to 122 °F) |
||
|
Storage (battery removed) |
-30 °C to +60 °C (-22 °F to +140 °F) |
||
|
Operating Humidity |
≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) |
||
|
Operating Altitude |
2,000 m (6560 ft) |
||
|
Storage Altitude |
12,000 m (40,000 ft) |
||
|
Demagnetize Clamp |
Open and close the Clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less. |
||
|
Safety |
IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V |
||
|
Ingress Protection |
IEC 60529, IP40 |
||
|
Power Supply Type |
2 x AA alkaline battery, IEC LR6 |
||
|
Battery Life |
150 hours (typically) |
||
|
Low battery indicator |
Yes |
||
|
Electrical Specifications |
|||
|
Current Range |
2000 A ac rms, ± 2000 A dc |
||
|
Output Sensitivity |
01 mV/A |
||
|
Accuracy |
± 0.8 % of reading ± 0.2 % of range |
||
|
Bandwidth for Accuracy Specification |
DC to 400 Hz |
||
|
Load impedance |
>1 MΩ and <10 pF |
||
|
Frequency Response (small signal) |
DC to 20 kHz (-3 dB) |
||
|
Temperature Coefficient |
0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
||
|
Working Voltage |
1000 V AC RMS or DC |
||
