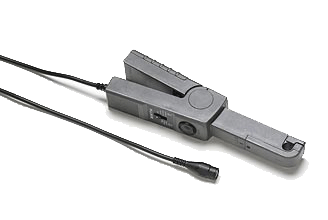

Image for Illustrative Purposes Only
Fluke 80i-110s AC/DC Current Clamp
SKU: FLU80I-110S
80I-110S
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke 80i-110s AC/DC Current Clamp
The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
Discover the Fluke 80i-110s AC/DC Current Clamp at Mektronics Australia – your trusted source for quality tools and equipment!
- Current Range: 0.1 to 100A DC or 0.1 to 70A AC
- Basic Accuracy (DC to 1kHz):
100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
40A to 80A +/- 12% of reading + 50mA
80 to 100A +/- 15% of reading - Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
- Bandwidth: 1Hz to 20kHz
- Working Voltage: 600V AC rms
- Maximum Conductor Size: 11.8 mm (.46 inch) diameter
- Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V
| Specifications | |
| Nominal current range | 10 A, AC/DC |
| 100 A, AC/DC | |
| Continuous current range | 0.1 A - 10 A AC/DC |
| 1 A - 100 A AC/DC | |
| Maximum non-destructive current | 140 A - 2 kHz |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA |
| 10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA | |
| 40 A to 80 A ±12% of reading +50 mA | |
| 80 to 100 A ±15% of reading | |
| Useable frequency | DC - 100 kHz |
| Output level(s) | 10 A range: 100 mV/A |
| 100 A range: 10 mV/A | |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT II, 600 V |
| CAT III, 300 V | |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 55 h |
| Maximum conductor diameter | 11.8 mm |
| Output cable length | 1.6 m |
| BNC adapter | Yes |
