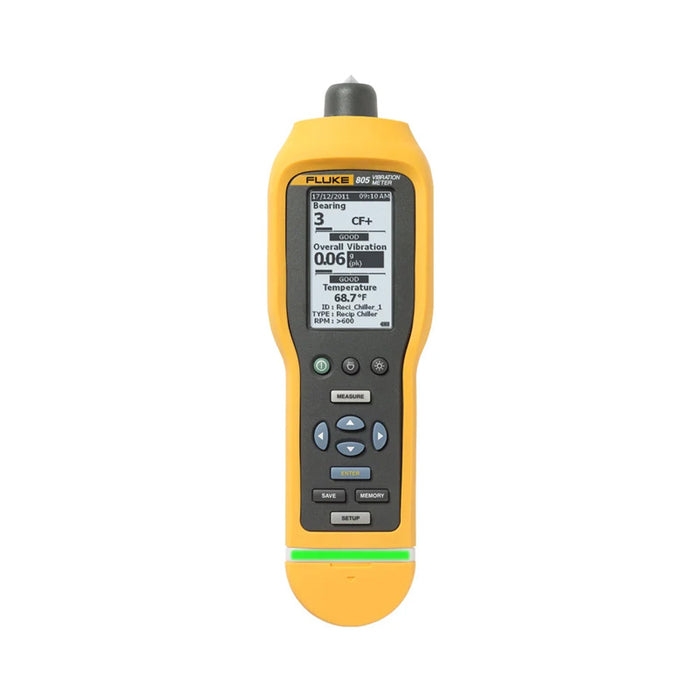

Fluke 805 FC Vibration Meter
SKU: FLU805FC
805FC
DESCRIPTION
Features
Features
Specifications
Shipping & Delivery
Fluke 805 FC Vibration Meter
The reliable, repeatable, accurate way to check bearings and overall vibration
Make go or no-go maintenance decisions with confidence. The is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.
Discover the Fluke 805 FC Vibration Meter at Mektronics Australia – your trusted source for quality tools and equipment!
- Reliable, repeatable, accurate device for checking bearings and overall vibration
- Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
- Provides consistent data quality at both low and high frequency ranges
- Offers four-level severity scale to assess urgency of problems and bearing condition
- Allows you to export data via USB
- Compatible with Fluke Connect® Mobile App that can transmit measurements to your smartphone to be shared in real time
- Enables you to get authorization to take next steps in an instant if machine health is at risk via Fluke Connect™ Share-Live™ video call*
- Allows you to view trending in Microsoft® Excel using pre-built templates
- Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
- Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
- Compares vibration levels with ISO-10816 severity scales and stores results to the Fluke Connect Cloud
- Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
- Measures temperature with Spot IR Sensor to increase diagnostic capabilities
- Holds and saves up to 3,500 measurements in on-board memory
- Provides external accelerometer support for hard to reach locations
- Features built-in flashlight for viewing measurement locations in dark areas
- Provides large high-resolution display for easy navigation and viewing
Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
Severity levels | Good, satisfactory, unsatisfactory, unacceptable |
Vibration limit | 50 g peak (100 g peak-peak) |
A/D converter | 16-bit |
Signal to noise ratio | 80 dB |
Sampling rate | Low frequency: 20,000 Hz High frequency: 80,000 Hz |
Real time clock backup | Coin battery |
Sensor | |
Sensitivity | 100 mV g ± 10% |
Measurement range | 0.01 g to 50 g |
Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
High frequency range | 4,000 Hz to 20,000 Hz |
Resolution | 0.01 g |
Accuracy | At 100 Hz ± 5% of measured value |
Amplitude Units | |
Acceleration | g, m/sec² |
Velocity | in/sec, mm/sec |
Displacement | mils, mm |
Infrared Thermometer (Temperature Measurement) | |
Range | -20 °C to 200 °C (-4 °F to 392 °F) |
Accuracy | ±2 °C (4 °F) |
Focal length | Fixed, at ~3.8 cm (1.5") |
External Sensor | |
Note: Fluke supports but does not provide external sensors | |
Frequency range | 10 Hz to 1,000 Hz |
Bias voltage (to supply power) | 20 V dc to 22 V dc |
Bias current (to supply power) | Maximum 5 mA |
Firmware | |
External interfaces | USB 2.0 (full speed) communication |
Data capacity | Database on internal flash memory |
Upgrade | Through USB |
Memory | Up to 3,500 measurements |
Radiated Emission | |
Electrostatic discharge: burst | Standard EN 61000-4-2 |
Electromagnetic interference | Standard EN 61000-4-3 |
RE | Standard CISPR 11, Class A |
Environmental | |
Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
Storage temperature | -30 °C to 80 °C (-22 °F to 176 °F) |
Operating humidity | 10% to 95% RH (non-condensing) |
Operating/storage altitude | Sea level to 3,048 meters (10,000 feet) |
IP rating | IP54 |
Vibration limit | 500g peak |
Drop test | 1 meter |
General Specifications | |
Battery type | AA (2) Lithium Iron Disulfide |
Battery life | 250 measurements |
Size (L x W x H) | 24.1 cm x 7.1 cm x 5.8 cm (9.5 in x 2.8 in x 2.3 in) |
Weight | 0.40 kg (0.89 lb) |
Connectors | USB mini-B 7-pin, external sensor jack (SMB connector) |
