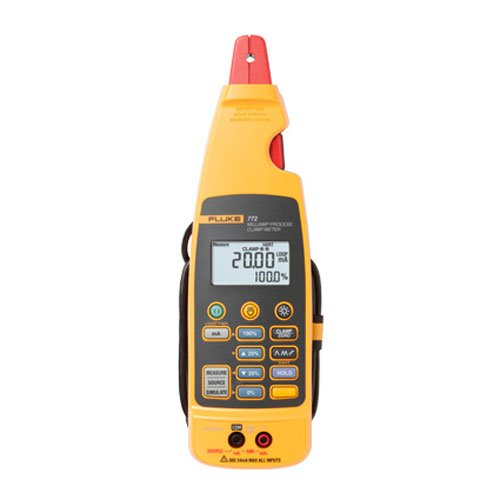

Fluke 772 Milliamp Clamp Meter
SKU: FLU772/APAC
772/APAC
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke 772 Milliamp Clamp Meter
The Fluke 772 adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.
You'll be able to test 4–20 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.
Discover the Fluke 772 Milliamp Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!
- Best in class 0.2 % accuracy
- 0.01 mA resolution and sensitivity
- Measure 4 to 20 mA signals without ”breaking the loop”
- Measure mA signals for PLC and control system analog I/O
- Dual backlit display with both mA measurement and percent of 4 to 20 mA span
- Measurement Spotlight illuminates hard to see wires in dark enclosures
- Detachable clamp with extension cable for measurements in tight locations
- Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
- Automatically change the 4 to 20 mA output for remote testing
- Power saving features, auto-off, backlight timeout extend battery life
- Hold function captures and displays changing measurements
- Measure 4 to 20 mA signals with in-circuit measurement
- Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
- Source 4 to 20 mA signals for testing control system I/O or I/Ps
- mA output linear ramp or 25% step output
- Automatically change the 4 to 20 mA output for remote testing
- Four AA alkaline batteries (installed)
- Soft carrying case
- TL75 test leads
- AC 72 detachable clip
- TL 940 mini hook test leads
- Instruction sheet
- Hanging tool with hook and loop strap
| Specifications | ||||
| Diameter of measurable conductor | 0.177” or 4.5 mm max | |||
| Operating temperature | -10 to 50ºC | |||
| Storage temperature | -25 to 60ºC | |||
| Operating humidity | < 90% @ <30ºC, < 75% @ 30 to 55ºC | |||
| Operating altitude | 0 to 2000 m | |||
| IP rating | IP 40 | |||
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) | |||
| Weight | 410 g, (14.4 oz) | |||
| Vibration | Random 2 g, 5 to 500 Hz | |||
| Shock | 1 meter drop test (except the jaw) | |||
| EMI/RFI | Meets EN61326-1 | |||
| For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. | ||||
| Temperature coefficient | 0.01% ºC (< 18ºC or > 28ºC) |
|||
| Power, battery life | (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms | |||
| Warranty | Three years for electronics One year for cable and clamp assembly |
|||
| Functional Specifications | ||||
| mA measurement (measured by clamp) |
Resolution / range | 0 to 20.99 mA | ||
| Accuracy | 0.2% + 5 counts | |||
| Resolution / range | 21.0mA to 100.0 mA | |||
| Accuracy | 1% + 5 counts | |||
| mA measurement (measured in series with test jacks) | Resolution / range | 0 to 24.00 mA | ||
| Accuracy | 0.2% + 2 counts | |||
| mA source (maximum mA drive: 24 mA into 1,000 ohms) | Resolution / range | 0 to 24.00 mA | ||
| Accuracy | 0.2% + 2 counts | |||
| mA simulate (maximum voltage 50 V dc) | Resolution / range | 0 to 24.00 mA | ||
| Accuracy | 0.2% + 2 counts | |||
