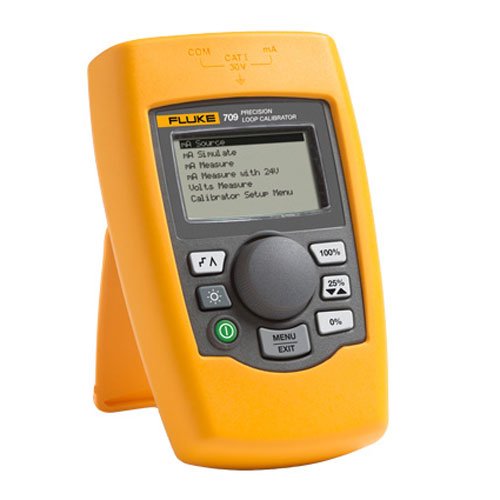

Image for Illustrative Purposes Only
Fluke 709 Precision mA Loop Calibrator
SKU: FLU709
709
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Fluke 709 Precision mA Loop Calibrator
The Fluke 709 Precision Loop Calibrator is designed to save time and produce high-quality results. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop.
Discover the Fluke 709 Precision mA Loop Calibrator at Mektronics Australia – your trusted source for quality tools and equipment!
The Fluke 709 Precision Loop Calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas. The 709 offers:
- Best-in-class accuracy at 0.01% reading
- Small rugged design operates on (6) standard AAA batteries
- Intuitive user interface with Quick-Set knob for fast setup, easy use
- Built in selectable 250 Ω resistor for HART communication
- 24 V DC loop power with mA Measure Mode (-25% to 125%)
- Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
- Simple two wire connection for all measurements
- Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
- Variable step & ramp time in seconds
- Adjustable span selection (0 to 20 mA or 4 to 20 mA)
- Valve Test (simulate defined mA values with % keys)
- AC175 Alligator Clip Set
- TL75 420l Test Leads
- Soft Case
- Six AAA batteries (installed)
- Product Manual CD-ROM
- Quick Reference Guide
- Safety Information
| Detailed Specifications | |
| Functions | mA source, mA simulate, mA read, mA read/loop power, and volts read. |
| Ranges | mA (0 to 24 mA) and Volts (0 to 30 V DC) |
| Resolution | 1 µA on mA ranges and 1 mV on voltage range |
| Accuracy | 0.01% ± 2 counts, all ranges (@23° ± 5°C) |
| Operating temperature range | -10°C to 55°C (14°F to 131°F) |
| Humidity range | 10 to 95% non-condensing |
| Stability | 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C |
| Display | 128 x 64 pixels, LCD graphic w/backlight, .34 high digits |
| Power | 6 AAA alkaline |
| Battery life | 40 hours typical |
| Loop compliance voltage | 24 V DC @ 20 mA |
| Over-voltage protection | 240 V AC |
| Overload current protection | 28 mA DC |
| EMC | EN61326 Annex A (Portable Instruments) |
| Dimensions (L x W x D) | 15 x 9 x 3 cm (6 x 3.6 x 1.3 in) |
| Weight | 0.3 kg (9.5 oz) |
| Included accessories | NIST traceable calibration certificate with data, batteries, test leads, and manual |
| Warranty | One year |
