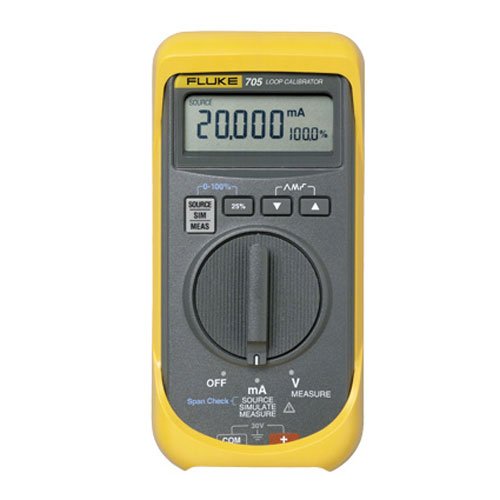

Image for Illustrative Purposes Only
Fluke 705 Loop Calibrator
SKU: FLU705
705
DESCRIPTION
Includes
Specifications
Shipping & Delivery
Fluke 705 Loop Calibrator
Fluke Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:
- A large display and simple, pushbutton interface for ease of use.
- Simultaneous mA and % readout for quick, easy interpretation of readings.
- mA accuracy of 0.02%
- Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
- "Span Check" for fast confirmation of zero and span.
- Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
- 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
- Single 9V battery that is easily changed.
- 0 - 20 mA or 4 - 20 mA default start up modes.
- mA sourcing, simulation and measurement
- 0.02% accuracy and 0.001 mA resolution
- Simultaneous mA and % of span display
- Selectable step or ramp outputs
- 24 V Loop supply with mA measure
- 0-28 VDC measurement to check Loop Voltage
- Easy battery exchange without opening the case
- Compact case with separate protective holster
- Three year warranty
Discover the Fluke 705 Loop Calibrator at Mektronics Australia – your trusted source for quality tools and equipment!
- AC70A Alligator Clips
- C10 protective yellow holster with Flex-Stand™
- Instruction sheet
- TL75 safety-designed test lead set
- NIST- traceable calibration report and data
| Specifications | ||
| Current measurement | Range | 0 to 24 mA |
| Resolution | 0.001 mA | |
| Accuracy | 0.02% Rdg + 2 LSD | |
| Current sourcing | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Drive capability | 1000 Ω @ 24 mA | |
| Current simulation | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Ext. loop voltage requirement | 12-30 V | |
| Loop power | While measuring mA, 24 V | |
| Voltage measurement | Range | 0 to 28 V DC |
| Resolution | 1 mV | |
| Accuracy | 0.025% Rdg + 2 LSD | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) | |
| Temperature coefficient | -10°C to 18°C, 28°C to 55°C, ±.005% of range per°C | |
| Safety Specifications | ||
| Safety | CSA C22.2 No. 1010.1:1992 | |
| EMC | EN50082-1:1992 and EN55022:1994 Class B | |
| Maximum voltage | 30 V | |
| Mechanical and General Specifications | ||
| Size | 152 x 70 x 41 mm | |
| Weight | 340 g | |
| Batteries | One 9 V battery | |
| Warranty | Three years | |
| Shock and vibration | per MIL-T-28800 for a Class 2 Instrument | |
| Display current and % of span | Yes | |
| Auto step, auto ramp | Yes | |
| Span check | Yes | |
