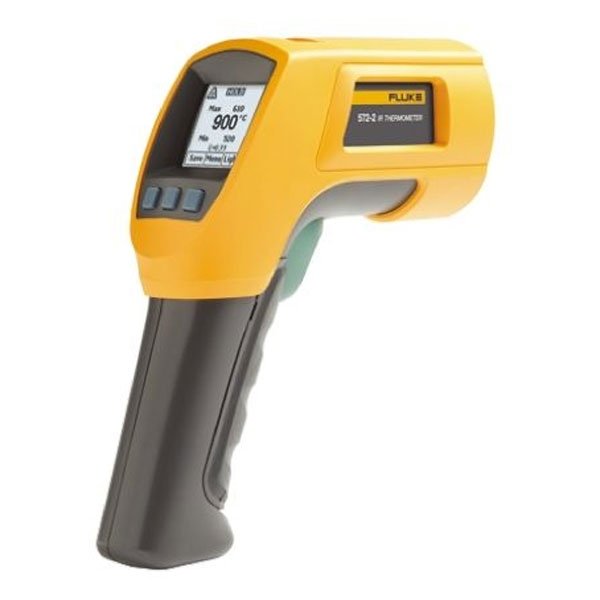

Fluke 572-2 High Temperature Infrared Thermometer
SKU: FLU572-2
572-2
DESCRIPTION
Features
Includes
DESCRIPTION
Specifications
Shipping & Delivery
Fluke 572-2 High Temperature Infrared Thermometer
The Fluke 572-2 High-Temperature Infrared Thermometer is the one product you can use in high-temperature industrial environments all around the world. Whether you work in power utility, metal refining and smelting, glass, cement or petrochemical environments, the 572-2 allows you to carry the most trusted name in test tools anywhere you need accurate, high-temperature and high distance-to-spot measurements.
With a straight-forward user interface and soft-key menus, the Fluke 572-2 makes even complex measurements easy. Quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button.
Discover the Fluke 572-2 High Temperature Infrared Thermometer at Mektronics Australia – your trusted source for quality tools and equipment!
- Measure -30 °C to 900 °C (-22 °F to 1652 °F)
- 60:1 distance to spot ratio with dual laser sighting for fast, accurate targeting
- Multi-language interface (user select)
- Current Temperature plus MAX, MIN, DIF, AVG temperature displays
- Compatible with standard mini-connector K-type thermocouples, including ones you already own and have installed
- Adjustable emissivity and predefined emissivity table
- Infrared and thermocouple temperature on backlit display
- Last reading Hold (20 seconds)
- High and low temperature alarm
- Data storage and review (99 data sets)
- Tripod mount
- 12 or 24 hour clock
- USB 2.0 computer interface cable
- FlukeView® Forms documenting software
- Two-year warranty
| Model Name |
Fluke 572-2 High Temperature Infrared Thermometer |
| Fluke 572-2 |
High-Temperature Infrared Thermometer Includes:
|
| Infrared Measurements | |
| Infrared temperature range | -30°C to 900°C (-22°F to 1652°F) |
| IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C) | ≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater |
| ≥ -10°C to < 0°C: ±2°C | |
| < -10°C: ±3°C | |
| ≥ 32°F: ± 2°F or ± 1% of the reading, whichever is greater | |
| ≥ 14°F to < 32°F: ±4°F | |
| < 14°F: ±6°F | |
| IR repeatability | ±0.5% of reading or ±0.5°C (±1°F), whichever is greater |
| Display resolution | 0.1°C / 0.1°F |
| Distance: Spot | 60:1 (calculated at 90% energy) |
| Minimum spot size | 19 mm |
| Laser sighting | Offset dual laser, output < 1 mW |
| Spectral response | 8 μm to 14 μm |
| Response time (95%) | < 500 ms |
| Emissivity | Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials |
| Contact Measurements | |
| K-type thermocouple input temperature range | -270°C to 1372°C (-454°F to 2501°F) |
| K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C) | < -40°C: ±(1°C + 0.2° / 1°C) |
| ≥ -40°C: ±1% or 1°C, whichever is greater | |
| < -40°F: ±(2°F + 0.2° / 1°F) | |
| ≥ -40°F: ±1% or 2°F, whichever is greater | |
| K-type thermocouple | 0.1°C / 0.1°F |
| K-type thermocouple repeatability | ±0.5% of reading or ±0.5°C (±1°F), whichever is greater |
| Measurement Options | |
| Hi/Low alarms | Audible and two-color visual |
| Min/Max/Avg/Dif | Yes |
| Switchable celsius and fahrenheit | Yes |
| Backlight | Two levels, normal and extra bright for darker environments |
| Probe input | K-type thermocouple simultaneous display of probe and IR temperature |
| Trigger lock | Yes |
| Data storage | 99 points |
| Display | Dot matrix 98 x 96 pixels with function menus |
| Communication | USB 2.0 |
| K-Type Thermocouple Specifications | |
| Measurement range (bead probe) | -40°C to 260°C (-40°F to 500°F) |
| Accuracy | ±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) |
| Cable length | 1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination |
| General Specifications | |
| Safety and compliance | IEC 60825-1 FDA Laser Class II IEC 61326-1 CE Complaint CMC # 01120009 |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | 10% to 90% RH non-condensing up to 30°C (86°F) |
| Operating altitude | 2000 meters above mean sea level |
| Weight | 0.322 kg (0.7099 lb) |
| Power | 2 AA batteries |
| Battery life | 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on) |
