Image for Illustrative Purposes Only

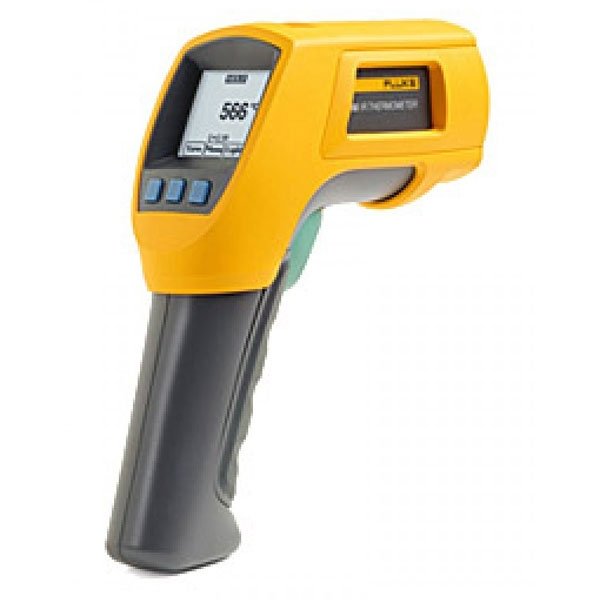

Fluke 568 Contact & Infrared Temp Gun
SKU: FLU568
568
DESCRIPTION
Includes
DESCRIPTION
Specifications
Shipping & Delivery
Fluke 568 Contact & Infrared Temp Gun
Added functionality available only on the 568:- Easily trend and analyze data with included FlukeView® Forms software
- Quickly download stored data with USB connection
- See your data right away without leaving the site, using the USB and your laptop
- Extend your battery life by powering the digital thermometer from your laptop via the USB
- Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566)
- Easily access advanced features with the soft-key buttons and dot-matrix display
- Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566)
- Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments
- Confidently measure a wide variety of surfaces, with the adjustable emissivity feature, including a built-in material table
- Capture multiple points of data (up to 99 with the 568, and 20 with the 566), for downloading and recalling later
- Easily adapt to lighting conditions with 2 levels of backlight
- Audible and visual alarms instantly alert you to measurements outside of your set limits
- Quickly identify problems with the MIN, MAX, AVG, and DIF functions
- Make contact thermometer measurements right away with the included Type-K thermocouple bead probe
- Confidently troubleshoot equipment with 1 % measurement accuracy
- Versatile interface with 6 languages from which to choose
Discover the Fluke 568 Contact & Infrared Temp Gun at Mektronics Australia – your trusted source for quality tools and equipment!
| Model Name |
Fluke 568 Contact & Infrared Temp Gun |
| Fluke 568 |
Fluke 568 includes:
|
| Product Specifications | ||
| Infrared temperature range | -40°C to 800°C (-40°F to 1472°F) | |
| Infrared accuracy | < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); | |
| > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater | ||
| Display resolution | 0.1°C / 0.1°F | |
| Infrared spectral response | 8 µm to 14 µm | |
| Infrared response time | < 500 msec | |
| Thermocouple Type-K input temperature range | -270°C to 1372°C (-454°F to 2501°F) | |
| Thermocouple Type-K input accuracy | -270°C to -40°C | ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) |
| -40°C to 1372°C | ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater | |
| D:S (distance to measurement spot size) | 50:1 | |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm | |
| Minimum spot size | 19 mm (0.75 in) | |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 | |
| Data storage with date/time stamp | 99 points | |
| PC interface and cable | USB 2.0 with FlukeView® Forms software | |
| Hi/Low alarms | Audible and two-color visual | |
| Min/Max/Avg/Dif | Yes | |
| Display | Dot matrix 98 x 96 pixels with function menus | |
| Backlight | Two levels, normal and extra bright for darker environments | |
| Trigger lock | Yes | |
| Switchable Celsius and Fahrenheit | Yes | |
| Power | 2 AA/LR6 Batteries and USB when used with a PC | |
| Battery life | If used continuously | Laser and backlight on,12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage temperature | -20°C to 60°C (-40°F to 140°F) | |
| Bead thermocouple Type-K range | -40°C to 260°C (-40°F to 500°F) | |
| Bead thermocouple Type-K accuracy | ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) | |
