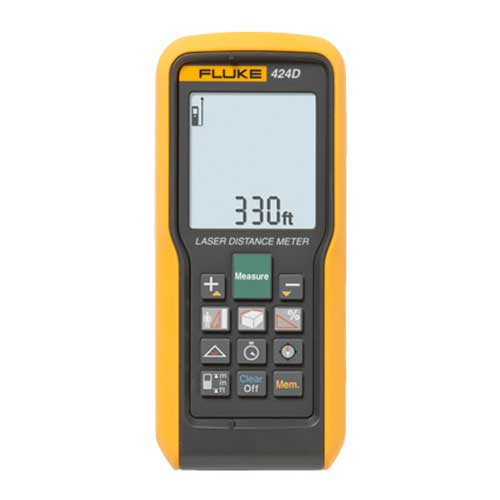

Fluke 424D Laser Distance Meter
SKU: FLU424D
424D
DESCRIPTION
Includes
Features
Specifications
Shipping & Delivery
Fluke 424D Laser Distance Meter
- The ultimate Fluke laser distance meter
- Measures up to 100 m (330 feet)
- Feature-rich meter includes tilt sensor for hard-to-reach measurements, corner angle feature and compass
The (100m) is the most sophisticated laser distance meter packed with versatile features to save you more time in more situations. It extends your measurement reach to 100 meters (330 feet). It offers a bigger, 4-line display, a built-in compass, and a 180º inclination sensor for leveling and height tracking.
Discover the Fluke 424D Laser Distance Meter at Mektronics Australia – your trusted source for quality tools and equipment!
- Two AAA batteries
- Users manual on CD
- Quick reference guide
- Vinyl carrying pouch
- Lanyard
- Three-year warranty
- Measures up to 100 m (330 ft)
- Higher accuracy: +/-1 mm (0.04 in)
- 4-line display shows you even more data at a glance
- Inclination sensor assists with height tracking, leveling, and indirect horizontal distance measurements when line-of-sight is blocked by an obstacle
- Corner angle feature, allows you to determine the angle of a corner
- Compass provides a "heading" for your distance measurements
- Stores 20 complete displays for quick recall
- Backlight
- Tripod mode allows you to mount the meter to a tripod when measuring long distances
- Full Pythagoras function for height measurements
- Audible keypad feedback
- Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
- Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point
- Minimum/Maximum function
- Enhanced environmental protection:IP54-rated as dust and water spray resistant
- Improved battery life of 5000 measurements with auto shut-off feature
| Distance Measurement | |
| Typical measuring tolerance 1 | ±1.0 mm 3 |
| Maximum measuring tolerance 2 | ±2.0 mm 3 |
| Range At Leica Target Plate GZM26 | 100 m / 330 ft |
| Typical range 1 | 80 m / 260 ft |
| Range at unfavorable condition 4 | 60 m / 195 ft |
| Smallest unit displayed | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Ø Laser point at distances | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Tilt Measurement | |
| Measuring tolerance to laser beam 5 | ±0.2° |
| Measuring tolerance to housing 5 | ±0.2° |
| Range | 360° |
| General | |
| Laser cass | 2 |
| Laser type | 635 nm, < 1 mW |
| Protection class | IP54 |
| Automatic laser off | After 90 seconds |
| Automatic power off | After 180 seconds |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 5,000 measurements |
| Size (L x W x D) | 127 x 56 x 33 mm |
| Weight (with batteries) | 158 g |
| Temperature range Storage operation | -25°C to +70°C (-13°F to +158°F) |
| -10°C to +50°C (14°F to +122°F) | |
| Calibration cycle | Tilt and compass |
| Maximum altitude | 3000 m |
| Maximum relative humidity | 85% at 20°F to 120°F (-7°C to 50°C) |
| Safety | IEC Standard No. 61010-1:2001 |
| EN60825-1:2007 (Class II) | |
| EMC | EN 55022:2010 |
| EN 61000-4-3:2010 | |
| EN 61000-4-8:2010 | |
| 1. Applies for 100% target reflectivity (white painted wall), low background illumination, 25°C. 2. Applies for 10 to 500% target reflectivity, high background illumination, -10°C to +50°C. 3. Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m. 4. Applies for 100% target reflectivity, background illumination between 10'000 lux and 30'000 lux. 5. After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°. |
|
