Fluke 417D Laser Distance Meter
SKU: FLU417D
417D
DESCRIPTION
Features
Features
Inclusions
Specifications
Shipping & Delivery

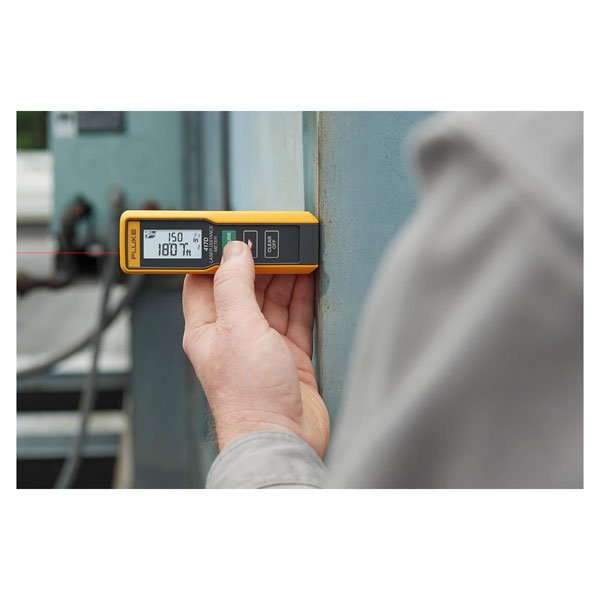

Fluke 417D Laser Distance Meter
The Fluke 417D is accurate, durable, and easy to use—just point and shoot. The simple design and easy, one-button measurement operation allows you to minimize time spent measuring and maximize the reliability of measurements.
Discover the Fluke 417D Laser Distance Meter at Mektronics Australia – your trusted source for quality tools and equipment!
-
The Fluke 417D laser meter is accurate, durable, and easy to use—just point and shoot
-
Instantly measure up to 40 m (131 ft.) with 1-button point-and-click
-
Continuous measurement capable: adjusting as you move closer and farther from your target
-
Quickly calculate area (sq feet/meters)
-
1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
-
Great for interior and exterior applications
-
Large, 2-line illuminated LCD screen.
-
Three different measurement tasks can be completed quickly and easily with one hand.
-
The bright laser is clearly visible, so you can always see your target point even from a hard-to-reach spot or long distance.
-
Designed for both indoor and outdoor applications.
-
Operates with the Fluke durability and quality you expect.
-
Protected by a 3-year warranty.
-

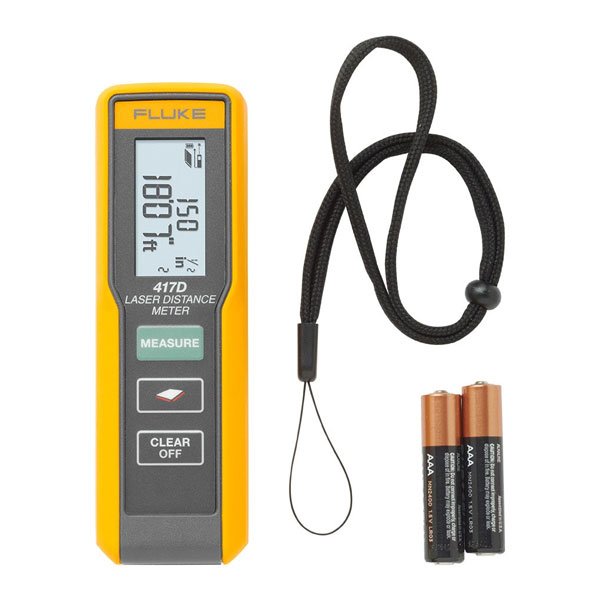

Two AAA batteries
-
Users manual (17 languages)
-
Quick reference guide
-
Lanyard
-
Three-year warranty
|
417D | |
|---|---|
|
Typical range [1] |
0.2-40 m/0.6-131 ft |
|
Typical measuring tolerance* [1] |
2.0 mm ± 1.5 mm/ ± 0.06 in *** |
|
Maximum measuring tolerance [2] |
± 3.0 mm/0.12 in *** |
|
Accuracy up to 10m (+/-) |
± 2 mm |
|
Display |
2 line/1 mm/1/32 in |
|
Display illumination |
Yes |
|
Laser point at distance |
6/30/60 mm (10/40/100 m) |
|
Area |
Yes |
|
Units setting (smallest units displayed) |
0,000m, 0' 00'' 1/32, 0 in 1/32 |
|
Auto laser switch off |
90 sec |
|
Auto power switch off |
180 sec |
| General | |
|
Laser class |
II |
|
Laser type |
635 nm, <1 mW |
|
Protection class |
IP54 |
|
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 |
Up to 3,000 measurements |
|
Size (Hx W x D) |
11.9 x 3.8 x 2.6 cm |
|
Drop test |
1 meter |
|
Weight (with batteries) |
95g (3.35 oz) |
|
Temperature range: Storage |
-25 °C to 70 °C (-13 °F to 158 °F) |
|
Temperature range: Operation |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Calibration cycle |
Not applicable |
|
Maximum relative humidity |
85 % @ 20 °F to 120 °F (-7 °C to 50 °C) |
|
Safety |
CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II) |
|
EMC |
61326-1:2006 |
