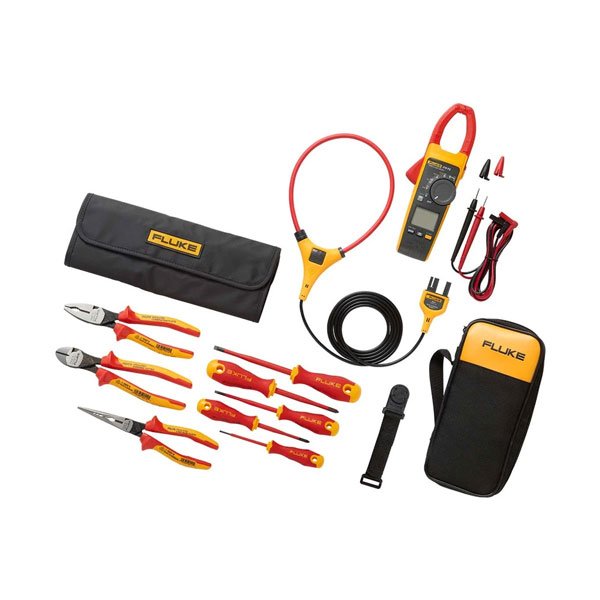

Fluke 376 FC True-RMS Clamp Meter + Insulated Hand Tools Starter Kit
SKU: FLUIB376K
IB376K
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
Fluke 376 FC True-RMS Clamp Meter + Insulated Hand Tools Starter Kit
The Fluke 376 FC True-RMS Clamp Meter combined with the insulated hand tools starter kit, the most often used screwdrivers, pliers and cutters.
376 FC Clamp Meter-
1000 A ac and dc current measurement, 2500 A ac current measurement with iFlex flexible current probe
-
1000 V ac and dc voltage measurement
-
True-rms voltage and current for accurate measurements on non-linear signals
-
Log and trend measurements to pinpoint intermittent faults
-
Transmit results wirelessly via Fluke Connect ® Measurements app
-
Create and send reports right from the field
-
Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devices
-
Three different bladeforms
-
Three handle lengths
-
Phillips screwdrivers, #1 and #2 tips
-
Two handle lengths
-
Unique milled wave pattern gripping zones
-
4 gripping points for pulling round objects with superior grip that won't slip
-
Straight, half-round, long and slim knurled jaws, specially profiled
-
Side cutting edge for wire cutting
-
Cuts hard materials including steel and piano wire
-
Power joint and precision cutting edges
-
Secure hold by aggressive serrated jaws and 4-point gripping hole
-
Slim shape for better access to wires in tight spaces
-
Powerful gripping jaw, yet 20% lighter weight than other designs ext, bullets if it makes sense
Discover the Fluke 376 FC True-RMS Clamp Meter + Insulated Hand Tools Starter Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Fluke 376 FC True-RMS Clamp Meter
-
3 slotted insulated screwdrivers
-
2 Phillips insulated screwdrivers
-
3 insulated pliers
-
Insulated tools certified to 1000 V ac, 1500 V dc
-
Roll-up tool pouch
-
Fluke 376 FC True-rms AC/DC Clamp Meter with iFlex ®
-
18-inch iFlex ® Flexible Current Probe
-
TPAK magnetic hanging strap
-
TL75 test leads
-
ISLS3 Insulated Slotted Screwdriver 3/32, 3"
-
ISLS5 Insulated Slotted Screwdriver 5/32, 4"
-
ISLS8 Insulated Slotted Screwdriver 1/4, 5"
-
IPHS1 Insulated Phillips Screwdriver #1, 3"
-
IPHS2 Insulated Phillips Screwdriver #2, 4"
-
INLP8 Insulated Long Nose /w Side Cutter and Gripping Zones
-
INDC8 Insulated Heavy Duty High Leverage Diagonal Cutter
-
INCP8 Insulated Heavy Duty Linesman Combination Plier
-
RUP8 Roll up pouch
General Specifications |
||
AC Current via Jaw |
||
Range |
999.9 A |
|
Resolution |
0.1 A |
|
Accuracy |
2% ±5 digits (10 Hz to 100 Hz) |
|
2.5% ±5 digits (100-500 Hz) |
||
Crest Factor (50 Hz/60 Hz) |
3 @ 500 A |
|
2.5 @ 600 A |
||
Add 2% for C.F. >2 |
||
AC Current via Flexible Current Probe |
||
Range |
2500 A |
|
Resolution |
0.1 A (≤ 600 A) |
|
1 A (≤ 2500 A) |
||
Accuracy |
3% ±5 digits (5 - 500 Hz) |
|
Crest Factor (50/60Hz) |
3.0 at 1100 A |
|
2.5 at 1400 A |
||
1.42 at 2500 A |
||
Add 2% for C.F. > 2 |
DC Current |
||
Range |
999.9 A |
|
Resolution |
0.1 A |
|
Accuracy |
2% ±5 digits |
|
AC Voltage |
||
Range |
1000 V |
|
Resolution |
0.1 V (≤600.0 V) |
|
1 V (≤1000 V) |
||
Accuracy |
1.5% ±5 digits (20 Hz to 500 Hz) |
|
DC Voltage |
||
Range |
1000 V |
|
Resolution |
0.1 V (≤600.0 V) |
|
1 V (≤1000 V) |
||
Accuracy |
1% ±5 digits |
|
mV dc |
||
Range |
500.0 mV |
|
Resolution |
0.1 mV |
|
Accuracy |
1% ±5 digits |
|
Frequency via Jaw |
||
Range |
5.0 Hz to 500.0 Hz |
|
Resolution |
0.1 Hz |
|
Accuracy |
0.5% ±5 digits |
|
Trigger level |
5 Hz to 10 Hz, ≥10 A |
|
10 Hz to 100 Hz, ≥5 A |
||
100 Hz to 500 Hz, ≥10 A |
||
Frequency via Flexible Current Probe |
||
Range |
5.0 Hz to 500.0 Hz |
|
Resolution |
0.1 Hz |
|
Accuracy |
0.5% ±5 digits |
|
Trigger level |
5 Hz to 20 Hz, ≥25 A |
|
20 Hz to 100 Hz, ≥20 A |
||
100 Hz to 500 Hz, ≥25 A |
||
Resistance |
||
Range |
60 kΩ |
|
Resolution |
0.1 Ω (≤600 Ω) |
|
1 Ω (≤6000 Ω) |
||
10 Ω (≤60 kΩ) |
||
Accuracy |
1% ±5 digits |
|
Capacitance |
||
Range |
1000 μF |
|
Resolution |
0.1 μF (≤ 100 μF) |
|
1 μ F (≤ 1000 μF) |
||
Accuracy |
1% ±4 digits |
|
Mechanical Specifications |
||
Maximum voltage between any terminal and earth ground |
1000 V |
|
Batteries |
2 AA, NEDA 15A, IEC LR6 |
|
Operating temperature |
-10 °C to +50 °C |
|
Storage temperature |
-40 °C to +60 °C |
|
Operating humidity - non-condensing (< 10 °C) |
≤90% RH (at 10 °C to 30 °C) |
|
≤75% RH (at 30 °C to 40 °C) |
||
≤45% RH (at 40 °C to 50 °C) |
||
Operating altitude |
2000 m |
|
Storage altitude |
12,000 m |
|
Size (L x W x H) |
249 x 85 x 45 mm |
|
Weight |
395 g |
|
Jaw opening |
34 mm |
|
Flexible current probe diameter |
7.5 mm |
|
Flexible current probe cable length (head to electronics connector) |
1.8 m |
|
Safety |
IEC 61010-1, Pollution Degree 2 |
|
IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V |
||
IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V |
||
IP rating |
IEC 60529: IP30, non-operating |
|
Radio Frequency Certification FCC ID |
T68-FBLE IC:6627A-FBLE |
