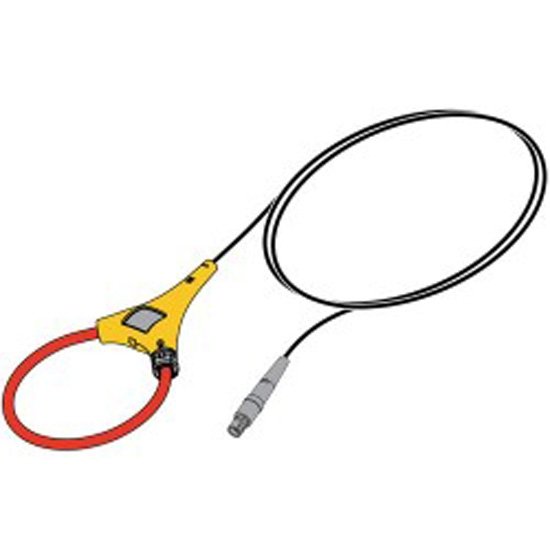

Fluke 3312-PR-TF-II Thin Flex Current Probe

• 3312-PR-TF-II 5000A Thin Flex Current Probe, 24" Cable Length
• Frequency Range: 40 Hz to 5 kHz
• Accuracy (at 25 C): +/-1 % of reading
• Measurement Range: up to 5000 A (with a crest factor ≤3)
• Position Sensitivity (w/ cable >25 mm from coupling): +/-2 % of reading
• External Field (w/ cable >200 mm from head): +/-1 % of reading
• Linearity (10 % to 100 % of range): +/-0.2 % of reading per C
• Temperature Coefficient: +/-0.05 % of reading per C
• Cable Length: 24 inches

• Connect the Probe to the 1750 via the 1750 current input jack.
• Wear protective equipment or de-energize the circuit and place the Probe around the conductor under test.
• Re-energize the circuit.
• Observe and take measurements as required. Positive output indicates that the current flow is in the direction shown by the arrow on the Probe.
• Wear protective equipment or de-energize the circuit before removal of the Probe.

Clean the Probe periodically by wiping it with a damp cloth and detergent. Do not use abrasive cleaners or solvents. Do not immerse the Probe in liquids.

• Electrical Characteristics
• Measurement Range : 100 to 5000A (with a crest factor ≤3)
• Frequency Range : 40 Hz to 5 kHz
• Frequency Derating : I x f ≤385 kA Hz Accuracy (@ 25 °C) ±1 % of reading
• Linearity (10 % to 100 % of range) ±0.2 % of reading
• Temperature Coefficient ±0.05 % of reading per °C
• Position Sensitivity (with cable >25 mm from the coupling) ±2 % of reading
• External Field (with cable >200 mm from the head) ±1 % of reading
• Working Voltage (see Safety Standards) 1000 V ac rms or dc

• General Characteristics
• Probe Cable Length 24 in. (610 mm) 3310-PR-TF 48 in. (1220 mm) 3312-PR-TF
• Probe Cable Diameter 0.3 in. (8 mm)
• Transducer Bend Radius (min) 1.5 in. (38.1 mm)
• Output Cable 2 core screened, 3 meters long, double insulated
• Output Connector LEMO 6 pin male connector
• Operating Temperature Range -4 to +158 °F (-20 to +70 °C) (the temperature of the conductor under test shall not exceed 176 °F /80 °C)
• Storage Temperature Range -40 to 176 °F (-40 to +80 °C)
• Operating Humidity 15 % to 85 % rh (non condensing)
• Altitude max 6562 ft. (2000 m) Degree of ingress protection IP40 (60529)
