Fluke 289/IMSK Industrial Multimeter Service Kit
Image for Illustrative Purposes Only
Fluke Logo

Fluke 289/IMSK Industrial Multimeter Service Kit

SKU: FLU289/IMSK

289/IMSK

$1,453.00

EX. GST
Regular price $1,864.50
$1,598.30
INC GST
Regular price $1,864.50
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Contents
Specifications
Specifications
Specifications
Specifications
Shipping & Delivery

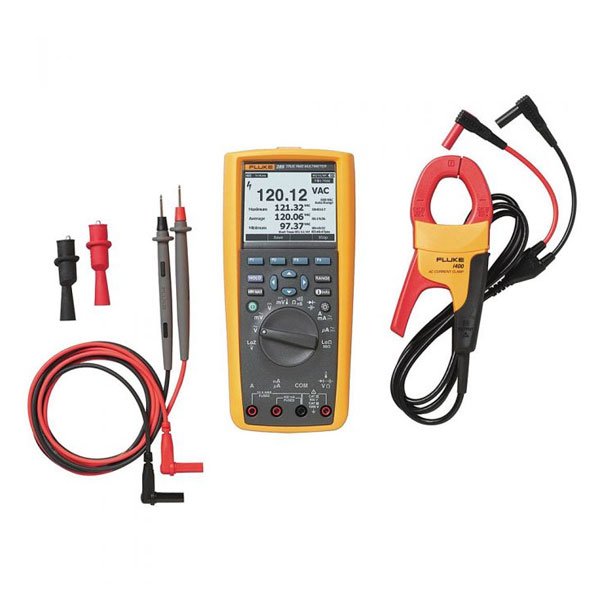

Fluke 289/IMSK Industrial Multimeter Service Kit

This combo kit is built around the Fluke 289, Fluke's next-gen high performance industrial logging multimeter, combined with the i400 AC current clamp. Together, they help solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. The kit includes special accessories to make you even more productive on the job and will save over 15% compared with the individually priced items. Plus, you'll be working with the most trusted tools in the world.

Fluke 289 DMM Features

  • Provides the ability to log data and graphically

  • TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.

  • Review up 10,000 recorded events and logged readings with on-board TrendCapture

  • Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.

  • Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.

  • Includes premium test leads, alligator clips, and amp jack plugs

Fluke i400 AC Current Clamp Features

  • Provides accurate current measurements up to 400 A ac without breaking electric circuits.

  • Flexible, heat resistant test leads and alligator clips complete this high-performance kit.

  • Soft non-slippery over mold handle prevents from accidental touching live wiring

  • Max. conductor Ø 32 mm

1000V voltage detection range for wide range of applications use

  • Measures up to 1000 V AC/DC voltage

  • Measures up to 10 A AC/DC current

  • Measure resistance up to 500 MΩ

  • Measure frequency up to 1000 kHz max

Safety Features

  • Rated for CAT III 1000 V for added protection

  • Rated for CAT IV 600 V for added protection

  • CE and CSA approved

Discover the Fluke 289/IMSK Industrial Multimeter Service Kit at Mektronics Australia – your trusted source for quality tools and equipment!

  • True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording give you the results you need.

  • Fluke-i400 AC 400A Current Clamp"¯turns the 289 into a clamp meter.

  • Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.

  • Fluke 289 True-RMS Data Logging Multimeter

  • Fluke i400 400A AC Current Clamp

  • TL71 Flexible Silicone Test Lead Set

  • AC175 Threaded Alligator Clip Set

Requires Fluke ir3000 FC Infrared Connector for Fluke Connect communication

Specifications for 289

Function

DC volts

Range / resolution

50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic accuracy

0.025%

AC volts

Range / resolution

50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic accuracy

0.4% (True-RMS)

DC current

Range / resolution

500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Basic accuracy

0.05%

AC current

Range / resolution

500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Basic accuracy

0.6% (True-RMS)

Temperature (excluding probe)

Range / resolution

-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)

Basic accuracy

1.0%

Resistance

Range / resolution

50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

Basic accuracy

0.05%

Capacitance

Range / resolution

1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF

Basic accuracy

1.0%

Frequency

Range / resolution

99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

Basic accuracy

0.005%

Connectivity

Optional infrared connector via Fluke ir3000 FC

Maximum voltage between any terminal and earth ground

1000 V

Battery type

6 AA alkaline batteries, NEDA 15A IECLR6

Battery life

100 hours minimum, 200 hours in logging mode

Temperature

Operating

-20 °C to 55 °C

Storage

-40 °C to 60 °C

Relative humidity

0 to 90% (0 to 37 °C), 0 to 65% (37 °C to 45 °C), 0 to 45% (45 °C to 55 °C)

Electromagnetic compatibility

EMC EN61326"“1

Vibration

Random vibration per MIL-PRF-28800F Class 2

Shock

1-meter drop per IEC/EN 61010"“1 3rd Edition

Size (H x W x L)

22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)

Weight

870.9 g (28 oz)

Multiple on screen displays

Yes

True-RMS AC bandwidth

100 kHz

dBV/dBm

Yes

DC mV resolution

1 μV

Megohm range

Up to 500 MΩ

Conductance

50.00 nS

Continuity beeper

Yes

Battery/fuse access

Yes/Yes

Elapse time clock

Yes

Time of day clock

Yes

Min-max-avg

Yes

Duty cycle

Yes

Pulse width

Yes

Isolated optical interface

Yes

Auto/touch hold

Yes

Reading memory

Yes

Log to PC

Yes

Interval/event logging

Yes

Logging memory

Up to 15,000 readings

Wireless connectivity (optional)
Specifications: Fluke i400 AC Current Clamp

Nominal current range

400 A

Continuous current range

1 A - 400 A

Maximum non-destructive current

1000 A

Lowest measurable current

1 A

Basic accuracy

2% + 0.06 A

(45-400 Hz)

(% reading + floorspec)

Useable frequency

5 Hz - 20 kHz

Output level(s)

1 mA/A

Safety

CAT IV 600 V, CAT III, 1000 V

Maximum voltage

1000 V AC rms from earth to ground, in compliance with EN61010

Warranty

1 year

Maximum conductor diameter

32 mm (1.25 in)

Maximum conductor size (busbar)

750 MCM

Output cable length

1.5 m (59 in)

Shrouded banana plugs

Yes
