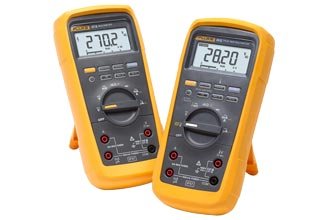

Fluke 28 II Rugged Digital Multimeter
SKU: FLU28II
28II
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke 28 II Rugged Digital Multimeter
The Fluke 28 II digital multimeter define a new standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95 % humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeters are built to work in the toughest environments.
- Measure up to 1000 V ac and dc
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 μF capacitance range
- Frequency to 200 kHz
- Extended ac voltage bandwidth– 15 Hz to 20 kHz
- Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Resistance, continuity and diode test
- Min/Max and average recording to capture variations automatically
- Peak min-max
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Discover the Fluke 28 II Rugged Digital Multimeter at Mektronics Australia – your trusted source for quality tools and equipment!
- IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
- Designed to withstand 3 meter drop (with holster)
- Hi resolution 20,000 count display mode
- True-rms ac voltage and current for accurate measurements on non linear signals
- Backlit keypad buttons allow for easy visibility in lowlit areas
- Large display digits and 2 level bright white backlight for increased visibility
- Reversible holster for added protection when not in use
- Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
- Long battery life (800 hours)
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- MSHA approval
| Accuracy Specifications | ||
| DC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.05% + 1 | |
| AC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.7% + 4 | |
| DC current | Range | 0.1 μA to 10 A |
| Accuracy | 0.2% + 4 | |
| AC current | Range | 0.1 μA to 10 A |
| Accuracy | 1.0% + 2 | |
| Resistance | Range | 0.1 Ω to 50 MΩ |
| Display counts | 6000 | |
| Capacitance | 1 nF to 9999 μF | |
| Frequency | 0.5 Hz to 199.99 kHz | |
| Temperature | -200°C to +1090°C | |
| Low pass filter (Measurement on VSD’s) | Yes | |
| Compliance | CAT IV 600 V , CAT III 1000 V | |
| IP rating | IP 67 | |
| Power | Three AA batteries | |
| Battery life | 800 hours | |
| General Specifications | ||
| Display | Bar graph/backlight | Yes/Yes |
| Data storage | Peak transient capture | 250 μS |
| Min/Max/Avg | Yes | |
| Reading hold | Yes | |
| Other features | Relative readings (zero) | Yes |
| Battery type | Three AA batteries | |
| Warranty and protection | Safety rating | CAT IV 600 V/CAT III 1000 V |
| Mine safety | MSHA Approved | |
| External protection | Rubber holster | |
| Drop test | 10 feet drop test | |
| Dustproof/waterproof | Yes, IP 67 rated | |
| Warranty | Limited lifetime | |
| Size (H x W x L) with holster | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) | |
| Weight with holster | 698.5 g (1.54 lb) | |
