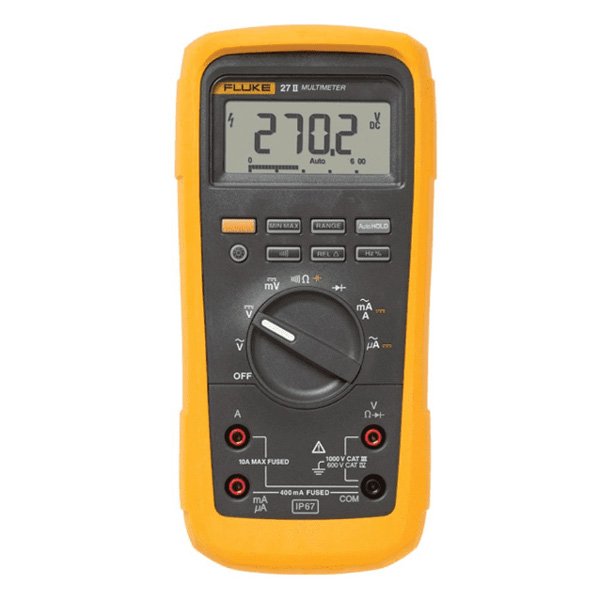

Fluke 27 II Rugged Digital Multimeter
SKU: FLU27II
27II
DESCRIPTION
Includes
Specifications
Shipping & Delivery
Fluke 27 II Rugged Digital Multimeter
Extremely Rugged, Water Resistant, O-Ring Sealed for Harsh EnvironmentsThe Fluke 27 combines accurate digital and analog measurement capability with extreme ruggedness and durability. They have cases twice as thick as any other DMM we build. They are totally sealed, waterproof to 3 feet (one meter) of water for one hour, tough enough to withstand contaminants, chemicals, accidental drops and severe electrical overloads. Designed to meet military specification of MIL-STD-28800 for Style A, Class 2 instruments, the Fluke 27 performs under the extremes of heat, cold, humidity, shock, electromagnetic interference, vibration and downright abuse.Features
- 3200-count digital display for accuracy and resolution
- 31-segment analog bar graph for fast peaking, nulling zero adjustments and capacitor checking
- Fast autoranging and manual ranging
- TouchHold® function captures and locks the measurement and automatically updates with the next measurement
- Conductance for high resistance measurement
- Min/Max and Relative modes
- Conforms to IEC 1010-1 CAT III
- MSHA Approved
Discover the Fluke 27 II Rugged Digital Multimeter at Mektronics Australia – your trusted source for quality tools and equipment!
- Holster
- Test Leads
- Alligator Clips
- Printed getting started manual
- CD ROM manual
- 3 AA batteries
| Accuracy Specifications | ||
| DC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.1% + 1 | |
| AC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.5% + 3 | |
| DC current | Range | 0.1 μA to 10 A |
| Accuracy | 0.2% + 4 | |
| AC current | Range | 0.1 μA to 10 A |
| Accuracy | 1.5% + 2 | |
| Resistance | Range | 0.1 Ω to 50 MΩ |
| Display counts | 6000 | |
| Capacitance | 1 nF to 9999 μF | |
| Frequency | 0.5 Hz to 199.99 kHz | |
| Compliance | CAT IV 600 V , CAT III 1000V | |
| IP rating | IP 67 | |
| Power | Three AA batteries | |
| Battery life | 800 hours | |
| General Specifications | ||
| Display | Bar graph/backlight | Yes/Yes |
| Data storage | Min/Max/Avg | Yes |
| Reading hold | Yes | |
| Other features | Relative readings (zero) | Yes |
| Battery type | Three AA batteries | |
| Warranty and protection | Safety rating | CAT IV 600 V/CAT III 1000 V |
| Mine safety | MSHA Approved | |
| External protection | Rubber holster | |
| Drop test | 10 feet drop test | |
| Dustproof/waterproof | Yes, IP 67 rated | |
| Warranty | Limited lifetime | |
| Size (H x W x L) with holster | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) | |
| Weight with holster | 698.5 g (1.54 lb) | |
